Track 100 Roof Roll Forming Machine Hydraulic Cutting For Stud, Stud and Track C purlin machine
Track 100 Roof Roll Forming Machine Hydraulic Cutting For Stud, Stud and Track C purlin machine Track 100 Roof Roll Forming Machine Hydraulic Cutting For Stud, Stud and Track C purlin machine

Track 100 Roof Roll Forming Machine Hydraulic Cutting For Stud, Stud and Track C purlin machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: C100
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 UNITS/MONTH
Contact Now

Detail Information
Name: High Speed Roof Tile Roll Forming Machine Hydraulic Pressing For Panel Weight: 5T Or As Per Request
Roller Material: 45# Steel Shaft Diameter: 75mm
Control System: PLC Control System Raw Material: Pre-painted Coil Sheets, Soft Material
Cutting Blade Material: Cr12, Heat Treatment Keyword: Roof Tile Roll Forming Machine
Highlight:

0.4mm roof tile roll forming machine

,

plc roof tile roll forming machine

,

hydraulic pressing tile roll forming machine

Product Description

Track 100 Roof Roll Forming Machine Hydraulic Cutting For Stud, Stud and Track C purlin machine



Machine components



No. Name Qty
1 1.5T Manual Decoiler 1 set
2 Feeding Device 1 set
3 Roll Former 1 set
4 Cutting Device 1 set
5 PLC Control System 1 set
6 Hydraulic Station 1 set
7 Output Table 2 sets




Main Technicial Parameter of Downpipe roll forming machine

No. Main parameter of gutter roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 195-200mm
3 Rollers 14rows
4 Dimensions 8.6*0.8*1.2m
5 Power 11+3kw
6 Thickness of the plate 0.8-2.0mm
7 Productivity 25m/min
8 Diameter of the roller 75mm
9 Weight About 5T
10 Voltage 415V 50Hz 3phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Processing precision Within 1.00mm
14 Control system PLC control
15 Side panel of machine 14mm
16 Main structure of the machine 450 H steel
17 Weight About 4.5 T




Profile Drawing



Track 100 Roof Roll Forming Machine Hydraulic Cutting For Stud, Stud and Track C purlin machine 0

Working flow



Decoiler—Feeding—Main Roll forming—Hydraulic Cutting—Output table

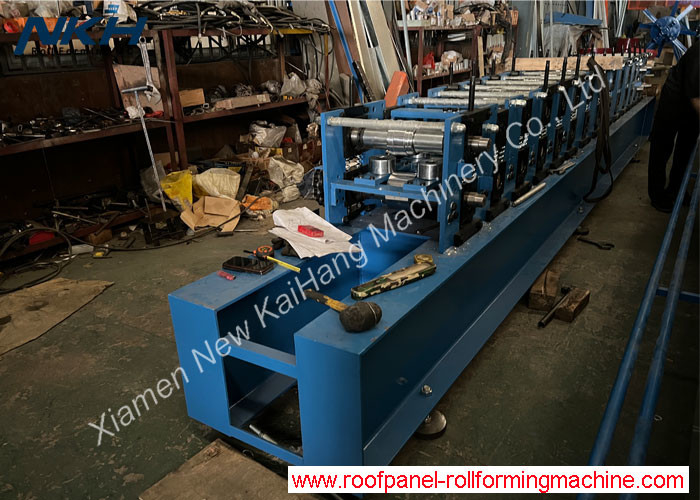

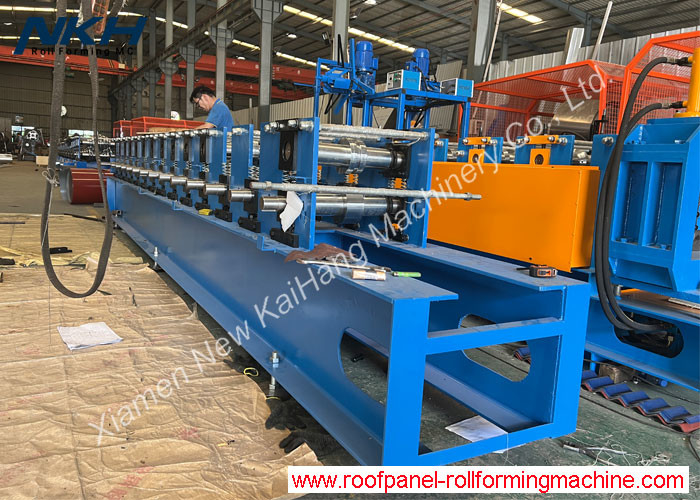

Track 100 Roof Roll Forming Machine Hydraulic Cutting For Stud, Stud and Track C purlin machine 1Track 100 Roof Roll Forming Machine Hydraulic Cutting For Stud, Stud and Track C purlin machine 2
