Batten Roll Forming Machine For Inner Roof Decoration Batten Roof Top Hat Panel
| Brand Name: | NKH ROLL FORMING MC |
| Model Number: | YX40-83 batten |
| MOQ: | 1 |
| Price: | negotiable |
| Delivery Time: | 90 WORKING DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
Detail Information
Place of Origin:
China
Certification:
CE/SONCAP/CSA/ISO
Model:
YX40-83
Material:
0.4-0.8 Mm GI
Roller:
45#steel/Based On Design
Shaft:
φ65/Based On Design
Motor:
7.5kw/Based On Design
PLC Control System:
Siemens
Packaging Details:
nude cargo for roll former, cartons for PLC, one machine/40,20 ft
Supply Ability:
10 sets/months
Product Description

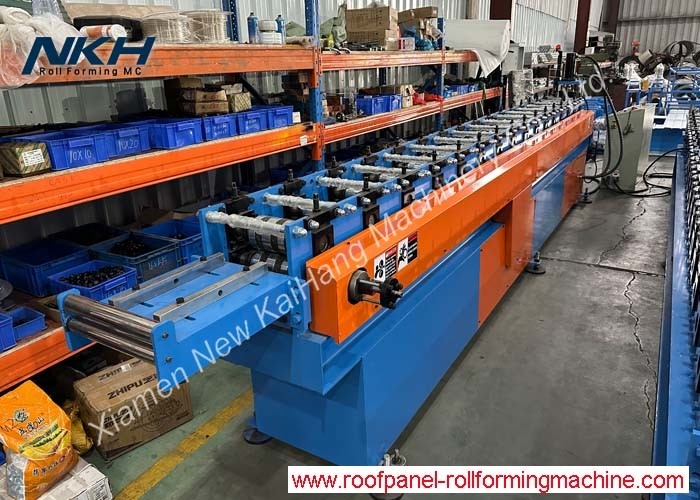

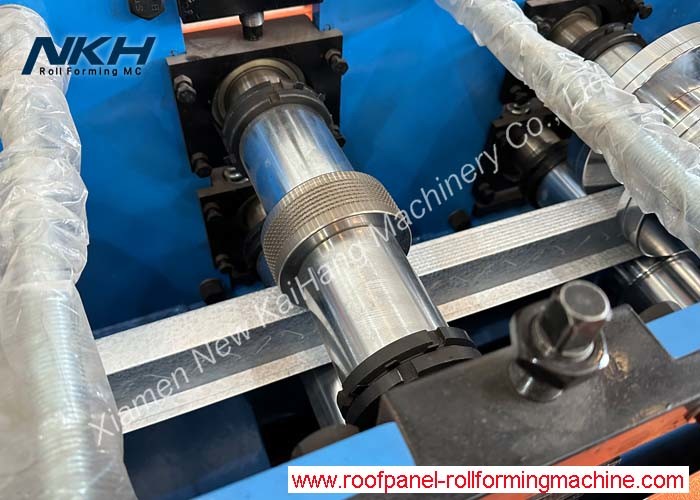

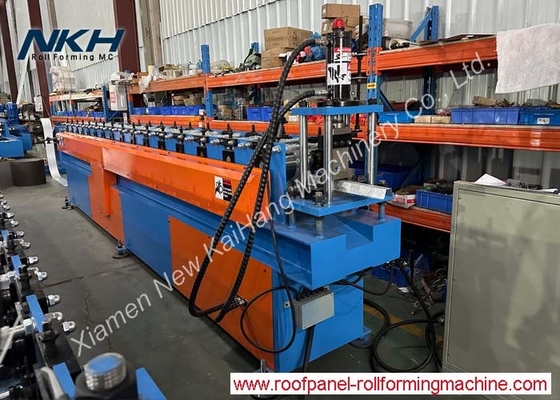

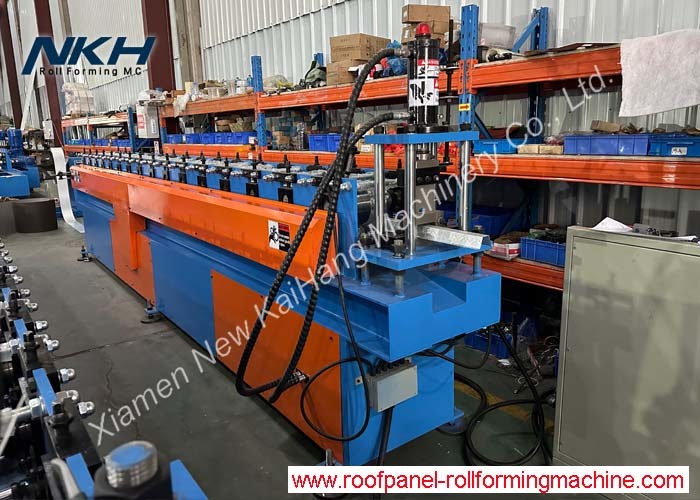

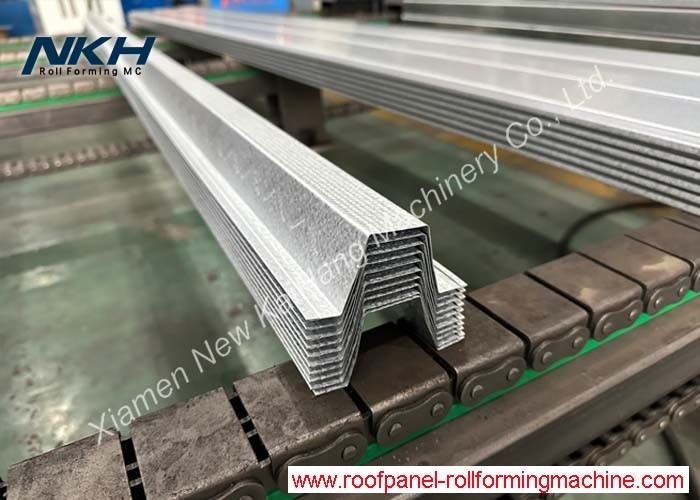

Roll Forming Machinery For Batten roof, Top hat panel
Machine’s Components:
| 1.5tons Manual un-coiler | 1set |
| Roll Forming System | 1set |
| Hydraulic Cutting Machine | 1set |
| Hydraulic Station | 1set |
| PLC Control Cabinet | 1set |
Working Flow of Roll Forming Machine:
Uncoiling the sheet---Guiding the sheet---Roll forming---Cutting the panel---Run out table
Technical Parameter:
| No. | item | Parameter(all is subject to our final design) | |
|
1
|
Suitable raw material | Type | Common galvanized & pre-painted steel |
| Yield strength | 550MPa(or other high strength steel) | ||
| Thickness(mm) | 0.4-0.8 | ||
| 2 | Manual uncoiler’s capacity | Max.1.5tons | |
| 3 | Forming speed(m/min) | About 18-20m/min | |
| 4 | Main motor power(KW) | 7.5kw | |
| 5 | Hydraulic power(KW) | 4kw | |
| 6 | Forming roller groups | Around 12-14 groups | |
| 7 | Raw material of forming roller | High quality No.45 steel | |
| 8 | Raw material of cutting blade | Cr12 with heat treatment | |
| 9 | controlling system | Siemens PLC & touch screen | |
| 10 | Suitable industrial voltage | According to your special requirement | |
