Galvanized Metal Roof Ridge Cap Roll Forming Machine PLC Control Corner Flashing Machine

Product Details:
Place of Origin: CHINA
Certification: CE/SONCAP/CSA
Model Number: R105.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 UNITS/MONTH

Detail Information

Name: Corner Flashing Roll Forming Machine, Thickness: 0.4mm-0.6mm
Control System: PLC Control System Shaft Material: 45#
Cutting Blade Material: Cr12, Heat Teatment Roller Material: 45#, CNC, Hard Chrome Coated
High Light:

ridge cap roll former


roof tile roll forming machine

Product Description

Corner flashing roll forming machine, galvanized ridge cap roll forming machine


Brief Introduction:

So many machine suppliers have designed and built Roof ridge cap roll forming machine for making ridge caps or valley flashings installed along the ridge line of a sloped roof or in valleys.

During the installation of metal roof panels, there are always roof flashing required. Those flashing installed along the ridge line to protrude from the roof of a building to deflect water away from seams or joints are called roof ridge cap.

Generally, a roof flashing roll forming machine consists of a manual de-coiler, entry/feeding guide, roll forming system, hydraulic system, hydraulic pressing equipment optional, cutting system, control system and run out tables.


Quick Detail:

  1. Thickness : 0.4-0.6mm
  2. Material : pre-painted steel
  3. Input width :310 mm
  4. Material weight : 3Tons
  5. Coil inner diameter : 480mm
  6. Driven way: by driven motor
  7. Cutting way: no waste cut, stop to press, stop to cut
  8. Cutting tolerance : ±1mm

Machine list:

  1. 3T*600mm hydraulic & driven un-coiler
  2. Roll former
  3. Hydraulic cutting device
  4. Run out rack
  5. PLC control system

Description/Technical Parameter details of complete line:

  • 3TX600mm Hydraulic Un-Coiler

               Hydraulic system for expansion coil-inner-hole with 4 palms

               Link-connect expanding system

               Pump power=1.5KW

               Load capacity=3Ton

               Coil Inner – diameter =451-530mm

Coil outer-diameter=Max.1500mm

Coiler Width=Max.600mm

Driven motor as optional

  • Entry bench and manual pre-shearing device
  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet
Thickness 0.4mm-0.6mm
Strip width 310mm
Carriage Frame design Wall-plate-frame-design
Roll forming stations 14 stations
Roller material 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 7.5Kw with reducer
Rolling speed of roll former 12-15m/min
Hydraulic group power

11 Kw, stop to press, stop to cut

No waste after cut off

Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or as requirements
Major Color of Machine Painted RAL 5015(Blue) or as requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, 3 units

Profile Drawing/Layout/Equipment reference pictures:

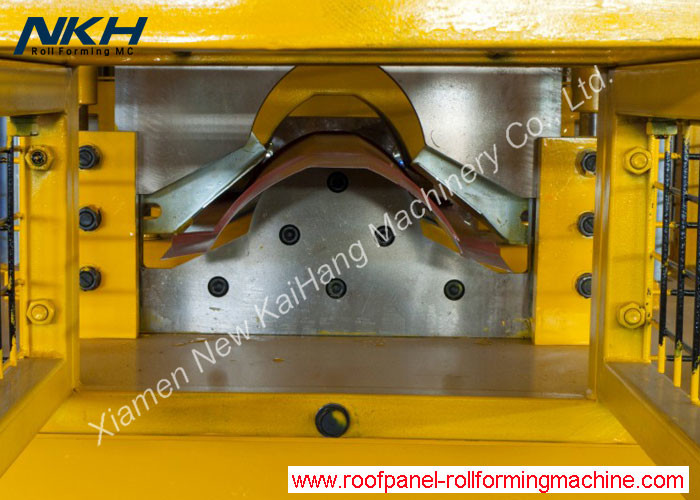

Galvanized Metal Roof Ridge Cap Roll Forming Machine PLC Control Corner Flashing Machine 0Galvanized Metal Roof Ridge Cap Roll Forming Machine PLC Control Corner Flashing Machine 1
