Metal Roof Ridge Cap Roll Forming Machine
Created with Pixso. V Shape Roll Forming Machine V24" Corner Flashing Forming Machine Stacking Automatically
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
V24" Roll Forming Machine,
Thickness:
0.35-0.55mm
Shaft Material:
45# Steel
Roller Material:
45# Steel, CNC, Hard Chrome Coated
Cutting Blade Material:
Cr12, Heat Teatment
Control System:
PLC Control System
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
5 UNITS/MONTH
Product Description

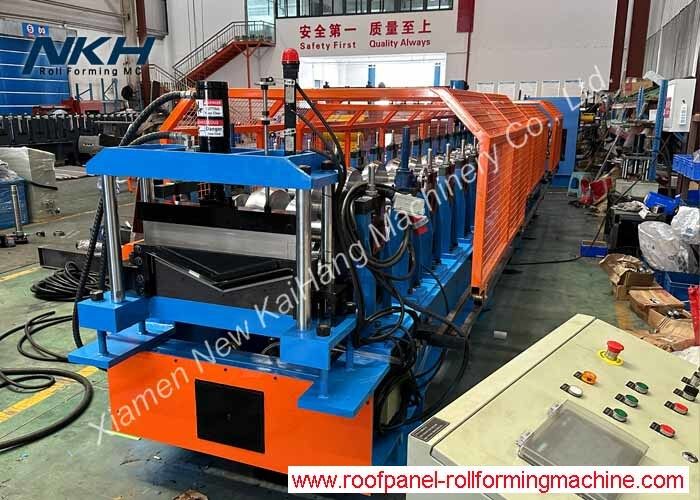

V Shape Roll Forming Machine V24" Corner Flashing Forming Machine Stacking Automatically 0

V24" Roll Forming Machine Corner Flashing Machine Stacking Automatically



Quick Detail:

  1. Thickness : 0.35-0.55mm
  2. Material : Pre-painted steel, GI
  3. Input width: 610 mm
  4. Material weight : 4Tons
  5. Driven way: by driven motor
  6. Cutting way: no waste cut, stop to cut
  7. Cutting tolerance : ±1mm

Machine list:

  1. 4Tons*650mm Hydraulic Un-coiler
  2. Roll forming machine
  3. Hydraulic cutting device
  4. Run out rack
  5. PLC control system

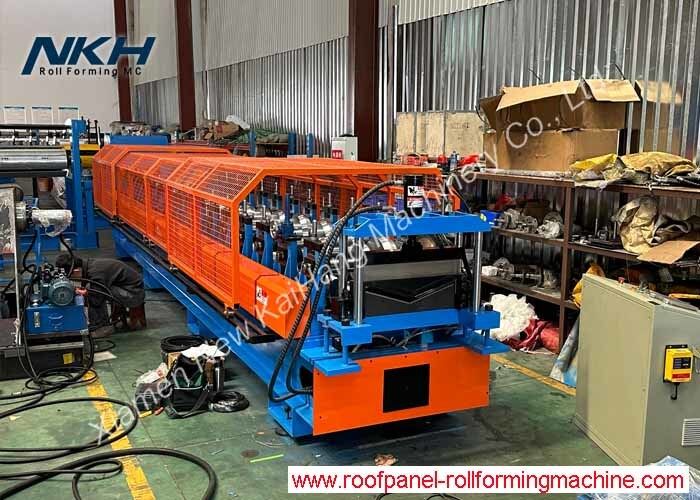

V Shape Roll Forming Machine V24" Corner Flashing Forming Machine Stacking Automatically 1

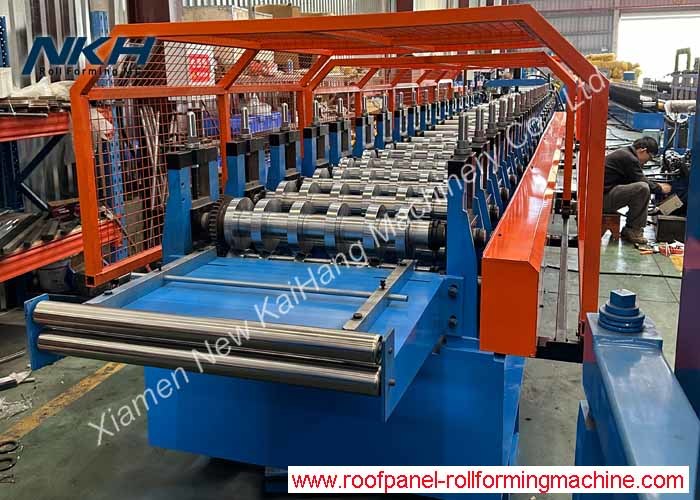

V Shape Roll Forming Machine V24" Corner Flashing Forming Machine Stacking Automatically 2

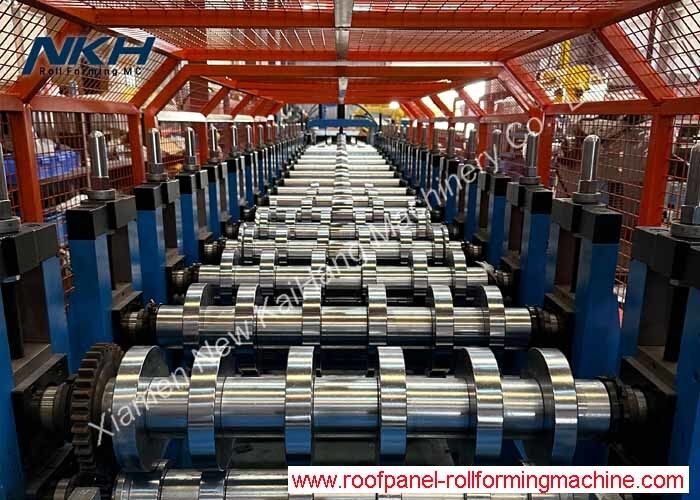

V Shape Roll Forming Machine V24" Corner Flashing Forming Machine Stacking Automatically 3
