Valley Cold Roll Forming Machine , Roof Flashing Profile Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: V3
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Cold Roll Forming Equipment Coil Weight: 1.5T Or As Request
Raw Material: GI Sheets, G350 Condition: New
Tile Type: To Be Formed By Presser Warranty: 1 Year
High Light:

ridge cap roll former

,

metal tile forming machine

Product Description

Valley cold rolled machine, angle flash panel, roof flashing profile making machine



Features:

This valley shape is with short length for it is detailed functions in roofing, when in production how to produce the production speed is the main major, we adopt to use the presser, and one complete pressing & cutting dies to form and cut by presser to improve the speed in large degree

Machine list:

  1. 1.5T*300mm driven un-coiler with leveling
  2. Servo feed in device
  3. Presser
  4. Professional pressing dies
  5. PLC control system

Description/Technical Parameter details of complete line:

  • 1.5TX300mm driven de-coiler with pre-leveling

3Kw driven motor to push the sheets

And suit with Line speed of presser 25mpm

Pre-leveling device equipped with the un-coiler

2 in 1 design

  • Roll forming machine with cutting details as below table :
Suitable roll forming material GI sheets, 350Mpa
Thickness 0.3mm-0.4mm
Coil input width 203mm
Presser capacity 25T
Die material SKD11, heat treatment
Press stroke 80-100 time/min
Electric Voltage Standard 380V/50Hz/3PH or as requirements
Major Color of Machine Painted RAL 5015(Blue) or as requirements
  • PLC Control System

Control cabinet 1 for servo feed in

Control cabinet 2 for complete line

  • Power round run out rack

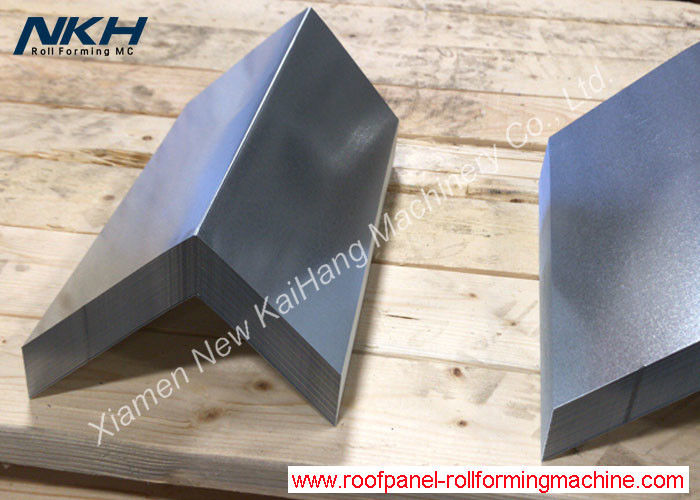

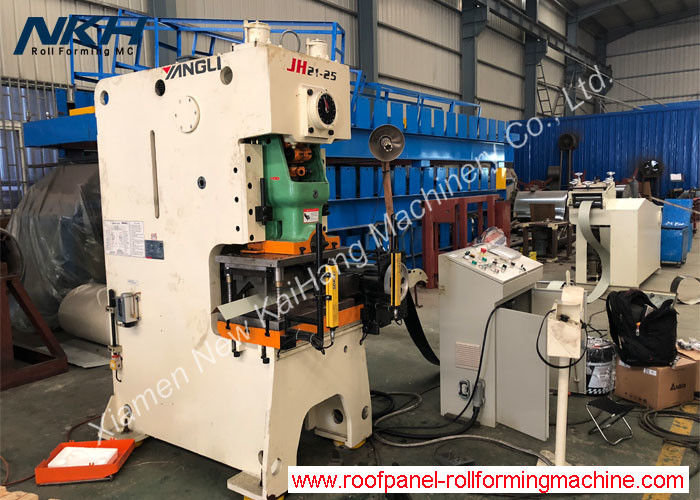

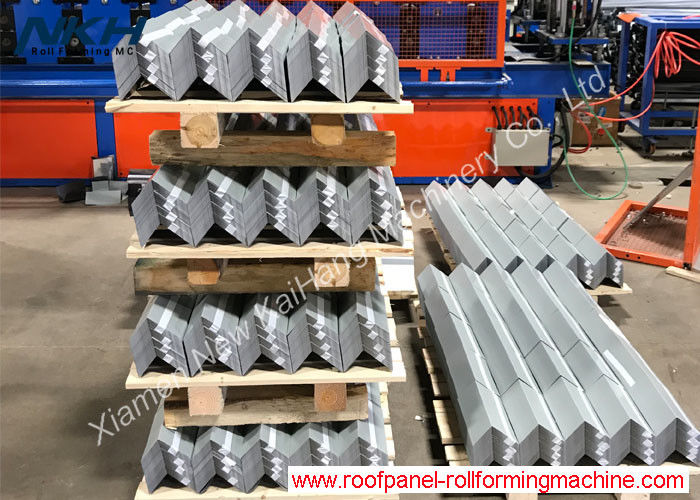

Profile Drawing/Layout/Equipment reference pictures:



Valley Cold Roll Forming Machine , Roof Flashing Profile Making Machine 0
