Heavy Gauge Seamless Rain Gutter Machine For 0.4-0.6mm Thickness Galvanized Sheets

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX160-190
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Coil Weight: 3T Or As Request Control System: PLC Control System
Roller Material: 45# Steel, CNC Lathes, Hard Chrome Coated Raw Material: Alu-Zinc Sheets, GI Sheets, 350Mpa
Shaft Material: 45#, High Precision Cutting Blade Material: Cr12, Heat Treatment
High Light:

metal tile forming machine

,

roof tile roll forming machine

Product Description

Heavy gauge rainpro seamless gutter machine



Quick Detail:

  1. Thickness : 0.4-0.6mm
  2. Material : G550 full hard Galvanized Sheets
  3. Input width :610mm
  4. Material weight : 3MT
  5. Coil inner diameter : 510 mm
  6. Driven way: by 5.5Kw driven motor
  7. Cutting way: 7.5Kw hydraulic pump motor
  8. Cutting tolerance : ±1mm

Application:

A gutter roll forming machine work with the flashing and downpipe and end cap and support fixing as a water roof systems

We sold this heavy gauge gutter machine to Indonesia before, we adopt the pre-punching device to punch the holes for connecting part with the downpipe and end cap also possible

High Production Roll Forming Machine for Gutter, forming machine, water gutters cold roll forming machinery, greenhouse gutter forming machine, greenhouse gutter making machine, gutter could roll forming machine, greenhouse gutter roll forming line, greenhouse gutter making machine, green house gutter rolling machine.

Machine list:

  1. 3T*600mm hydraulic un-coiler
  2. Hydraulic pre-punching device
  3. Roll forming machine
  4. Hydraulic cutting device
  5. Run out table
  6. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

  • 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Pump power=1.5KW

Load capacity=3 Ton; Coil Inner – diameter =451-530 mm

Coil outer-diameter=Max. 1500 mm

Coiler Width=Max. 600 mm

  • Hydraulic pre-punching device

It is to punch the holes to connect the downpipe

It share the same hydraulic group with post cutting device

  • Roll forming machine details as below table :
Suitable roll forming material galvanized steel sheet, 55Mpa
Thickness 0.4mm-0.6mm
Coil input width 610mm
Carriage Frame design Wall-plate-frame-design
Rolling mills forming stages 18 stages
Material of forming roller

45# steel, CNC lathes, Hard Chrome Coated

Option : with roller heat treatment

Shafts Diameter Φ75mm
Main motor power 7.5Kw with reducer
Rolling speed of roll former 15-20m/min without punching
Hydraulic group power 3.0 Kw
Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or as requirements
Major Color of Machine Painted RAL 5015(Blue) or as requirements

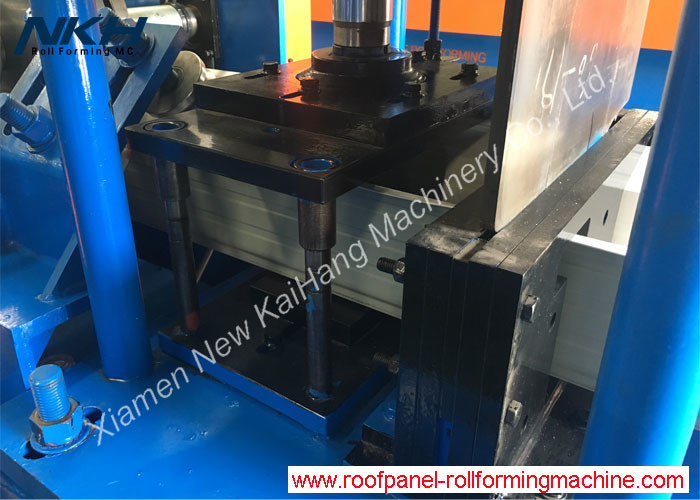

  • Hydraulic Cutting Device

Stop to cut, Post cut, there is waste

Hydraulic group, pump motor =4.0KW

Cutting tool material: Cr12, Heat treatment

  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, rolled type, 4 meter long

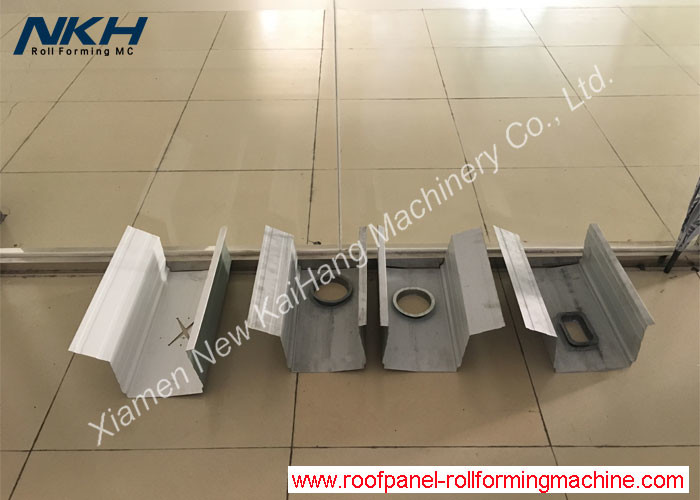

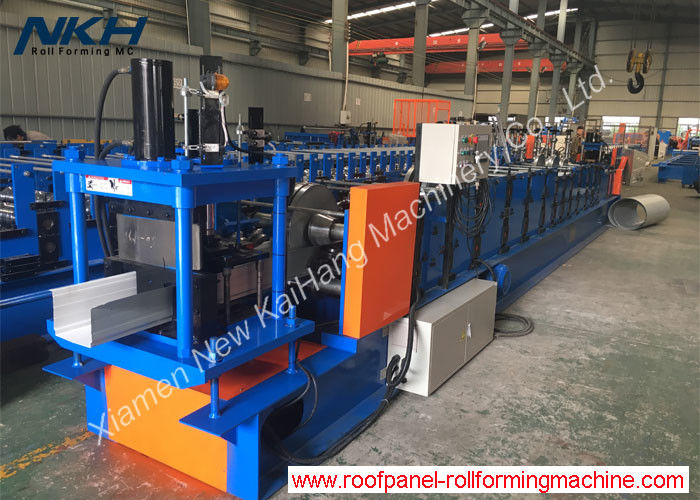

Profile Drawing/Layout/Equipment reference pictures:
