1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: 1.5T*300MM
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES WITH ROLL FORMER IN 20FT/40FT CONTAINER
Delivery Time: 10 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Condition: New Use: Roof/wall
Production Capacity: 12-15m/min Color: Client's Request
Warranty: 12months Tile Type: Work With Roll Forming Machine/building Material Machinery
High Light:

light gauge cut to length line

,

cut to length line machine

Product Description

Trim and flashing driven un-coiler rack with leveling, 2 in 1 de-coiler for roof panel roll forming machine



Application:

Driven de-coiler with straightening or leveling is working with the presser and roll former for profile with high precision and large quantity holes with fast speed for efficient production



Quick Detail:

  1. Thickness : 0.4mm-0.8mm, 0.8-1.2mm
  2. Material : GI,PPGI
  3. Input width : < 300mm
  4. Material weight : 2MT
  5. Rotation way: by driven motor
  6. Coil inner diameter : 470-510mm

Description/Technical Parameter details of the de-coiler

Coil inner hole expand by manual, four palms

Motorized driving coil rotation, auto stop/start control

Load capacity=2Ton

Coil Inner – diameter: 450-530mm

Coil outer-diameter=Max.1200 mm

Coiler Width=Max. 300 mm

Pre-straighten device share in the same driving motor of un-coiler

7 shafts for straightening the sheet

Solid shaft, made from GCr15, hart chrome-coated

Features:

The de-coiler is touch the roll former speed by limit switch

To start/stop automatically

Suit with 15-18 mpm roll former

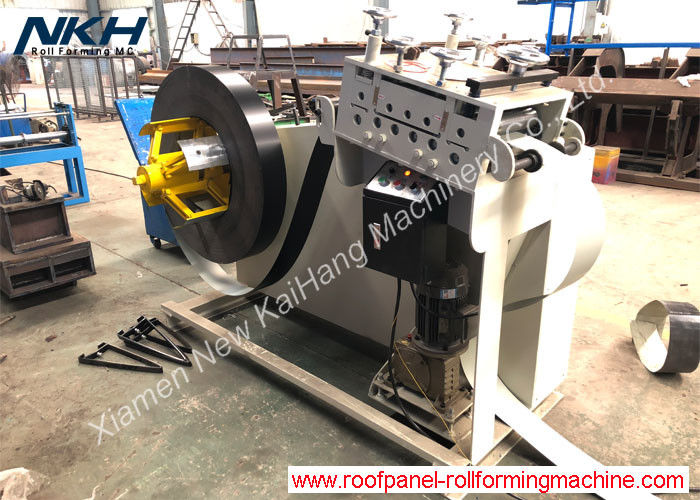

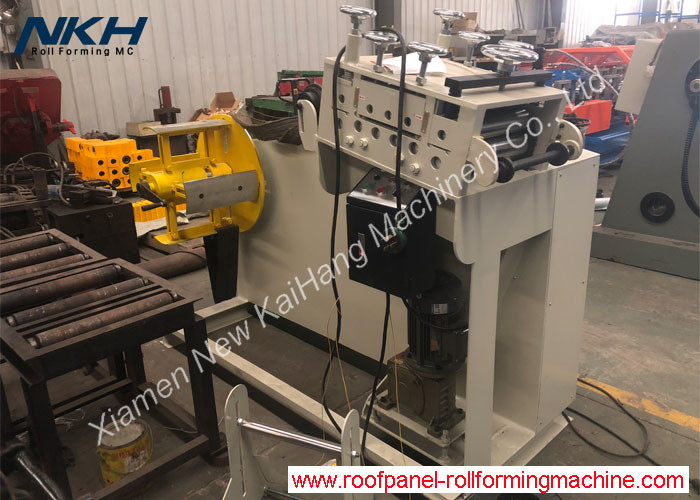

Profile Drawing/Layout/Equipment reference pictures:



1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling 01.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling 11.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling 2
