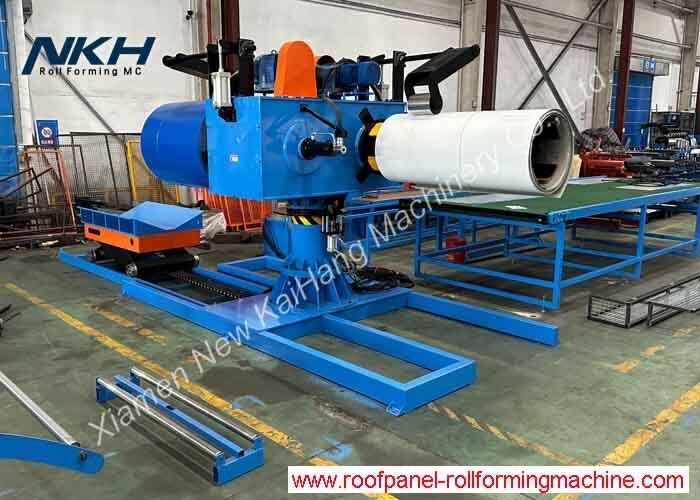

5Tons Double-head Hydraulic Un-coiler with Loading Car Hydraulic Decoiler with Coil Car Twin Head Decoiler

Product Description

This double-head hydraulic uncoiler is equipped with a loading trolley. Adopting hydraulic drive, it features stable operation and large load capacity. The double-head design enables alternate feeding for uninterrupted production. The supporting loading trolley realizes fast coil handling, positioning and loading, saving time and labor. It is widely applicable to galvanized coil, color coated coil and other metal coil processing lines, such as slitting, cut-to-length and stamping production lines.

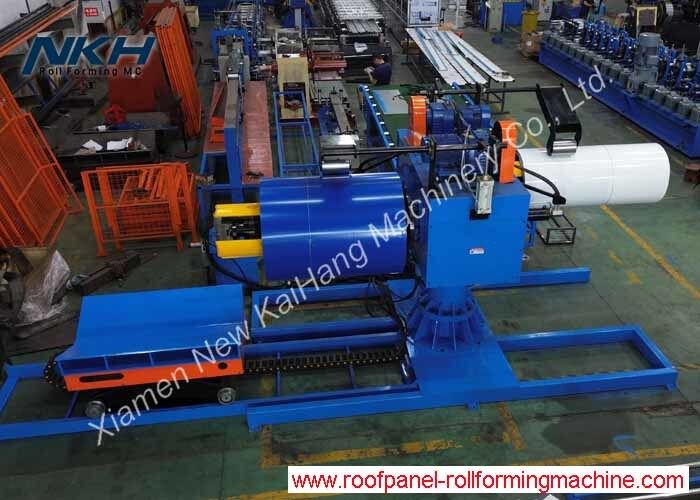

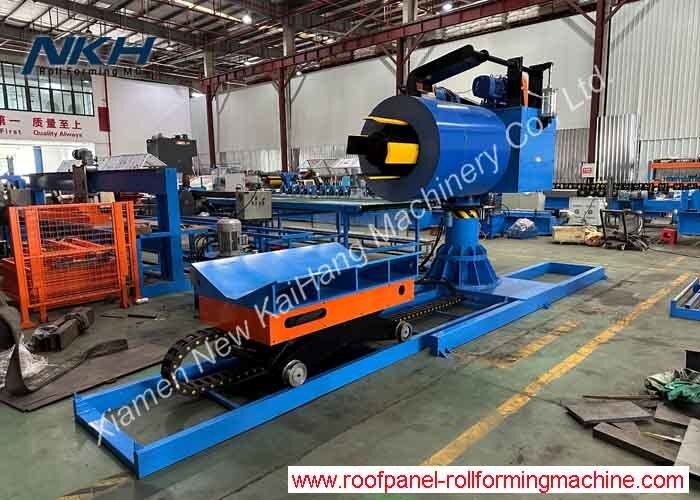

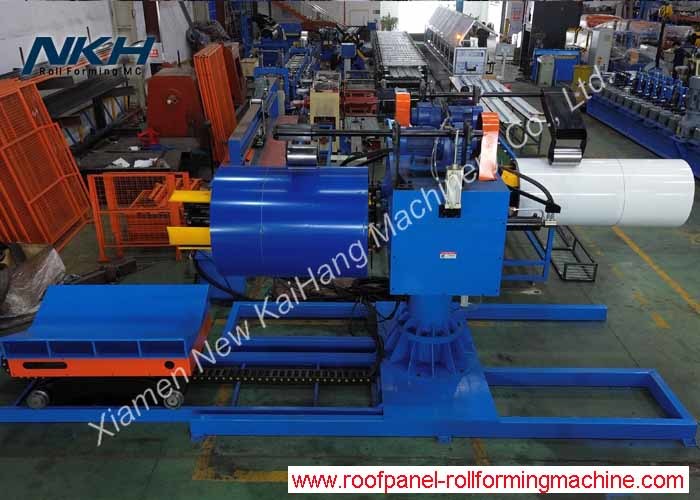

5Tons Double-head Hydraulic Un-coiler with Loading Car

Hydraulic system expand coil inner hole

Double sides motorized running un-coiler, with frequency speed control

Twins coils, Load capacity= Max.5 Ton per coil

Taper wedge expand type with 4 palms

Coil inner–diameter=510+/-30mm

Coil outside-diameter=1600mm

Coil Width= MAX.1600mm

Snubber arms on top for each coil, controlled by two separated cylinders

Up/Down stroke of Coil Car: Max. 350mm

Forward/Back stroke of the Coil Car: Max. 2000mm
