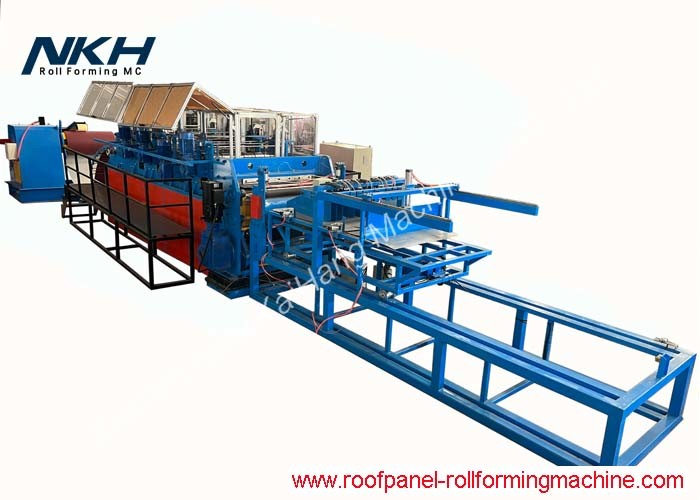

0.3-1.0mm Metal Slitting Line for Galvanized Stainless Steel Coils

Product Description

Slitting line and cut to length machine for 1.0mm metal sheets

Quick Detail:

1. Thickness : 0.3-1.0mm
2. Material : GI, PPGI, or Stainless steel, Aluminum
3. Slitting strips: Max.8 strips/time
4. Slitting speed : Max.30meters/min
5. Material weight : 5Mt normally
6. Coil inner diameter : 508mm
7. Cutting tolerance : ±1mm

Application:

Metal sheets or strips suppliers always need slitting and cut to length machine line for the production of metal sheets with different widths or lengths from GI, PPGI, or Stainless coils in large quantities.

GI, PPGI or Stainless coils are always brought to make wide metal sheets, like roll formed roofing or wall panels, while there are many occasions narrow steel strips are necessary, for example, the production of stud and tracks, roof battens or angle steel bars is always made from narrow steel strips.

A steel mill most of time produces only wide steel coils, and steel or metal fabricators always use a slitting and cut to length machine line to manufacture steel strips with different widths or metal sheets with fixed lengths.

Machine list:

1. 5Tons hydraulic De-coiler
2. Simple pre-leveling device

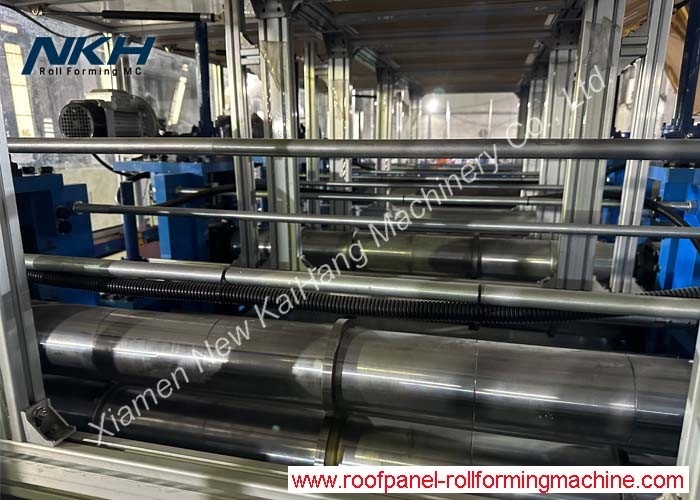

3. Slitting device
4. Cutting device

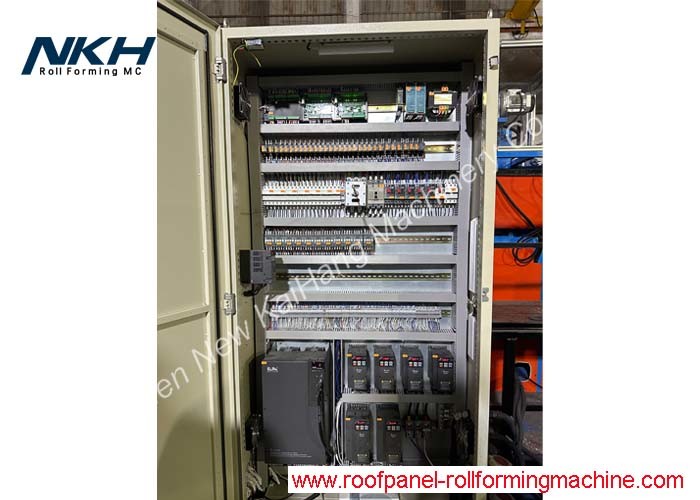

5. PLC control system

Description/Technical Parameter details of complete line:
