Simple Double Layer Slitting Machine for PPGL / GGPI / GI Material
Simple Double Layer Slitting Machine for PPGL / GGPI / GI Material Simple Double Layer Slitting Machine for PPGL / GGPI / GI Material Simple Double Layer Slitting Machine for PPGL / GGPI / GI Material Simple Double Layer Slitting Machine for PPGL / GGPI / GI Material

Simple Double Layer Slitting Machine for PPGL / GGPI / GI Material

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: 0.3-1.0mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation

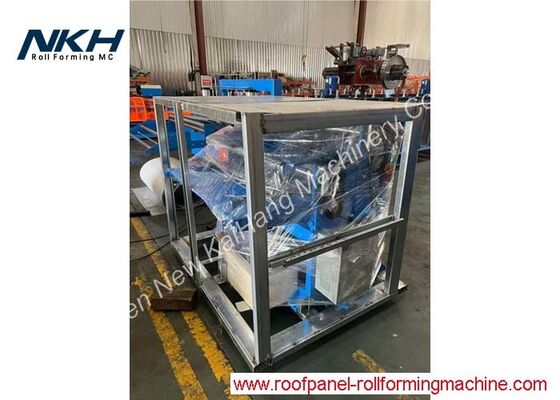

Packaging Details: STEEL OR WOODEN BOX FOR LCL SHIPMENT
Delivery Time: 30 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH
Contact Now

Detail Information
Name: Double Layer Slitting Machine Raw Material: PPGI, GI, SUS, ALUMINUM
Thickness: 0.3-1.0mm Power: 3Kw
Quantity: 3 Strips/time Or Customized Width: Max. 1250mm

Product Description

Simple double layer slitting machine, economic design, PPGL/ GGPI/ GI, simple slitting machine



Quick Detail:

  1. Thickness : 0.3-1.0mm
  2. Material : GI, PPGI, or Stainless steel, Aluminum
  3. Production: Feed in piece by piece
  4. Strips:3 strips/time
  5. Slitting rollers:Cr12, heat treatment
  6. PLC control cabinet: Inverter can be optional

Brief Introduction:



Metal sheets or strips suppliers always need slitting and cut to length machine line for the production of metal sheets with different widths or lengths from GI, PPGI, or Stainless coils in large quantities.

GI, PPGI or Stainless coils are always brought to make wide metal sheets, like roll formed roofing or wall panels, while there are many occasions narrow steel strips are necessary, for example, the production of stud and tracks, roof battens or angle steel bars is always made from narrow steel strips.

Sometimes the required quantity is only few pcs, then the simple slitting machine is suitable to slit few meters only.



Description/Technical Parameter details of complete line:

  • Details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 0.4mm-1.0mm
Coil width Max. 1250mm
Slitting material Cr12, heat treatment
Motor 3KW
Control way Frequency speed control or no inverter
Electric Voltage Standard 415V/50Hz/3PH or as requirements
Major Color of Machine Painted RAL 5015(Blue) or as requirements
  • Simple control cabinet

FW/REV/EMERGENCY/STOP

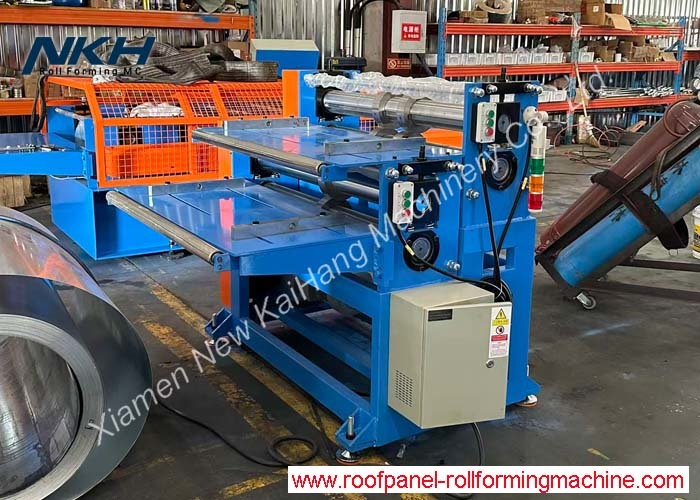

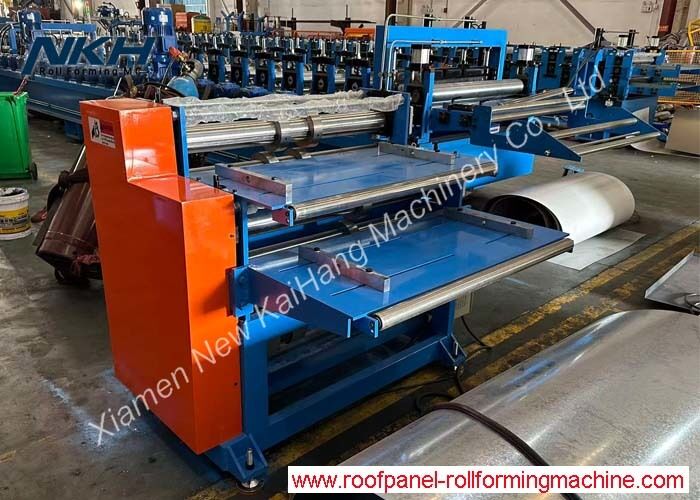

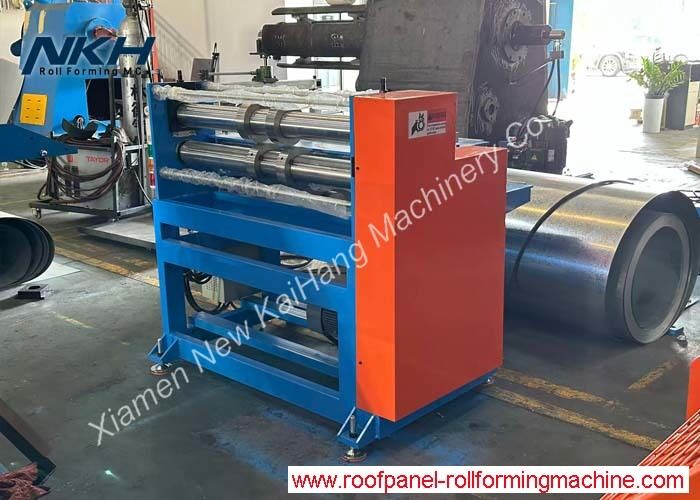

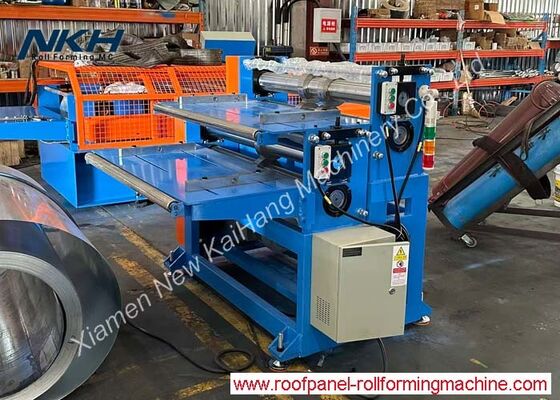

Profile Drawing/Layout/Equipment reference pictures:



Simple Double Layer Slitting Machine for PPGL / GGPI / GI Material 0
