Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge Cap

Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge Cap

Product Details:
Place of Origin:	China
Brand Name:	NKH ROLL FORMING MC
Certification:	CE/CSA/SONCAP
Model Number:	YX181-238 Ridge cap
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	nude cargo for roll former, cartons for PLC, one machine/40,20 ft
Delivery Time:	45 working days
Supply Ability:	5 sets/months

Contact Now

Detail Information
Material:	PPGI/PPGL, G550	Thickness:	0.25-0.5mm
Guarantee:	1 Year	Roller Material:	45#
Shaft:	75mm	Hydraulic Action:	Punching And Cutting
Hydraulic Group:	7.5KW
Highlight:	11kw Ridge Cap Roll Forming Machine , Ridge Cap Roll Forming Machine , Full Automatic Roll Forming Machine

Product Description

Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge cap

1. Technical parameters:

Raw material
material spec	sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet	0.25-0.5mm
Machine details

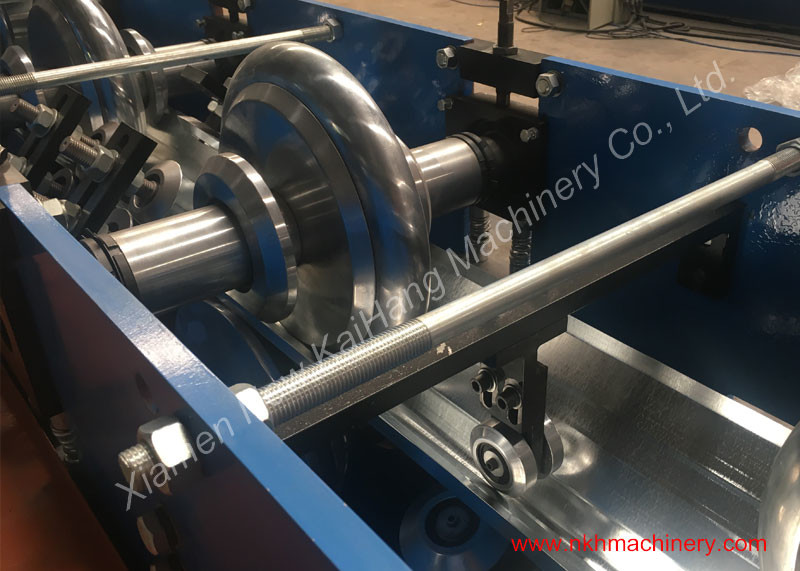

roller material	High grade NO. 45 forged steel with 0.03mm hard chrome plating
shaft material	High grade NO. 45 carbon wrought steel
cutting blade	Cr12 mould steel with quenched treatment
diameter of shaft	75mm

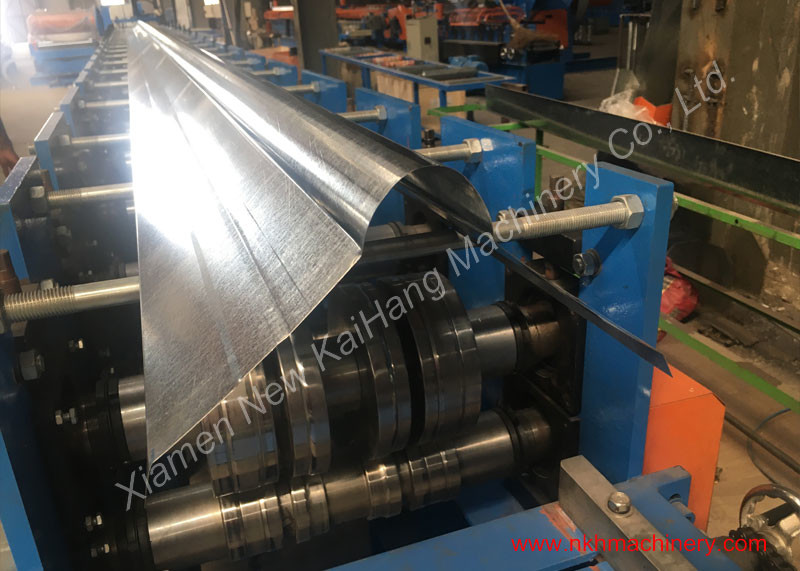

forming steps	18 rows
productivity	15m/min, punch not included
hydraulic station power	7.5 KW
hydraulic pressure	10-12MPa
controlling system	Siemens PLC computer control
material of cutting table	Cr12 mould steel with quenched treatment
appearance size	8500mm1150mm1510mm
hydraulic oil	40# hydraulic oil
Electric tension	380V 50 Hz 3 Phase or as your requirements

Electronic control system

Description

The machine used well-known brand PLC control technology. To realize the automatic machine
The system to provide friendly man-machine interface, It can be set batch, workpiece length and number, etc.
Encoder count, count and length with function.
PLC touch screen adopt domestic famous brands.

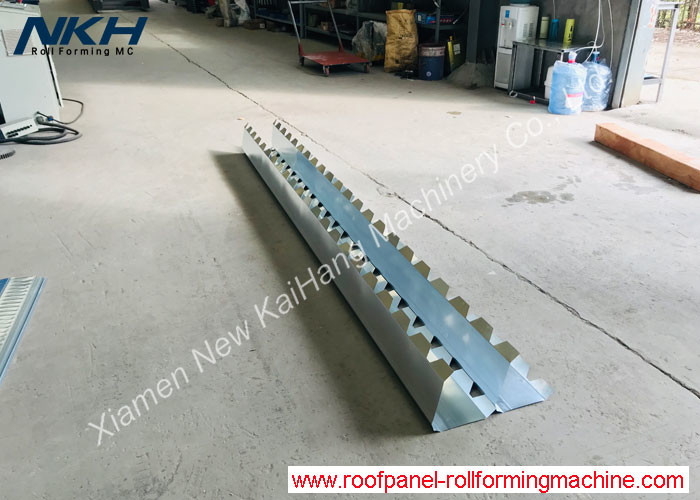

2. Profile Drawings

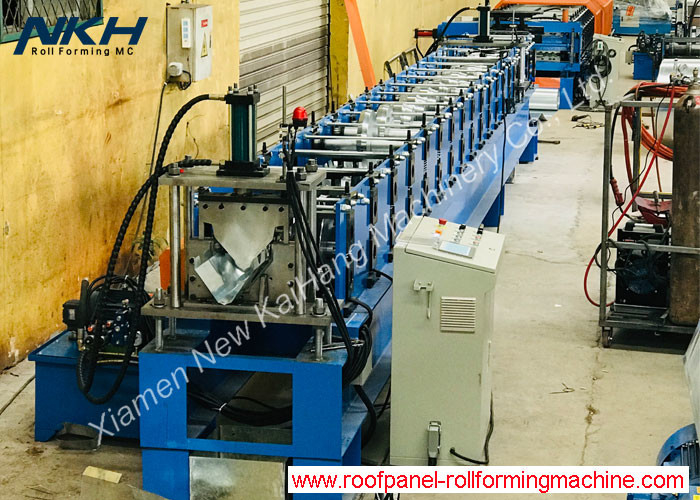

Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge Cap 1

3. La Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge Cap 2

Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge Cap 5
