Sheet Door Frame Metal Cold Roll Forming Making Machine with Hole Punching function, Guide Door Rails
|
Sheet Door Frame Metal Cold Roll Forming Making Machine with Hole Punching function, Guide Door Rails
| Brand Name: | NKH MACHINERY |
| Model Number: | YX15.7-78.8 |
| MOQ: | 1 UNIT |
| Price: | negotiation |
| Delivery Time: | 40 WORKING DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
Roof Tile Roll Forming Machine
Roller Material:
45# Steel
Raw Material:
Pre-painted Coil Sheets, Soft Material
Shaft Diameter:
75/95mm
Cutting Blade Material:
Cr12, Heat Treatment
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
5 UNITS/MONTH
Highlight:
1219mm Roof Tile Roll Forming Machine
,Building Material Roof Tile Roll Forming Machine
,1219mm metal tile roll forming machine
Product Description

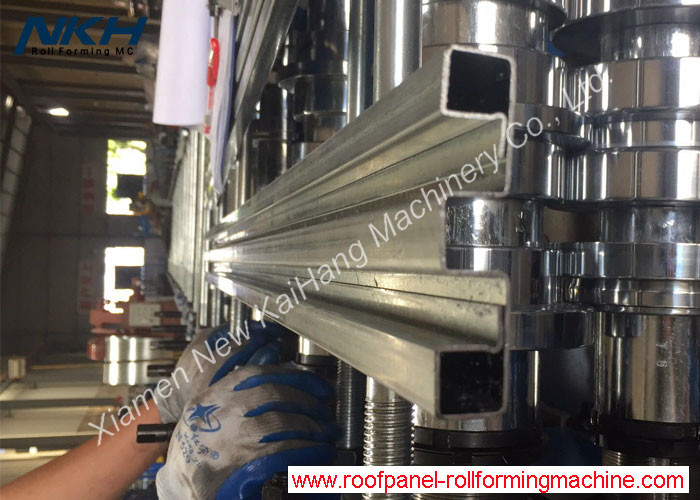

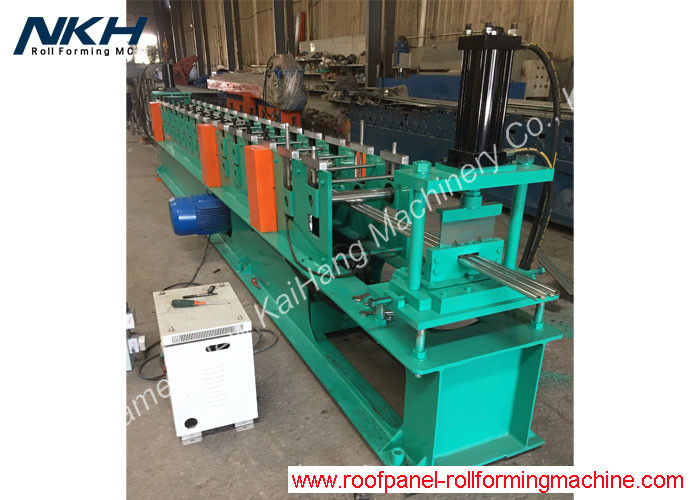

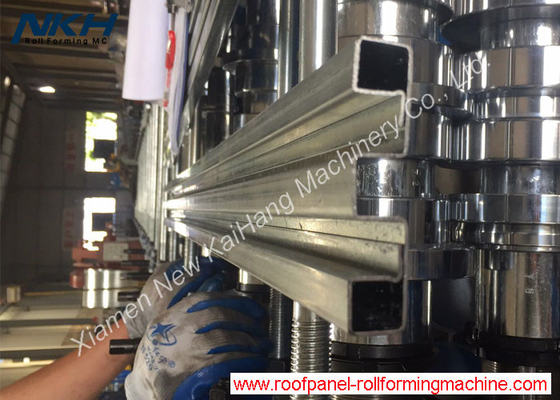

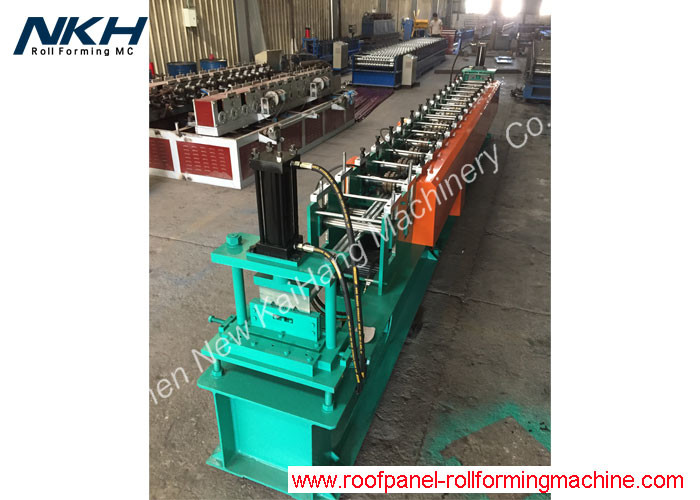

Sheet Door Frame Metal Cold Roll Forming Making Machine with Hole Punching function, Guide Door Rails
1. Steel door frame roll forming machine application
Steel Door Frame Roll Forming Machine is cold-rolled into various wave-shaped pressed plates.
It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior
and exterior wall decoration of large-span steel structures.
It has the characteristics of light weight, high strength, rich color, convenient and quick construction,
anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.
2. Steel door frame roll forming machine by customized parameters
| No. | Item | Description |
| 1 | Coil width | TBC mm |
| 2 | Rolling speed | 12-15m/min(not include cutting & punching time) |
| 3 | Rolling thickness | 1.0mm |
| 4 | Control system | PLC (Panasonic) as list in the note |
| 5 | Un Coiler | one station |
| 7 | Punching | 01 set |
|
8
|
Shaft Material and DIA | ￠75mm, material is 45# forge steel |
|
9
|
Roller stations | About 22 stations (according the final design) |
|
10
|
Roller material | Gcr15, HRC55-60 surface coated with chrome |
| 11 | Post cutting | Hydraulic cutting after roll forming |
| 12 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
|
13
|
Maim Motor Power | 11kw |
|
14
|
Hydraulic Station Power | 5.5kw |
|
15
|
Hydraulic Pressure | 12-16Mpa adjustable |
|
16
|
Sturcture Of The Stations | Wire-electrode cutting |
|
17
|
Electric Source | 220V, 60HZ,3 phase According to customer's require |
|
18
|
Way Of Drive | By chain |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
