Door Frame Roll Forming Machine
Created with Pixso. Twin side door frame roll forming machine with CE Double side roll forming machine Door frame
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
Door Frame Roll Forming Machine
Raw Material:
GI Sheets, 1.2mm
Coil Weight:
1.5T Or As Per Request
Roller Material:
GCr15, Heat Treatment
Cutting Blade Material:
Cr12, Heat Treatment
Warranty:
12months
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
10 UNITS/MONTH
Product Description

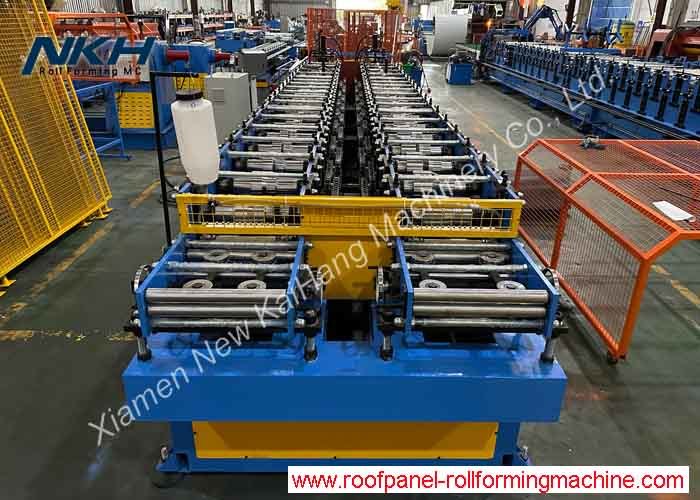

Twin side door frame roll forming machine with CE Double side roll forming machine Door frame 0

Twin Side Door Frame Roll Forming Machine



Quick Detail:

  1. Thickness : 1.2mm
  2. Material : GI, 275Mpa
  3. Input width : 113/208mm
    1. Material weight: 1.5tons
    2. Driven way: by 7.5kw driven motor
    3. Cutting way: stop to cut, there is waste after cut-off
    4. Cutting tolerance : ±1mm

Feature: One machine with two profiles, designed for easy operation and cost efficiency.

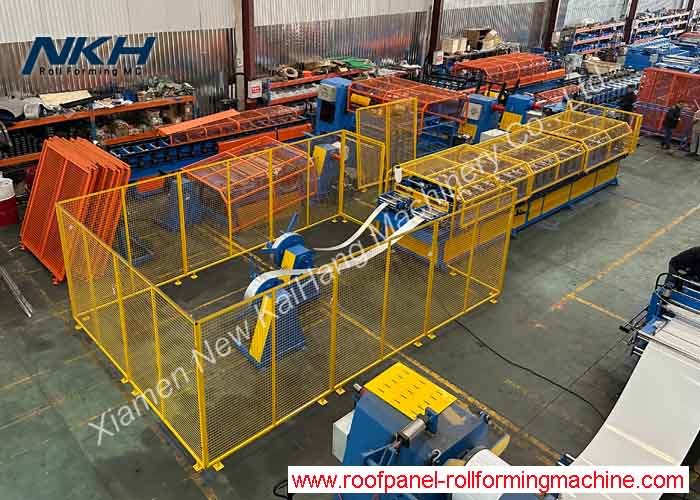

Machine list:

  1. 1.5Tons*300mm manual de-coiler
  2. Roll forming machine
  3. Hydraulic cutting device
  4. Run out table
  5. PLC control cabinet
  6. Satey system for CE certifate

Description/Technical Parameter details of complete line:

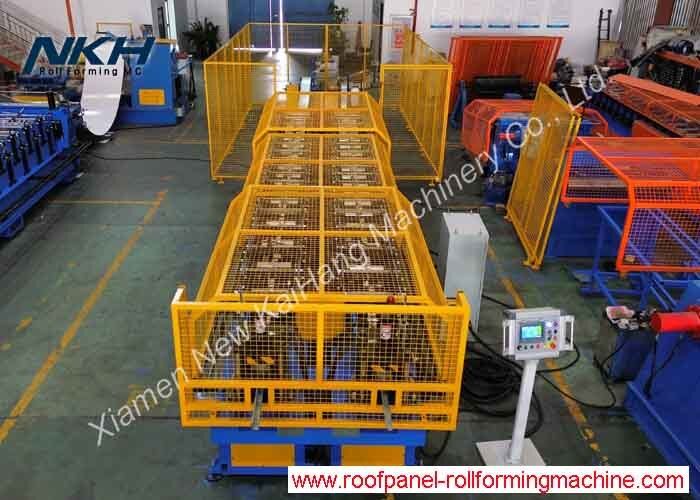

Twin side door frame roll forming machine with CE Double side roll forming machine Door frame 1

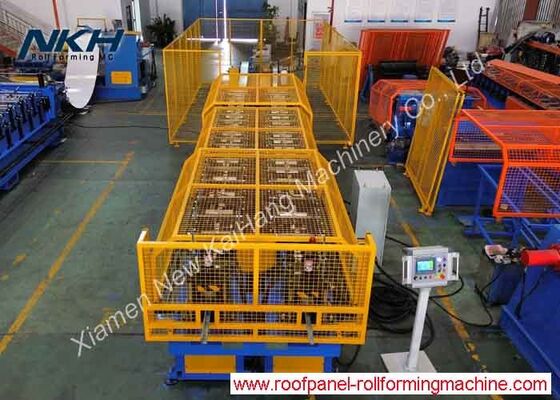

Twin side door frame roll forming machine with CE Double side roll forming machine Door frame 2
