Galvanized Steel C Purlin Machine , Metal Stud And Track Roll Forming Machine
Galvanized Steel C Purlin Machine , Metal Stud And Track Roll Forming Machine Galvanized Steel C Purlin Machine , Metal Stud And Track Roll Forming Machine Galvanized Steel C Purlin Machine , Metal Stud And Track Roll Forming Machine

Galvanized Steel C Purlin Machine , Metal Stud And Track Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: C75
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH
Contact Now

Detail Information
Name: C Purlin Roll Forming Machine Roller Material: GCr15, Heat Treatment, Hard Chrome Coated/Cr12, Heat Treatment
Shaft Diameter: 75mm Cutting Blade Material: Cr12, Heat Treatment
Warranty: 12 Months Raw Material: GI Sheets, G350
Highlight:

purlin making machine

,

steel frame roll forming machine

Product Description

Galvanized steel C shaped purlin roll forming machine, stud and track panel, 2.0mm material



Application:

C and Z steel purlin are necessary for the modern steel industrial buildings, and some residential building as well, and various kinds of c/z purlin roll forming machines have been developed to produce C/Z/U steel purlin.

In the markets there are c purlin roll forming machines for the production of C steel sectional channels, the below machine design is the classic design for post punching, post cutting design

Quick Detail:

  1. Thickness : 1.5mm-2.0mm
  2. Material : Galvanized sheets
  3. Material weight : 5Mt
  4. Coil inner diameter : 508mm
  5. Driven way: by 15kw driven motor
  6. Cutting way: by stop to cut
  7. Cutting tolerance : ±1mm

Machine list:

  1. Hydraulic De-coiler or Manual Un-coiler rack
  2. Pre-leveling device
  3. Roll former
  4. Hydraulic Post-punch & Post- cut device
  5. Run out table
  6. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

  • 5TX600mm Hydraulic Un-coiler

Un-powered; Load capacity= MAX.5Ton

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil inner–diameter=510+/-30mm

Coil Width= MAX.600mm

Mandrel rotation: Draft type

  • Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 1.5-2.0mm
Carriage Frame design wall-plate-frame-type
Rolling mills forming stages 15 stages
Material of forming roller Cr12, heat treatment
Shafts Diameter Φ75mm
Main motor power 15Kw
Production speed 12m/min
Hydraulic group power 7.5Kw
Material of cutting blade Cr12, heat treatment
Electric Voltage Standard 380V/50Hz/3PH or as requirements
Major Color of Machine Painted RAL 5015(Blue) or as requirements
  • PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

  • Product Rack 4 meter long ,rolled type

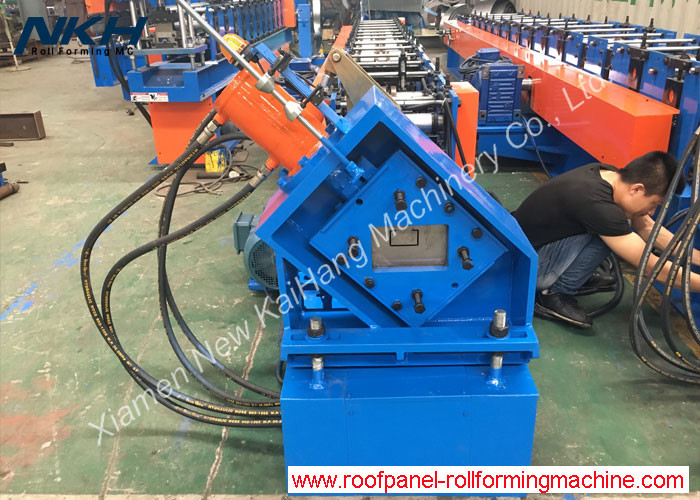

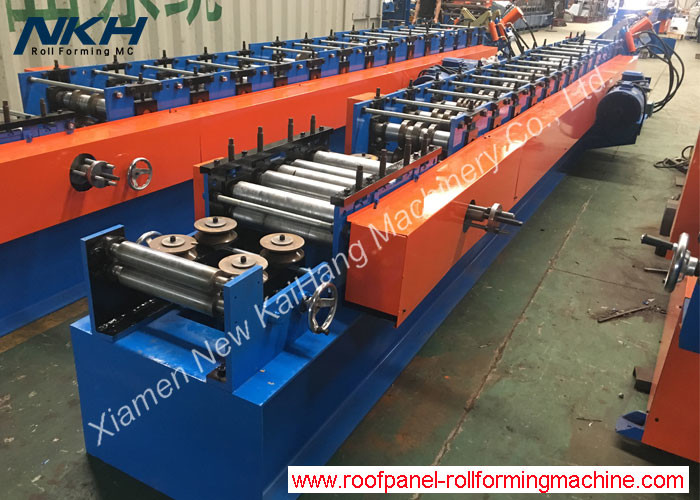

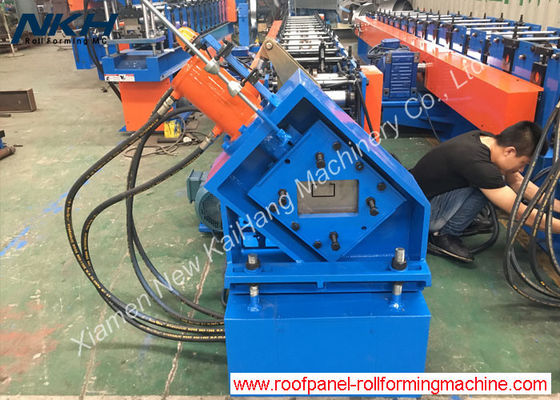

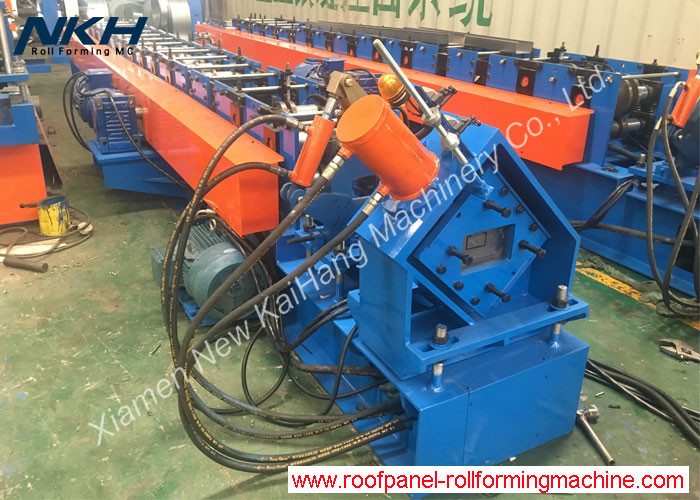

Profile Drawing/Layout/Equipment reference pictures:



Galvanized Steel C Purlin Machine , Metal Stud And Track Roll Forming Machine 0Galvanized Steel C Purlin Machine , Metal Stud And Track Roll Forming Machine 1
