Purlin Roll Forming Machine
Created with Pixso. PLC Control Purlin Roll Forming Machine 20m/min Auto Exchange
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
Purlin Making Machine
Roller Material:
GCr15, Heat Treatment, Hard Chrome Coated
Shaft Diameter:
75mm
Raw Material:
GI Sheets, G350
Warranty:
12 Months
Cutting Blade Material:
Cr12Mov, Heat Treatment
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
05 UNITS/MONTH
Highlight:

Metal Purlin Roll Forming Machine

,

20m/min Purlin Roll Forming Machine

,

PLC Control Purlin Roll Former

Product Description

Auto C80-300 Purlin Roll Forming Machine , Metal Roll Forming Machine 15-20m / Min Speed



Quick Detail:

  1. Thickness : 1.5mm-3.0mm
  2. Material : Galvanized sheets
  3. Material weight : 5Mt
  4. Coil inner diameter : 508mm
  5. Driven way: by 22kw driven motor
  6. Cutting way: by hydraulic power pack, pre punch, post cut
  7. Cutting tolerance : ±1mm

Application:

Our Manufacturer is one of the leading suppliers in china about the C or Z section purline machine,

The CZ Purlin production can be by the same line

and without any parts replacement when change the different purline production.

You can choose C&Z purlin machine, or separated C or separated Z purlin machine

The C profile width can be adjusted by hand wheel or servo motor control. This can be selected by clients.

The following style is the high speed style C roll forming line.



Machine list:

  1. Hydraulic De-coiler or Manual Un-coiler rack
  2. Pre-leveling device
  3. Roll forming machine
  4. Hydraulic Post-punch & Post- cut device
  5. Run out table
  6. PLC control systems

Description/Technical Parameter details of complete line:

  • 5TX600mm Hydraulic Un-coiler or manual de-coiler

You can adopt to :

Manual de-coiler

Hydraulic un-coiler

Hydraulic & Driven de-coiler

  • Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 1.5-3.0mm
Carriage Frame design wall-plate-frame-type
Rolling mills forming stages 14 stages
Material of forming roller Cr12, heat treatment
Shafts Diameter Φ75mm
Main motor power 22Kw
Production speed 15-20m/min
Hydraulic group power 7.5Kw
Material of cutting blade Cr12, heat treatment
Electric Voltage Standard 380V/50Hz/3PH or as request
Major Color of Machine Painted RAL 5015(Blue) or as request

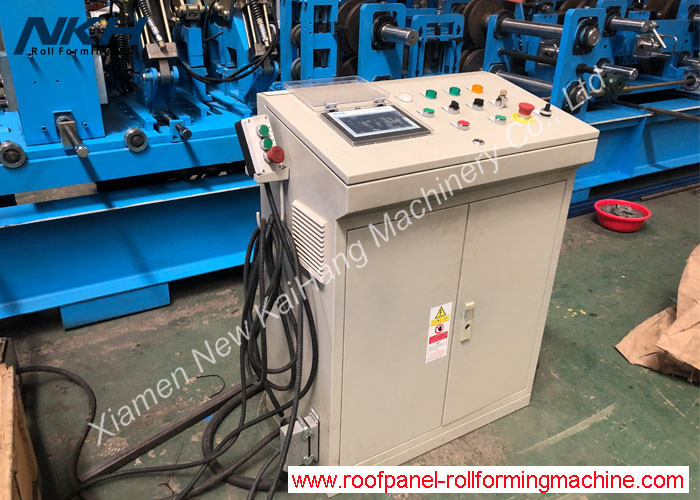

  • PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

  • Product Rack 4 meter long ,rolled type

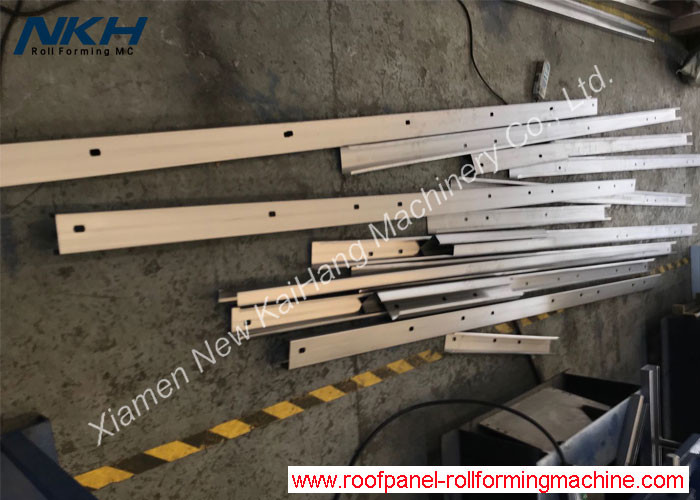

Profile Drawing/Layout/Equipment reference pictures:

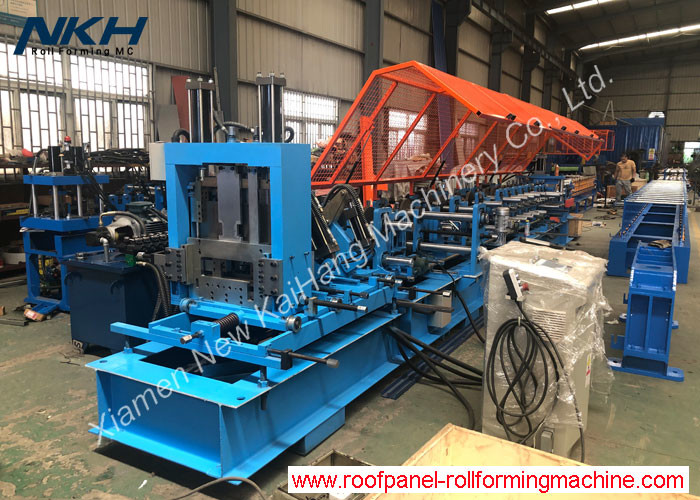

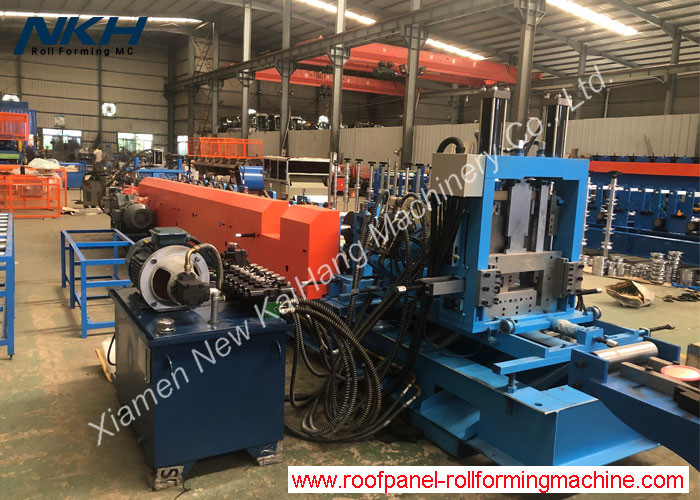

PLC Control Purlin Roll Forming Machine 20m/min Auto Exchange 0

PLC Control Purlin Roll Forming Machine 20m/min Auto Exchange 1PLC Control Purlin Roll Forming Machine 20m/min Auto Exchange 2
