Name: Panel Roll Forming Machine Coil Weight: 3T Or As Request
Control System: PLC Control System Raw Material: Alu-Zinc Sheets, GI Sheets, 350Mpa
Shaft Material: 45#, High Precision Cutting Blade Material: Cr12, Heat Treatment
Highlight:

ridge cap roll former

,

metal tile forming machine

Product Description

Cold rolled making machine for gutter panel



Quick Detail:

  1. Thickness : 0.4-0.6mm
  2. Material : G550 full hard Galvanized Sheets
  3. Input width :375mm
  4. Material weight : 3MT
  5. Coil inner diameter : 470 mm
  6. Driven way: by 7.5Kw driven motor
  7. Cutting way: 4Kw hydraulic pump motor
  8. Cutting tolerance : ±1mm

Application:

A gutter roll forming machine work with the flashing and downpipe and end cap and support fixing as a water roof systems

This gutter panel is very popular in Australia, exclude the gutter panel, the connecting accessories and end cap also included

Machine list:

  1. 3T*600mm hydraulic un-coiler
  2. Roll forming machine
  3. Hydraulic cutting device
  4. Run out table
  5. PLC control cabinet

Description/Technical Parameter details of complete line:

  • 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Pump power=1.5KW

Load capacity=3 Ton; Coil Inner – diameter =451-530 mm

Coil outer-diameter=Max. 1500 mm

Coiler Width=Max. 600 mm

  • Roll forming machine details as below table :
Suitable roll forming material galvanized steel sheet, 55Mpa
Thickness 0.4mm-0.6mm
Coil input width 375mm
Carriage Frame design Wall-plate-frame-design
Rolling mills forming stages 18 stages
Material of forming roller

45# steel, CNC lathes, Hard Chrome Coated

Option : with roller heat treatment
Shafts Diameter Φ75mm
Main motor power 7.5Kw with reducer
Rolling speed of roll former 15-20m/min
Electric Voltage Standard 415V/50Hz/3PH or as requirements
Major Color of Machine Painted RAL 5015(Blue) or as requirements
  • Hydraulic Cutting Device

Stop to cut, Post cut, there is waste

Hydraulic group, pump motor =4.0KW

Cutting tool material: Cr12, Heat treatment

  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, rolled type, 4 meter long

Profile Drawing/Layout/Equipment reference pictures:

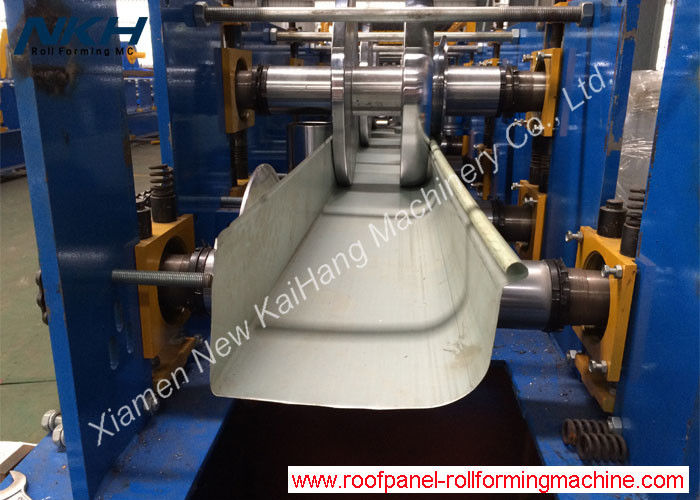

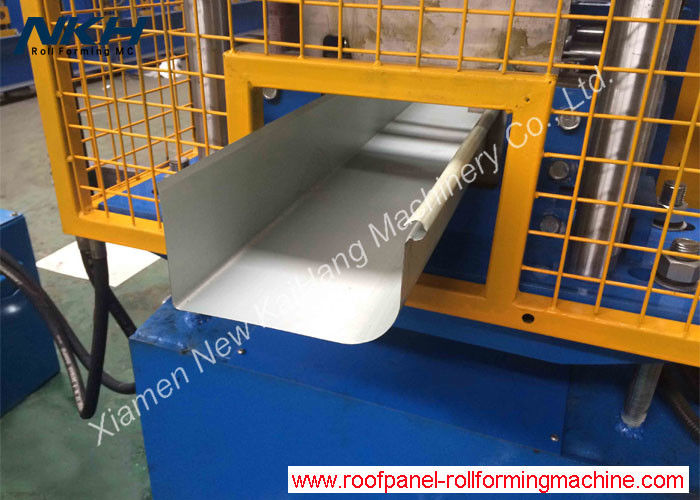

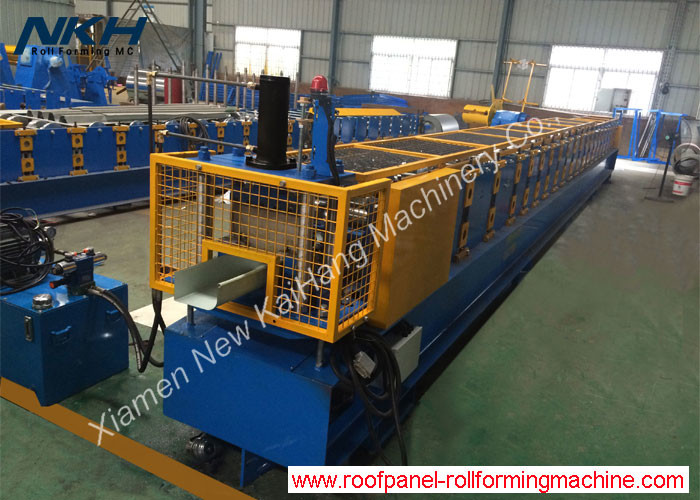

Cold Rolled Forming Machines , Rectangular Gutter Roll Forming Machine For Gutter Panel 0
