Product Details:
Place of Origin:	China
Brand Name:	NKH ROLL FORMING MC
Model Number:	YX35-63 batten roof
Payment & Shipping Terms:
Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	nude cargo for roll former, cartons for PLC, one machine/40,20 ft
Delivery Time:	45 working days
Supply Ability:	10 sets/months

Contact Now

Detail Information

Highlight:

corrugated sheet roll forming machine

wall panel roll forming machine

Product Description

Galvanized Steel Ceiling Roll Forming Machinery For Inner Roof Decoration, Batten roof, Top hat panel

No.	item		Parameter(all is subject to our final design)
1	Suitable raw material	Type	Common galvanized & pre-painted steel
		Yield strength	550MPa(or other high strength steel)
		Thickness(mm)	0.4-0.7
2	Manual uncoiler’s capacity		Max.5tons
3	Forming speed(m/min)		About 18-20m/min
4	Main motor power(KW)		5.5kw
5	Hydraulic power(KW)		3kw
6	Forming roller groups		Around 12-14 groups
7	Raw material of forming roller		High quality No.45 steel
8	Raw material of cutting blade		Cr12mould steel with quenched treatment
9	controlling system		Siemens PLC & touch screen
10	Suitable industrial voltage		According to your special requirement
11	Machine weight		About 3.2tons

Machine’s Components

1.5 tons manual uncoiler	1set
Coil sheet guiding and adjust department	1set
File covered department(optional)	1set
Main roll forming systerm	1set
Hydraulic cutting department	1set
Hydraulic station	1set
PLC control table	1set
Final product runout table	1set

Working Flow of Roll Forming Machine

uncoiling the sheet---guiding the sheet---roll forming---cutting the panel---panels to the support

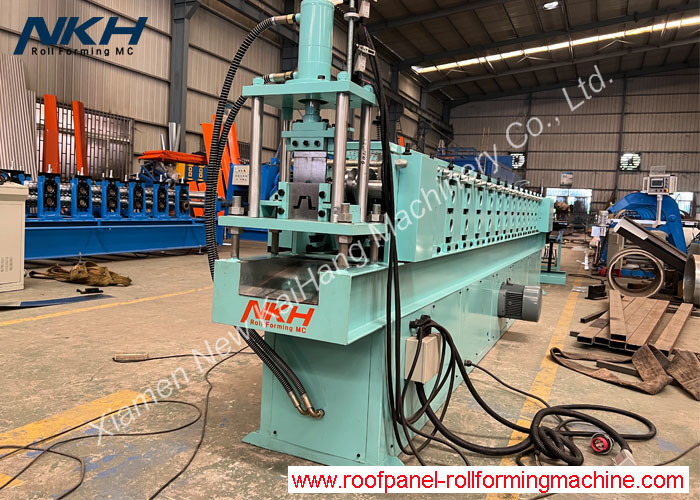

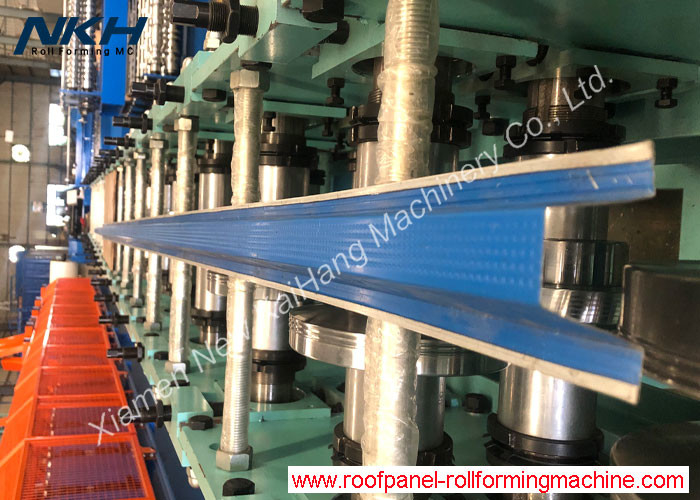

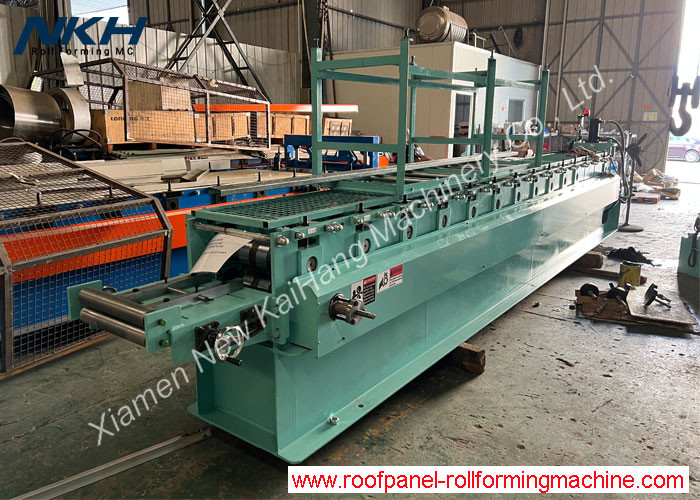

Galvanized Steel T Shaped Bar Ceiling Roll Forming Machinery For Inner Roof Decoration, Batten roof, Top hat panel 0

Standard Profile drawing of product

Galvanized Steel T Shaped Bar Ceiling Roll Forming Machinery For Inner Roof Decoration, Batten roof, Top hat panel 1
