C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking
C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking
C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking

C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: C76-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 90 WORKING DAYS
Payment Terms: T/T, D/A, D/P, L/C
Supply Ability: 3 UNITS/MONTH
Contact Now

Detail Information
Name: C Section/ C Purlin Roller Material: Cr12, Heat Treatment
Shaft Diameter: 75mm Raw Material: GI Sheets, G550
Drive: Gearbox +universal Joint Cutting Blade Material: Cr12Mov, Heat Treatment

Product Description

C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking 0

C section C purlin roll forming machine, automatic changing, automatic stacking machine



Quick Detail:

  1. Thickness : 1.0-3.0mm
  2. Material : Galvanized sheets
  3. Cutting tolerance : ±1mm
  4. Production speed: 20-25m/min

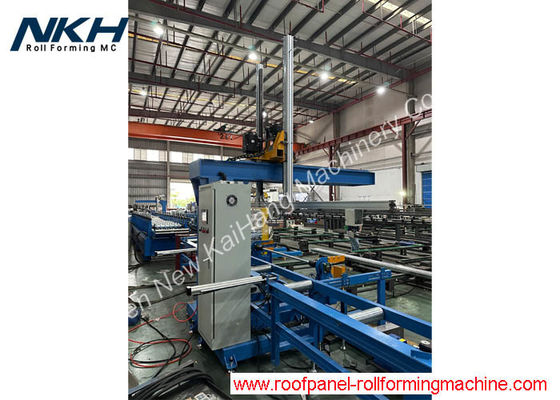

  5. Auto stacking machine



Machine list:

  1. Hydraulic De-coiler or Manual Un-coiler rack
  2. Pre-leveling device
  3. Roll forming machine
  4. Hydraulic flying cut device
  5. Auto stacking machine
  6. PLC control systems

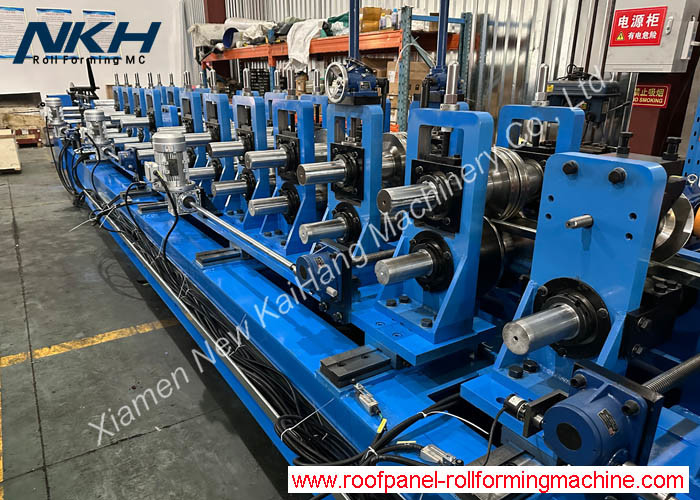

C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking 1

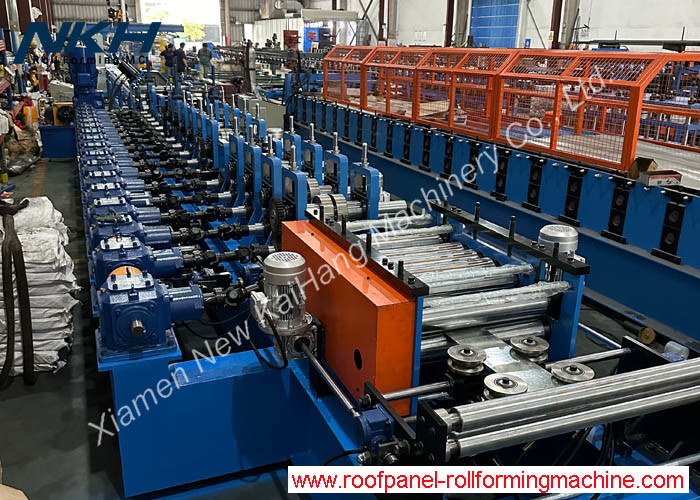

C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking 2

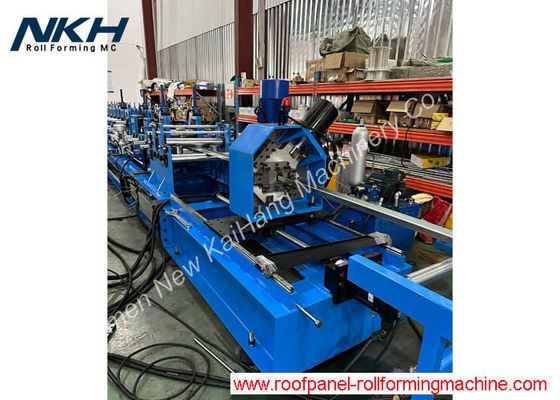

C Section Purlin Roll Forming Machine Automatic Changing Automatic Stacking 3
