Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products
Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products
Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products

Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: C80-300 or As per required
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 90 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 05 UNITS/MONTH
Contact Now

Detail Information
Name: Purlin Making Machine Roller Material: Cr12, Heat Treatment
Shaft Diameter: 75mm Raw Material: GI Sheets, G350
Warranty: 12 Months Cutting Blade Material: Cr12Mov, Heat Treatment
Highlight:

Auto CZ Purlin Roll Forming Machines

,

CZ Purlin Roll Forming Machines

,

Customized Purlin Roll Forming Machine

Product Description

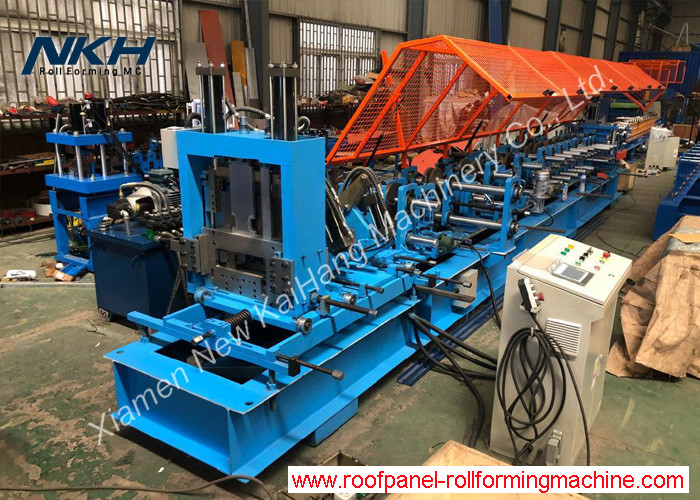

Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products 0

Auto C80-300 Purlin Roll Forming Machine , Metal Roll Forming Machine



Quick Detail:

  1. Thickness : 1.5mm-3.0mm
  2. Material : Galvanized sheets
  3. Material weight : 5Mt
  4. Coil inner diameter : 508mm
  5. Driven way: by 22kw driven motor
  6. Cutting way: by hydraulic power pack, pre punch, post cut
  7. Cutting tolerance : ±1mm

Application:

Our Manufacturer is one of the leading suppliers in china about the C or Z section purline machine,

The CZ Purlin production can be by the same line

and without any parts replacement when change the different purline production.

You can choose C&Z purlin machine, or separated C or separated Z purlin machine

The C profile width can be adjusted by hand wheel or servo motor control. This can be selected by clients.

The following style is the high speed style C roll forming line.



Machine list:

  1. Hydraulic De-coiler or Manual Un-coiler rack
  2. Pre-leveling device
  3. Roll forming machine
  4. Hydraulic Post-punch & Post- cut device
  5. Run out table
  6. PLC control systems

Description/Technical Parameter details of complete line:

  • 5TX600mm Hydraulic Un-coiler or manual de-coiler

You can adopt to :

Manual de-coiler

Hydraulic un-coiler

Hydraulic & Driven de-coiler

  • Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 1.5-3.0mm
Carriage Frame design wall-plate-frame-type
Rolling mills forming stages 14 stages
Material of forming roller Cr12, heat treatment
Shafts Diameter Φ75mm
Main motor power 22Kw
Production speed 15-20m/min
Hydraulic group power 7.5Kw
Material of cutting blade Cr12, heat treatment
Electric Voltage Standard 380V/50Hz/3PH or as request
Major Color of Machine Painted RAL 5015(Blue) or as request
  • PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

  • Product Rack 4 meter long ,rolled type

Profile Drawing/Layout/Equipment reference pictures:

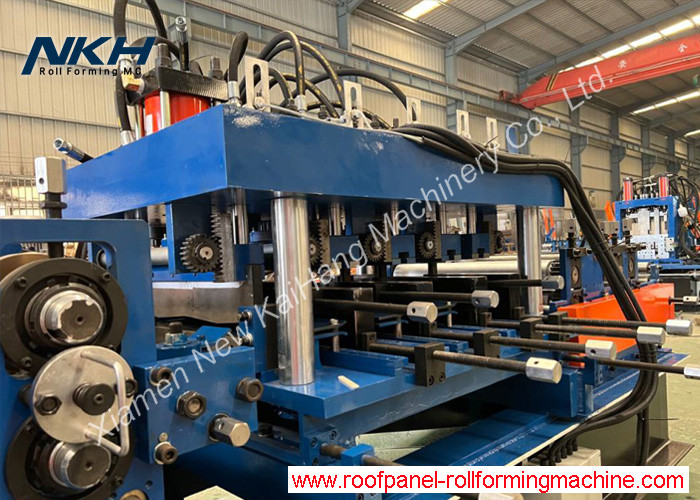

Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products 1

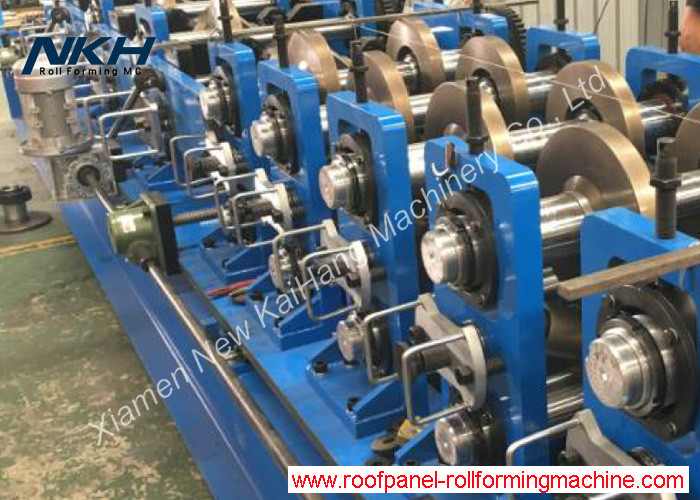

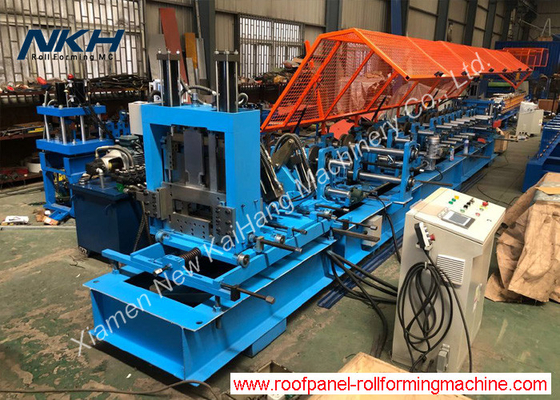

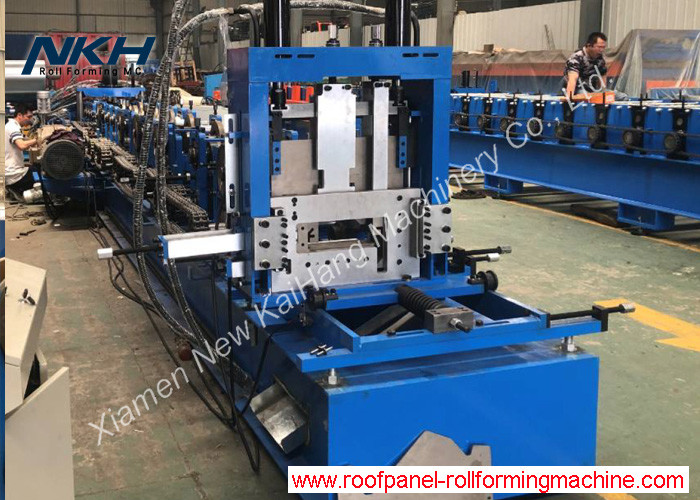

Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products 2Customized Auto CZ Purlin Roll Forming Machines Pre Engineered Buildings One Machine For Multiple Products 3
