Purlin Roll Forming Machine
Created with Pixso. 2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
Purlin Roll Former
Raw Material:
GI Sheets, G350
Shaft Diameter:
75mm
Cutting Blade Material:
Cr12, Heat Treatment
Coil Weight:
3T Or As Request
Voltage:
220V/60Hz/3Ph
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
05 UNITS/MONTH
Highlight:

C250 Channel Purlin Roll Forming Machine

,

C125 Channel Purlin Roll Forming Machine

,

C80 Channel Purlin Roll Former

Product Description

Full Automatic 2.5mm C80-250 Channel Purlin Roll Forming Machine by spacers



Quick Detail:

  1. Thickness : 1.5mm-2.5mm
  2. Material : Galvanized sheets
  3. Material weight : 3Mt
  4. Coil inner diameter : 508mm
  5. Driven way: by 15kw driven motor
  6. Cutting way: by hydraulic power pack, post punch, post cut
  7. Cutting tolerance : ±1mm

Application:

It is used to colume as C80,C125, C250

  1. Hydraulic De-coiler or Manual Un-coiler rack
  2. Roll forming machine
  3. Hydraulic Post-punch & Post- cut device
  4. Run out table
  5. PLC control systems

Description/Technical Parameter details of complete line:

  • 3TX600mm Hydraulic Un-coiler

        You can adopt to :

        Manual de-coiler

         Driven de-coiler

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 1.5-2.5mm
Carriage Frame design wall-plate-frame-type
Rolling mills forming stages 15 stages
Material of forming roller Cr12, heat treatment
Shafts Diameter Φ75mm
Main motor power 15Kw
Production speed 18m/min (without punch time)
Hydraulic group power 11Kw
Material of cutting blade Cr12, heat treatment
Electric Voltage Standard 220V/60Hz/3Ph or as request
Major Color of Machine Painted RAL 5012(Sky Blue) or as request
  • PLC Control System

        Control the quantity & cutting length automatically

        Combined with: Siemens brand PLC and Touch Screen

        Schneider brand Inverter, Omron encoder, etc

        Cut-to-length tolerance≤±1mm

        Control voltage 24V

  • Product Rack 4 meter long ,rolled type

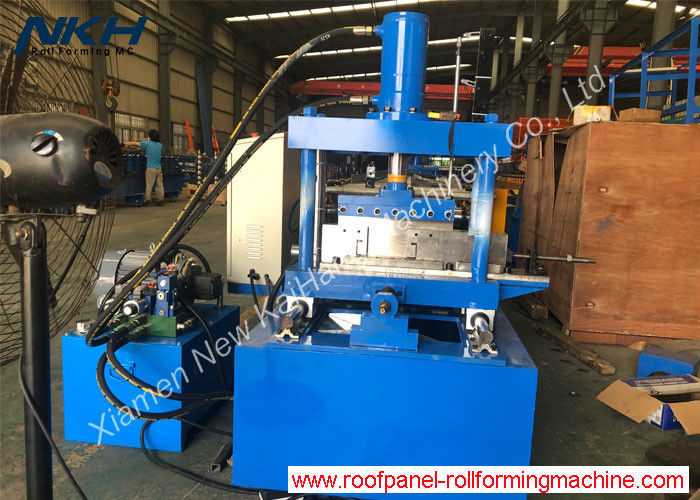

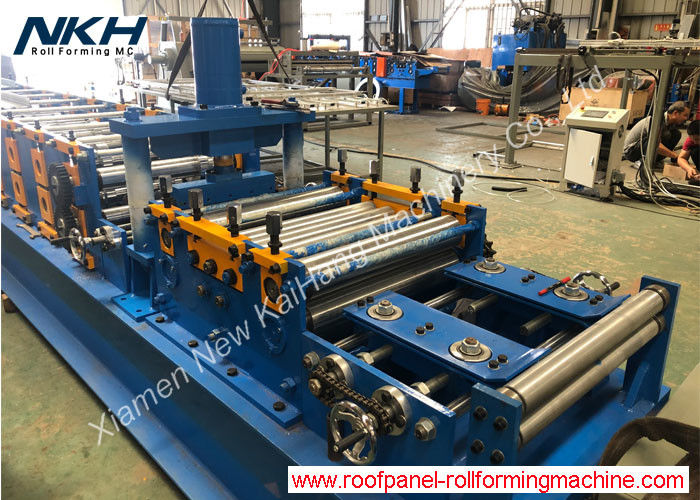

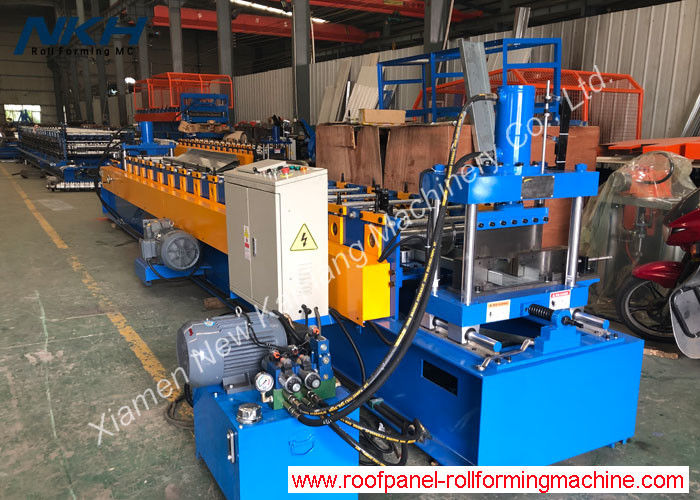

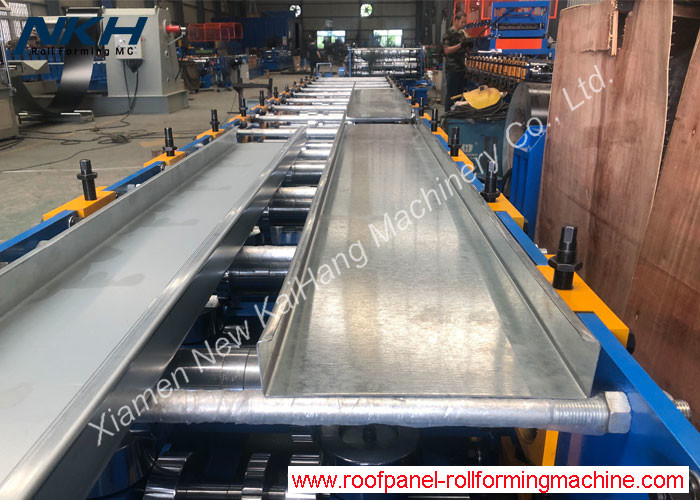

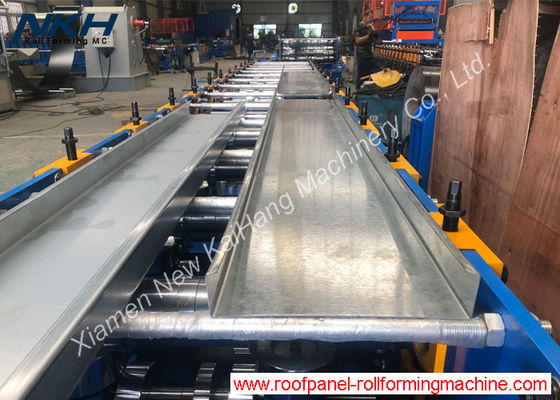

Profile Drawing/Layout/Equipment reference pictures:

2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine 02.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine 1
