High Efficiency Steel Sheet Forming Machine , Corrugated Sheet Making Machine
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NKH MACHINERY |
| Certification: | CERTIFICATE OF ORIGIN |
| Model Number: | YX32-900 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 01 |
| Price: | As discussed |
| Packaging Details: | NUDE CARGOES |
| Delivery Time: | 50 WORKING DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 03SETS/MONTH |
|
Detail Information |
|||
| Name: | Decrative Metal Roofing Machine | Weight: | 5T Or As Request |
|---|---|---|---|
| Raw Material: | Pre-Painted Sheets | Shaft Material: | 45#, High Precision |
| Control System: | PLC Control System | Roller Material: | 45# Steel |
| Cutting Blade Material: | Cr12, Heat Treatment | Usage: | Steel Construction |
| High Light: | G350 Panel Roll Forming Machine,Metal roof Panel Roll Forming Machine,G350 Panel Roll Former |
||
Product Description
Easy To Operate Decrative Panel Roll Forming Machine Rows Of Rollers 20rows, G350, 0.4-0.8mm
Product parameter
|
Product
|

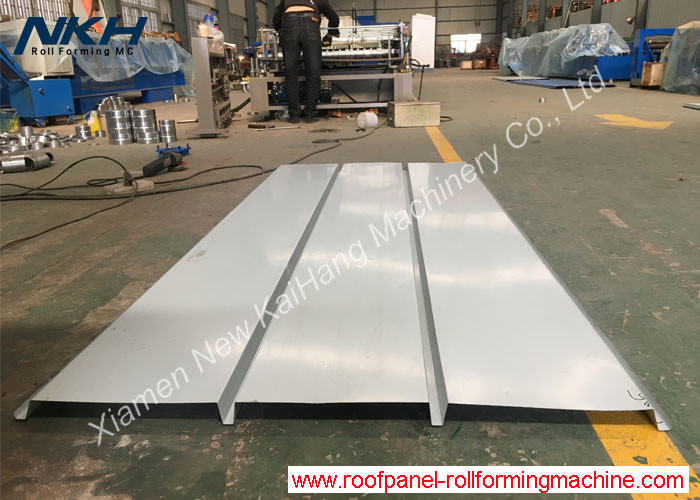

Metal roof roll forming glazed panel roofing machine
|
|
MODEL
|
Glazed(Our engineer and designer team service for you!! )free!!!
|
|
Base material
|
GI/GL,PPGI/PPGL,Aluminum coil
|
|
Thickness
|
0.3mm-0.8mm
|
|
Effective Width
|
1200mm (according to the need)
|
|
Roller material
|
45# steel
|
|
Color
|
All colors (standard international color)or customers samples' color
|
|
Brand
|
NKH MACHINERY
|
|
Control System
|
SIEMENS PLC
|
|
Power
|
7.5KW-11KW
|
|
Frame
|
450Hsteel
|
|
Cutting drive
|
Hydraulic drive,electric motor
|
|
Cutting&Hydraulic type
|
Type:double guide pillar hydraulic cutting. Hydraulic pump station :4kw
|
|
Feature
|
Building metallic materials have excellent performance of decoration, corrosion resistance etc. |
Installation:
(1) If installation is needed, the manufacturer will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist the manufacturer to get the technician's visa and should pay for the roundtrip air ticket and the localaccommodation.
(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.
a) Position the machine in the buyer's factory.
b) Prepare necessary electric wiring.
c) Prepare material of trial running.
d) Provide labors for assistance and installation during installation.
e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.

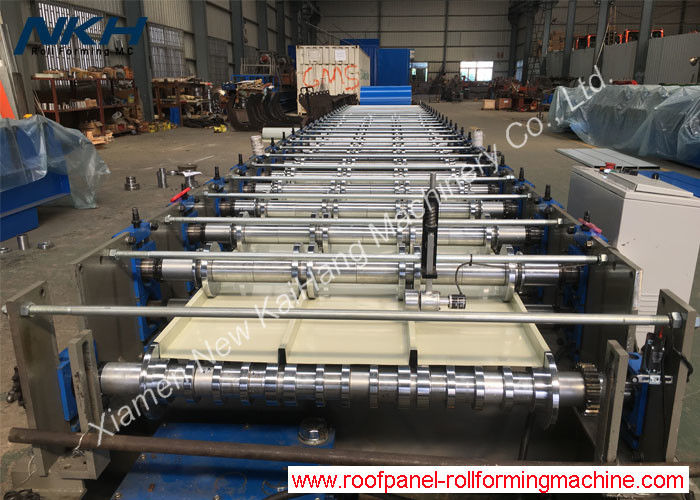

Main Machine
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm ;
Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated
Shafts Diameter=ф75/ф95mm ,precision machined
Gear/Sprocket driving,about 20-step to form
Main Motor(Servo motor) =7.5KW, Frequency speed control
Chain size: one inch with 18teeth
All the screw bolts with grade 8.8
Real forming speed 20m/min
