Roof Panel Roll Forming Machine
Created with Pixso. High Speed Corrugated Roll Forming Machine for Roof Panels
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
Corrugated Sheet Making Machine
Raw Material:
Pre-painted Sheets, 245-550Mpa
Control System:
PLC Control System
Production Speed:
50-60m/min
Cutting Blade Material:
Cr12, Heat Treatment
Roller Material:
45# Steel CNC Lathes, Hard Chrome Coated
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
10 UNITS/MONTH
Highlight:

high speed roof panel roll forming machine

,

corrugated roll forming machine for roofing

,

roof panel forming machine with warranty

Product Description

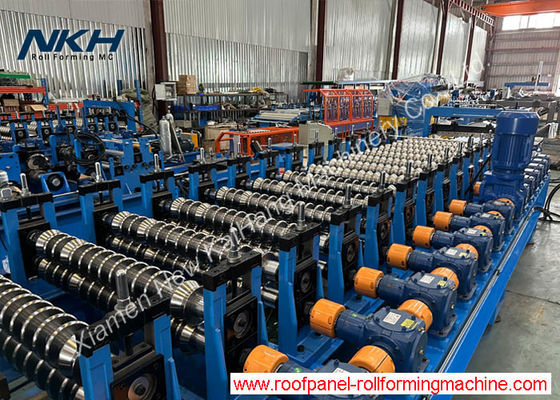

High Speed Corrugated Roll Forming Machine for Roof Panels 0

High speed corrugated sheet roll forming machine, roofing corrugated sheet cold roll forming machine



Profile Drawing/Layout/Equipment reference pictures:

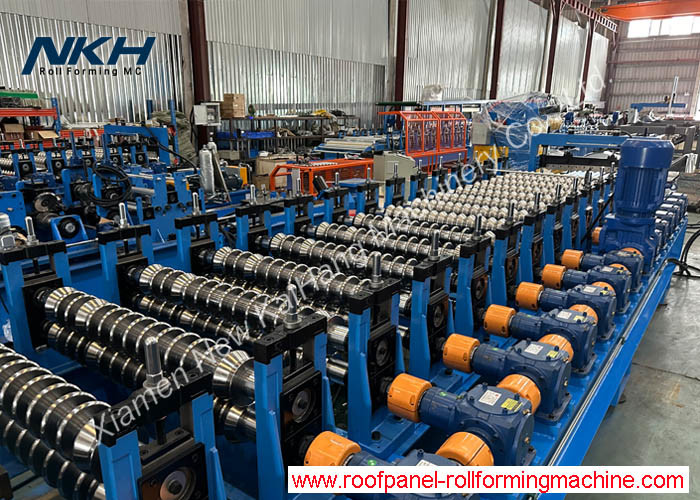

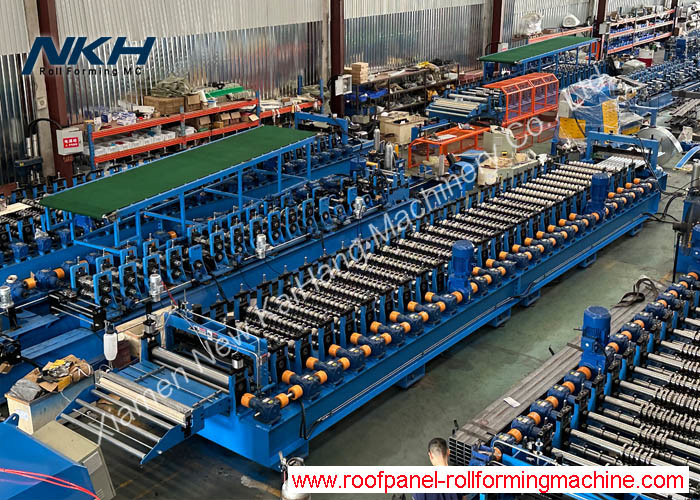

High Speed Corrugated Roll Forming Machine for Roof Panels 1



Quick Detail:

  1. Thickness : 0.18-0.38mm
  2. Material : G350-550MPa, pre-painted sheets
  3. Input width : 914/1220mm
  4. Effective width: 762/990mm

Machine list:

  1. 10Tons*1250mm Hydraulic un-coiler with coil car

  2. Roll forming machine
  3. Hydraulic flying cutting device
  4. 8 Meters Pneumatic Stacker
  5. PLC control system

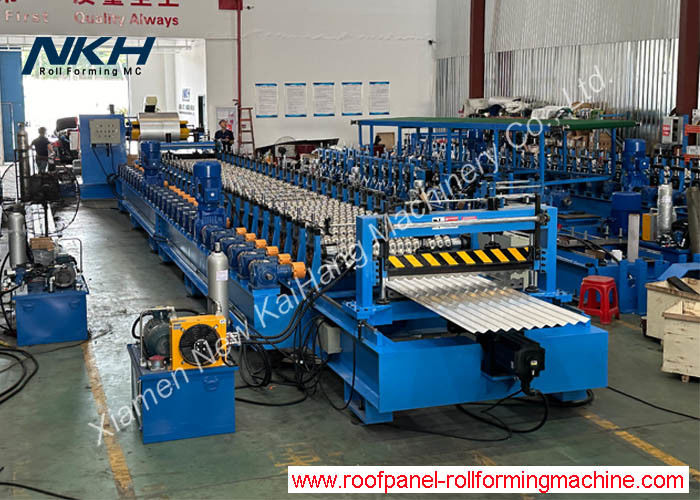

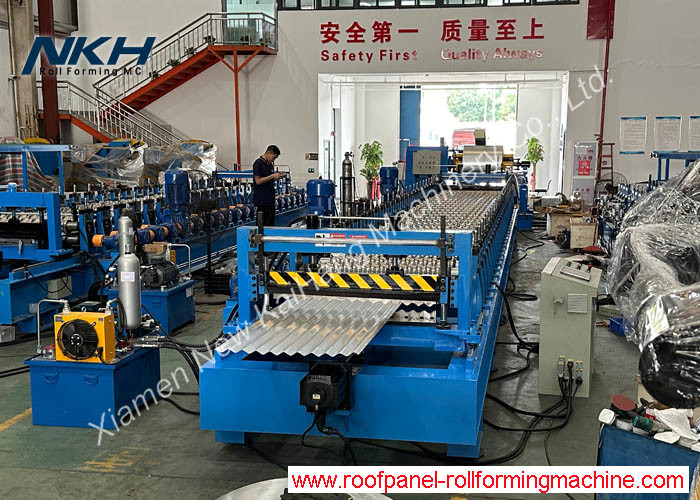

High Speed Corrugated Roll Forming Machine for Roof Panels 2
