High Efficiency Steel Sheet Forming Machine , Corrugated Sheet Making Machine
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NKH MACHINERY |
| Certification: | CE/SONCAP/ |
| Model Number: | YX51-333-1000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 01 |
| Price: | Negtiation |
| Packaging Details: | NUDE CARGOES |
| Delivery Time: | 50 WORKING DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 03 UNITS/MONTH |
|
Detail Information |
|||
| Name: | Formed Metal Roofing Machine | Weight: | 5T Or As Request |
|---|---|---|---|
| Raw Material: | Pre-Painted Sheets | Shaft Material: | 45#, High Precision |
| Control System: | PLC Control System | Roller Material: | 45# Steel |
| Cutting Blade Material: | Cr12, Heat Treatment | Usage: | Steel Construction |
| High Light: | PLC Control Roof Panel Roll Former,GCr15 Roller Roof Panel Roll Former,Siemens PLC Control Roll Former Machine |
||
Product Description

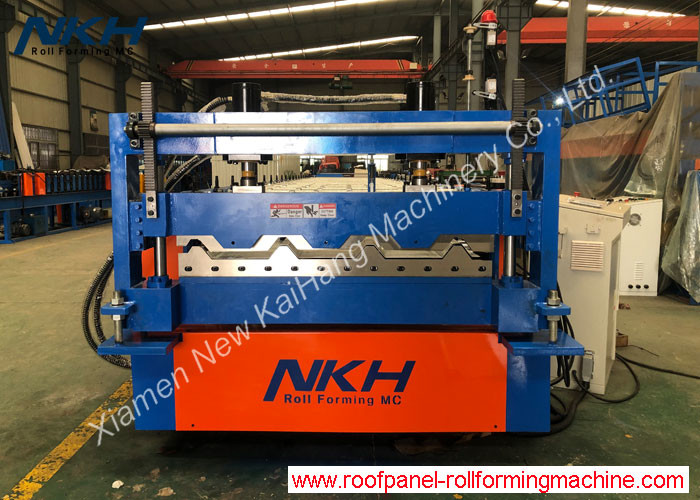

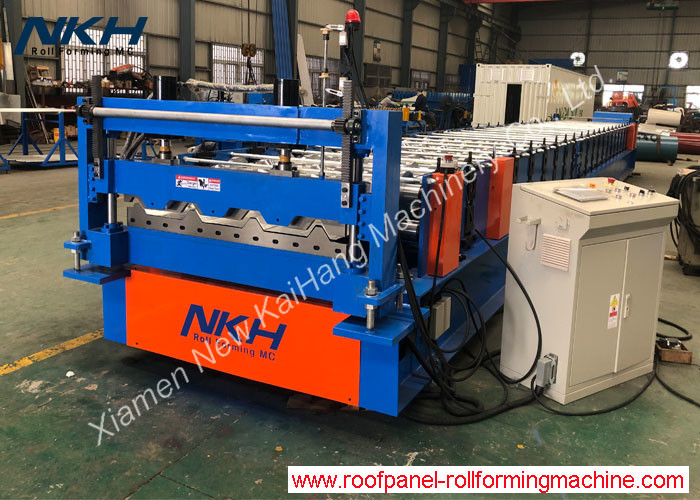

11500 X 1650 X 1500mm 5 Tons Roof Panel Roll Forming Machine PLC Control System
Product parameter
| No | Item | Description |
| 1 | Coil | Width:12201250mm |
| 2 | Forming speed | 20m/min (not including cutting time) |
| 3 | Roller Stations | 24stations |
| 4 | Material of Roller | GCr15, heat treatment, hard chrome coated |
| 5 | Material of Main Shaft | 45# steel finishing machining and then slack |
| 6 | Material of Shaft | 95 mm 45#steel forged |
| 7 | Driven Motor Power | 15KW |
| 8 | Hydraulic Station Power | 5.5KW |
| 9 | Hydraulic Station Pressure | 12.0 Mpa |
| 10 | Electrical Control System | Siemens PLC |
| 11 | Dimension (L*W*H) | 11500*1550*1200mm |
| 12 | Material of Cutter | GCr12Mov |
| 13 | Driving Mode | single chain 1.2 inch |
| 14 | Material Thickness | 0.6-1.0mm |
| 15 | Power Supply | 2200V, 60HZ, 3 PHASES |
| 16 | Cutting accuracy | ±1 mm |
Machine Parts

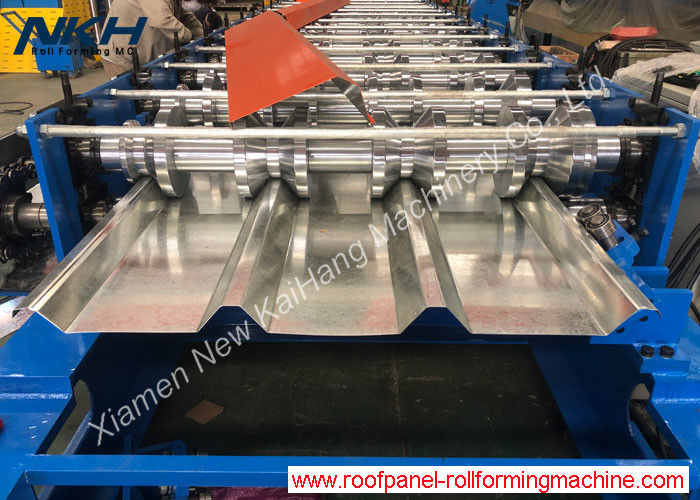

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.03 mm
Roller material: Forging Steel 45# heat treatment, coated
Hydraulic Ue-coiler
Single - head de-coiler, unilateral discharge
Using electric
pressure internal intensify
Max. loading weight : 10tons
Max. coiling diameter: 1800mm
Cylinder diameter: 120mm
Working pressure: 10mpa
Coiling inner diameter: 450mm - 620mm
Product advantages
1. Speeds up to 20m/min

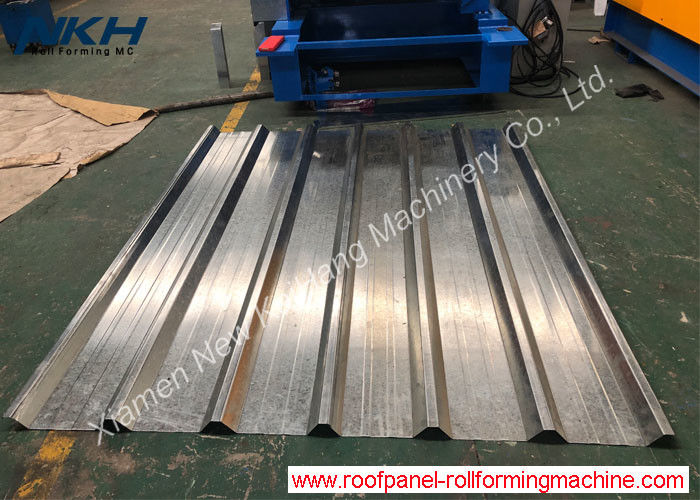

2. Produce single layer profile
3. Best price
4. Good quality
5. Power enery save
6. Long last lifetim
7. Easy Operation
8. We are the manufacturer and can design the profile accordingly
