Roll Forming Line For Highway Guardrail , Safety Crash Barrier Roll Former , W Beam

Product Details:
Place of Origin: CHINA
Certification: CE/SONCAP/CSA
Model Number: YX50-165
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 UNITS/MONTH

Detail Information

Coil Weight: 5T Or As Request Control System: PLC Control System
Roller Material: GCr15, Heat Treatment, Hard Chrome Coated Raw Material: GI Sheets, G550
Shaft Diameter: 75mm Cutting Blade Material: Cr12, Heat Treatment
High Light:

wall panel roll forming machine


roofing sheet roll forming machine


Crash Barrier Roll Former

Product Description

Roll forming line for highway guardrail, safety crash barrier roll former, W beam, two waves, high precision

Quick Detail:

  1. Thickness : 2-3.2mm
  2. Material : GI, 345Mpa
  3. Material weight : 5MT or 8MT
  4. Coil inner diameter : 508mm
  5. Driven way: by driven motor
  6. Cutting way: by hydraulic power pack
  7. Cutting tolerance : ±1mm


The crash barrier roll forming machine has been designed for producing w shaped guardrails with 2 wave and 3 waves or throe beams placed on both sides of highway or expressway.

Machine list:

  1. Hydraulic un-coiler for 5mt or 8mt cap.
  2. Hydraulic pre-punching device or separated pressers with tooling
  3. Roll former, cut to length control
  4. Run out table
  5. PLC control system with high precision

Description/Technical Parameter details of complete line:

  • 5TX600mm Hydraulic Un-Coiler

Please refer to detailed item for confirmation

  • Hydraulic pre-punching device

Total two sets of hydraulic punching stations

1st to punch for single hole

2nd to punch for hole at double sides & Cut-Off 200Ton

Punching/Cutting pressure: Max.25Mpa

Hydraulic Group, pump motor =22KW

  • Roll forming machine:
Rolling mills forming stages 17 stages
Material of forming roller GCr15, heat treatment, hard chrome coated or Cr12, heat treatment
Shafts Diameter Φ75mm
Main motor power 15Kw*2
Production speed 2-3m/min
Hydraulic group power 22Kw
Material of cutting blade Cr12, hear treatment
  • PLC Control System

Cut to length control

Cut-to-length tolerance≤±0.5mm

Siemens brand PLC and touch screen, Schneider Inverter, Omron encoder

Control Voltage 24V

  • Product Rack 6 meter long, rolled type


Brief Introduction of Highway Guardrail Roll Forming Machine:

As roll forming technologies advance, w beam highway guardrail roll forming machine has been developed to produce guardrails from galvanized steel and 2-4mm thickness. People install the guardrails as safety parts on the roadside or two sides of highway or expressway.

Different countries may have different standards for high guard rails, however only minor changes on shapes or profile dimensions indicates, therefore, all the 2 wave or w beam highway guardrail roll forming machines have very much the same functions, and working process.

There are different transmission systems optional for a highway guardrail roll forming machine in the market.

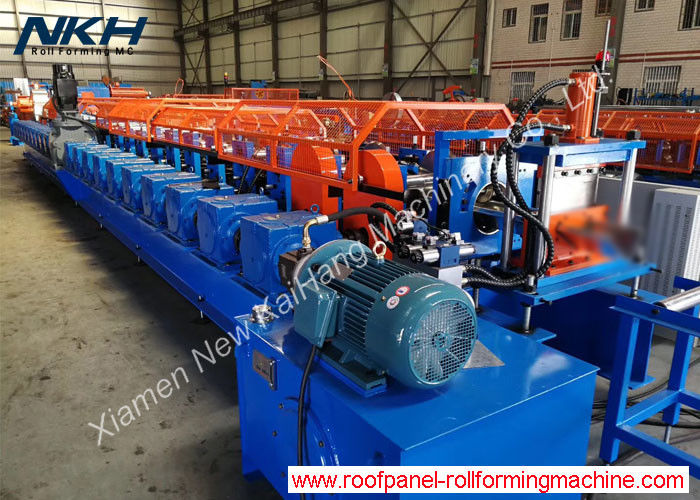

Profile Drawing/Layout/Equipment reference pictures:
