Name:	Guard Fencing Roll Forming Production Line	Weight:	5T
Control System:	PLC Control System	Raw Material:	PPGI/Galvanized/Alu-Zinc/PPGL Sheets, G245-550
Shaft Material:	High Grade No.45 Forged	Cutting Blade Material:	Cr12, Heat Treatment
Roller Material:	45# Steel
High Light:	Cladding Panel Roll Forming Machine , Cladding Panel Roll Forming Machine , Highway Guardrail Roll Forming Machine

Product Description

Safety guard fencing roll forming production line for roofing/ cladding panel

Application:

25-267.5-1075 wall cladding sheet roll forming machine is a common wall sheet roll forming machine in European market such as in France with CE certificate required.

Normally, the full mesh around un-coiler and the roll forming machine and cutting device is required as the CE request, the interlock and safe relay is also included

Metal sheet roll formers are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here.

Quick Detail:

Thickness : 0.4-0.8mm
Material : G550, pre-painted sheets
Input width : 1250mm
Coil ID: 508mm
1. Effective width:1075+/-4mm
2. Material weight: 5/6/7/10 MT
3. Certificate : CE by TUV
4. Driven motor: 11kw motor with gear box or higher
5. Cutter Material: Cr12, heat treatment

Machine list:

5T*1250mm hydraulic de-coiler as standard design
Roll forming machine
Hydraulic cutter
Run out rack
PLC control system
CE certificate included

Description/Technical Parameter details of complete line:

5TX1250mm Hydraulic Un-Coiler

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW,

Delta/Schneider brand inverter

Other design such as snubber arm /support arm/coil car as per request

Fence around the un-coiler

Entry bench & Manual Pre-shearing device

to cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

Roll forming machine with cutting details as below table :

Suitable roll forming material	Color steel sheet or galvanized steel sheet, G550
Thickness	0.4-0.8mm
Coil feed in width	1250mm
Carriage Frame design	Wall-plate-frame-design or stand frame design
Roll forming stages	18 stages
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75/95mm
Main motor power	11Kw with reducer
Line speed of roll former	25m/min or higher
Hydraulic group power	4.0 Kw
Cutting material	Cr12, hear treatment
Electric Voltage Standard	380V/50Hz/3PH or as request
Major Painting Color	Customized and RAL5015 as standard

PLC Control System

Cut to length control

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Schneider brand low voltage electric elements

Product Rack 3 units, no power rack

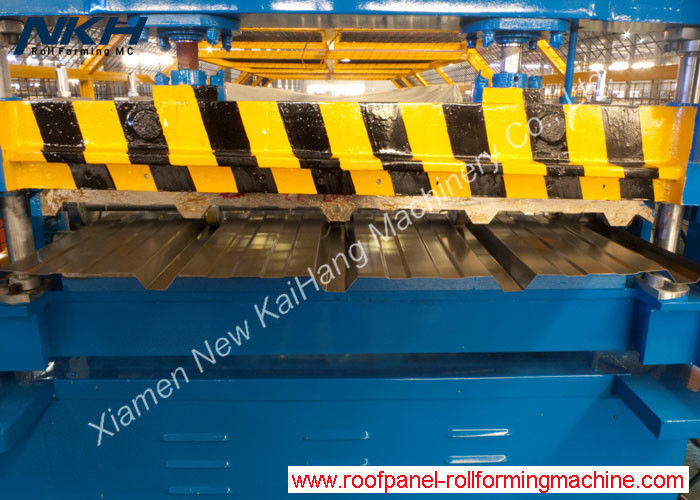

Profile Drawing/Layout/Equipment reference pictures:

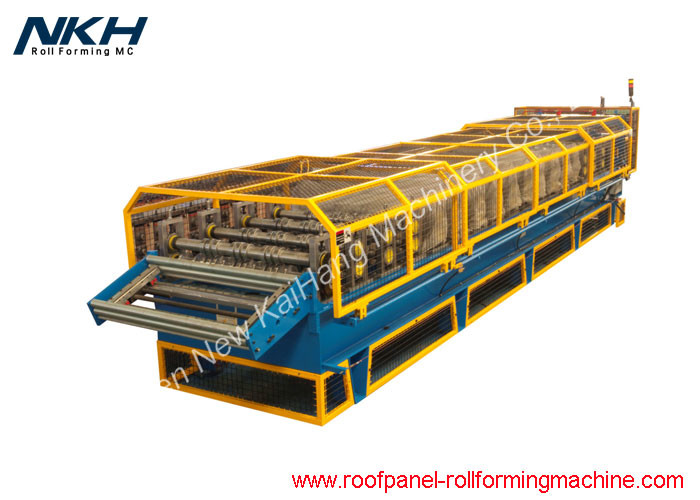

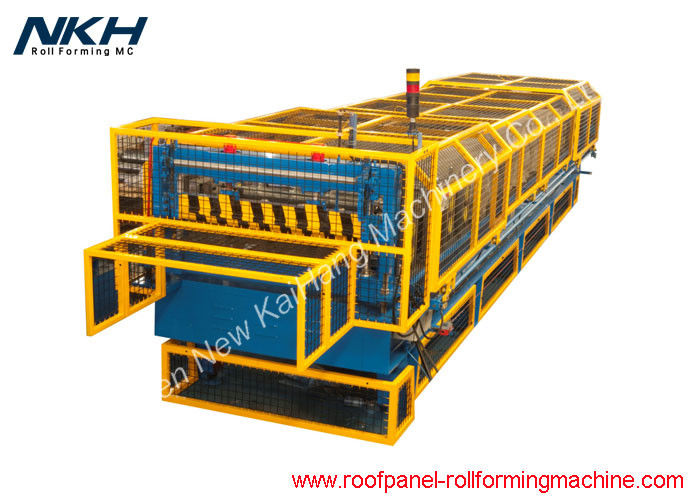

Safety Highway Guardrail Roll Forming Machine For Roofing / Cladding Panel 0

Tag:

Product Details:
Place of Origin:	CHINA
Brand Name:	NKH MACHINERY
Certification:	CE/SONCAP/CSA
Model Number:	YX25-267.5-1075
Payment & Shipping Terms:
Minimum Order Quantity:	1 UNIT
Price:	negotiation
Packaging Details:	NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time:	40 WORKING DAYS
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	10 UNITS/MONTH

Safety Highway Guardrail Roll Forming Machine For Roofing / Cladding Panel

Cladding Panel Roll Forming Machine

Cladding Panel Roll Forming Machine

Highway Guardrail Roll Forming Machine

roofing sheet roll forming machine

corrugated sheet roll forming machine

wall panel roll forming machine
