Roof Panel Roll Forming Machine
Created with Pixso. High Rib Roof Panel Roll Forming Machine , Wall Panel Roll Forming Machine
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
Profile Roll Forming Machine
Weight:
5T
Roller Material:
45# Steel
Raw Material:
PPGI/Galvanized/Alu-Zinc/PPGL Sheets, G245-550
Control System:
PLC Control System
Shaft Material:
High Grade No.45 Forged
Cutting Blade Material:
Cr12, Heat Treatment
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
10 UNITS/MONTH
Highlight:

High Rib Panel Roll Forming Machine

,

Wall Panel Roll Forming Machine

,

High Rib Roll Forming Machine

Product Description

High rib roofing profile machine, wall panel roll forming machine with support clipping



Application:

This 95mm high rib roofing panel machine 95-885 we sold to Philippines before, for make the panel burden stronger strength, the fix clipping required

Metal sheet roll formers are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here.

Quick Detail:

  1. Thickness : 0.4-0.8mm
  2. Material : G550, pre-painted sheets
  3. Input width : 1219mm
  4. Coil ID: 510mm
    1. Effective width:895+/-4mm
    2. Material weight: 5MT
    3. Driven motor: 15kw motor with gear box
    4. Cutting blade Material: Cr12Mov, heat treatment

Machine list:

  1. 5T*1250mm hydraulic de-coiler as standard design
  2. Roll former
  3. Hydraulic cutter
  4. Run out rack
  5. PLC control system

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler

5TX1250mm hydraulic de-coiler as standard

You can also adopt 10 tons de-coiler with coil car is the coil weight is heavy such as 7/8/10 tons cap.

Taiwan famous Delta brand inverter

Hydraulic system to expand coil inner hole；Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Coil Outer-diameter Max.1500mm

Taper wedge expand type

Load Capacity: Max. 10 Tons

Coil Width Max. 1250mm

Driving motor with gear box to turn the coil, 5.5KW

manual frequency speed control

10 tons capacity coil car:

Up/down stroke of coil car: Max. 450mm

Forward/backward stroke of coil car: Max. 2000mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet, G550
Thickness 0.4-0.8mm
Coil feed in width 1219mm
Carriage Frame design Wall-plate-frame-design or stand frame design
Roll forming stages 22 stages
Material of forming roller Cr12, heat treatment
Shafts Diameter Φ95mm
Main motor power 15Kw with reducer
Line speed of roll former 15m/min or higher
Hydraulic group power 4.0 Kw
Cutting material Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or as request
Major Painting Color Customized and RAL5015 as standard
  • PLC Control System

Cut to length control

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Schneider brand low voltage electric elements

  • Product Rack 3 units, no power rack

Profile Drawing/Layout/Equipment reference pictures:

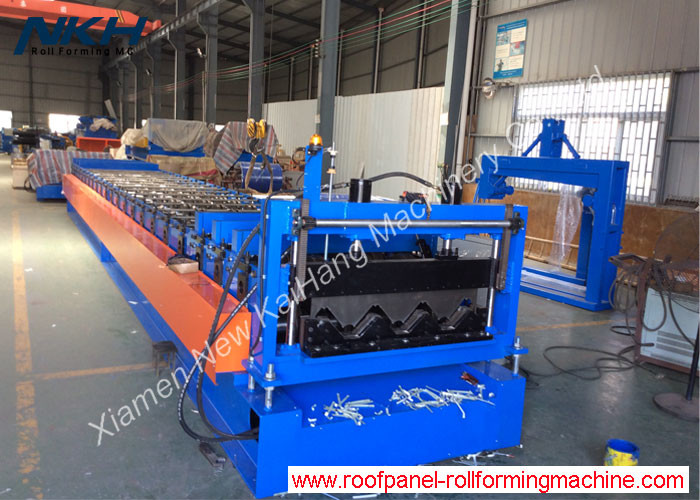

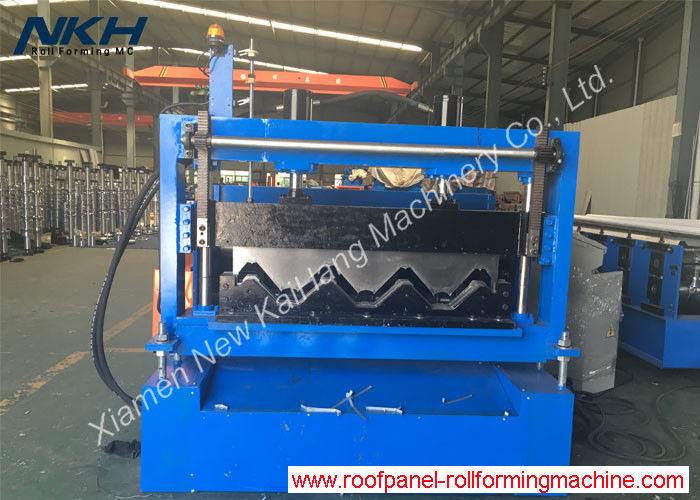

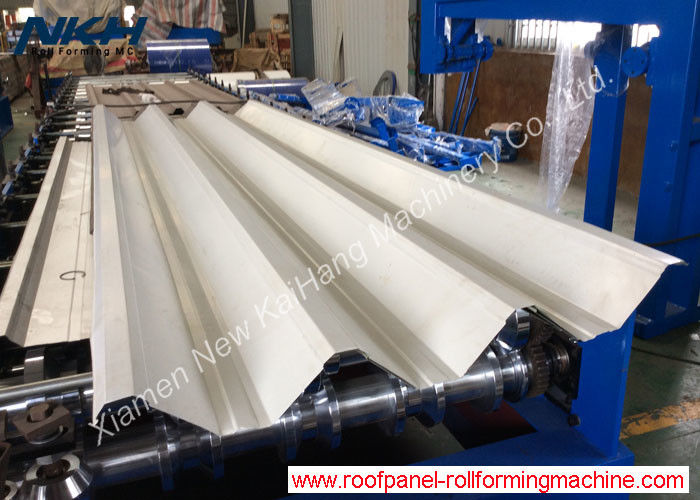

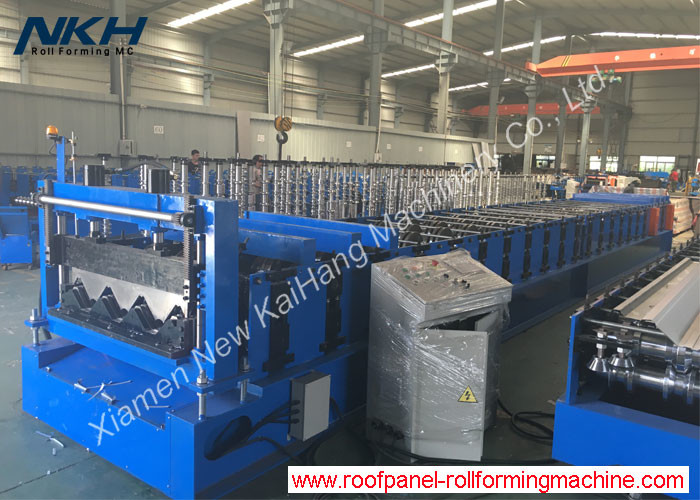

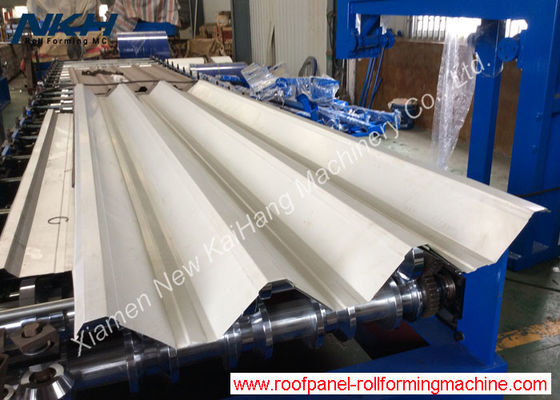

High Rib Roof Panel Roll Forming Machine , Wall Panel Roll Forming Machine 0High Rib Roof Panel Roll Forming Machine , Wall Panel Roll Forming Machine 1High Rib Roof Panel Roll Forming Machine , Wall Panel Roll Forming Machine 2High Rib Roof Panel Roll Forming Machine , Wall Panel Roll Forming Machine 3High Rib Roof Panel Roll Forming Machine , Wall Panel Roll Forming Machine 4
