Easy Operate Trapezoidal Sheet Roll Forming Machine 820 Type For PPGL Color Steel Steel

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX28-205-820
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Metal Sheet Roof Roll Forming Machine Weight: 5T
Roller Material: 45# Steel Raw Material: PPGI/Galvanized/Alu-Zinc/PPGL Sheets, G245-550
Shaft Material: High Grade No.45 Forged Cutting Blade Material: Cr12, Heat Treatment
Control System: PLC Control System
High Light:

corrugated sheet roll forming machine

,

wall panel roll forming machine

Product Description

Metal steel trapezoid panel roofing forming machine, 820 type, PPGL color steel



Features:

Metal sheet roll formers are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here.

A metal sheet roll forming machine is designed to produce roof panels, roofing step tiles and wall cladding sheets with different models, like IBR roofing sheets, corrugated roofing sheets, trapezoidal roof panels, IDT roofing sheets, Russian type 1100 metal step tiles, klip-lok 406 and klip-lok 700, standing seam roofing sheets, and concealed fixing roofing sheets etc.

The 28-205-820 type of roofing panel is very popular in market

Quick Detail:

  1. Thickness : 0.4-0.8mm
  2. Material : G550, pre-painted sheets
  3. Input width : 1000/1219mm
    1. Effective width: 820/1025+/-4mm
    2. Material weight: 5MT cap.
    3. Driven motor: by 5.5Kw or 7.5kw motor with gear box
    4. Cutter Material: Cr12, heat treatment

Machine list:

  1. 5T*1250mm hydraulic de-coiler as standard design
  2. Roll forming machine
  3. Hydraulic cutting device with LOGO pressing as option
  4. Run out table or pneumatic stacker
  5. PLC control system

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler with/without coil car

Please go to the un-coiler items for details

  • Manual Pre-shearing device

Smart cut

to cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet, G550
Thickness 0.42-0.8mm
Coil feed in width 1000/1219mm
Carriage Frame design Wall-plate-frame-design or stand frame design with good outlook
Roll forming stages 18-20 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75/95mm
Main motor power 7.5Kw with reducer
Rolling speed of roll former 18m/min or higher
Hydraulic group power 3/4.0 Kw
Cutting material Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or as the customer's requirements
Major Painting Color Customized and RAL5015 as standard
  • PLC Control System

Cut to length control

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Schneider brand low voltage electric elements

  • Product Rack rolled type normally

Profile Drawing/Layout/Equipment reference pictures:

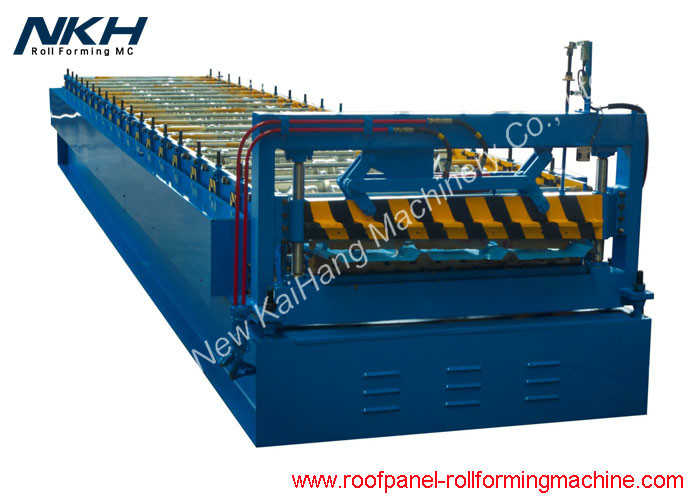

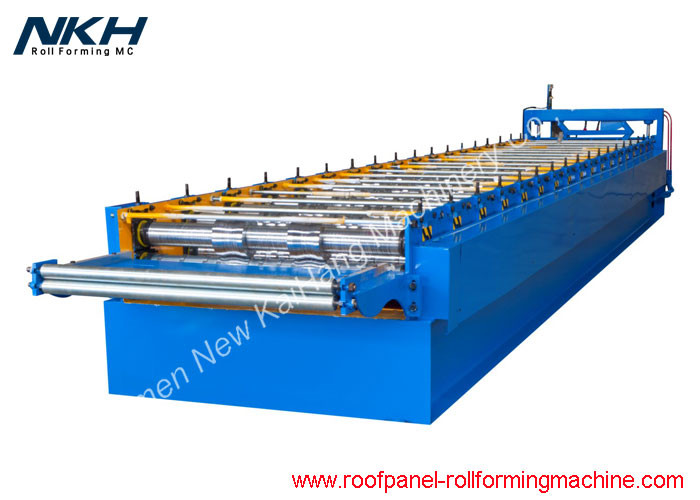

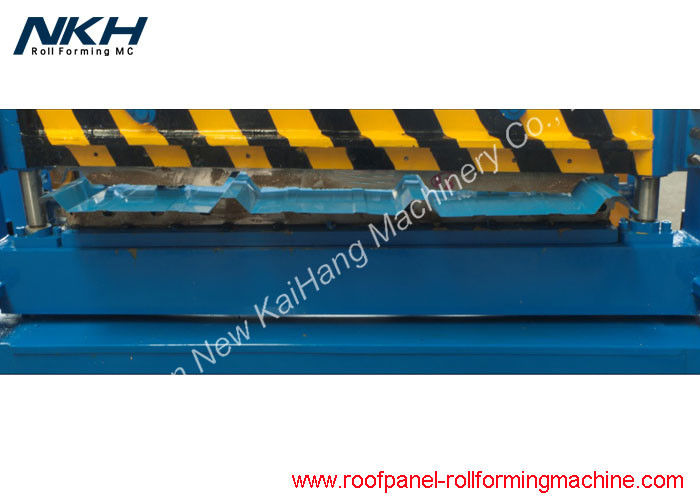

Easy Operate Trapezoidal Sheet Roll Forming Machine 820 Type For PPGL Color Steel Steel 0Easy Operate Trapezoidal Sheet Roll Forming Machine 820 Type For PPGL Color Steel Steel 1Easy Operate Trapezoidal Sheet Roll Forming Machine 820 Type For PPGL Color Steel Steel 2
