Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL

Product Details:
Place of Origin: CHINA
Certification: CE/SONCAP/CSA
Model Number: YX26-190-760
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Weight: 5T Control System: PLC Control System
Roller Material: 45# Steel Raw Material: PPGI/Galvanized/Alu-Zinc/PPGL Sheets, G245-550
Shaft Material: High Grade No.45 Forged Cutting Blade Material: Cr12, Heat Treatment
High Light:

corrugated sheet roll forming machine


roofing sheet roll forming machine

Product Description

Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL


YX23-190-760 profile machine is very popular in South Asia, such as in Malaysia, Myanmar, Indonesia with thin and full hard material with high speed requirement too

Quick Detail:

  1. Thickness : 0.18-0.3mm
  2. Material : G550, GGPI, PPGL
  3. Input width : 914mm
    1. Effective width: 760+/-4mm
    2. Material weight: 5MT cap.
    3. Coil inner diameter : 510+/-30mm
    4. Driven way: by 5.5kw motor with gear box
    5. Cutting Material: Cr12, heat treatment
    6. Cutting tolerance : ±1mm

Machine list:

  1. Hydraulic or manual un-coiler as request
  2. Roll former with tooling rollers
  3. Hydraulic cutting device
  4. Run out table or automatic stacking device
  5. PLC control systems

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler with coil car

Please refer to the item for details

  • Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control, to cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 0.15mm-0.20mm
Coil input width 750mm
Carriage Frame design Wall-plate-frame-design as classic design
Rol forming stages 18 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated with roller heat treatment for frequently used production
Shafts Diameter Φ75mm
Main motor power 5.5Kw with reducer
Rolling speed of roll former 18m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 3.0 Kw
Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or as the customer's requirements
Major Painting Color Customized and RAL5015 as standard
  • PLC Control System

Cut to length control

The precision controlled by Omron encoder and counting wheels

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Can show interface language as request

  • Product Rack rolled type normally can also be stacker

Profile Drawing/Layout/Equipment reference pictures:

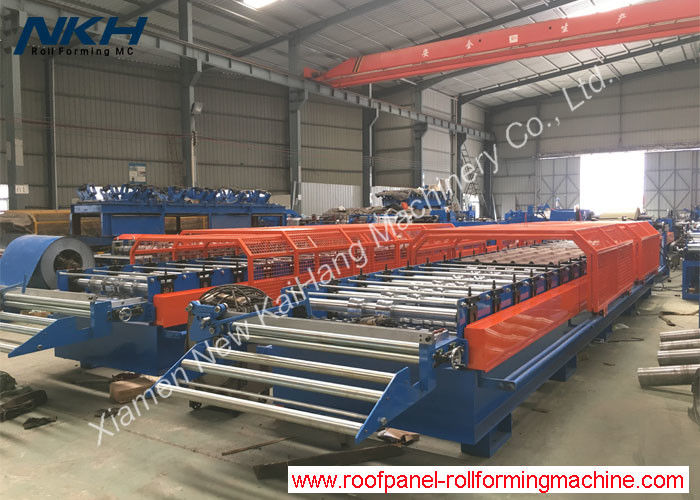

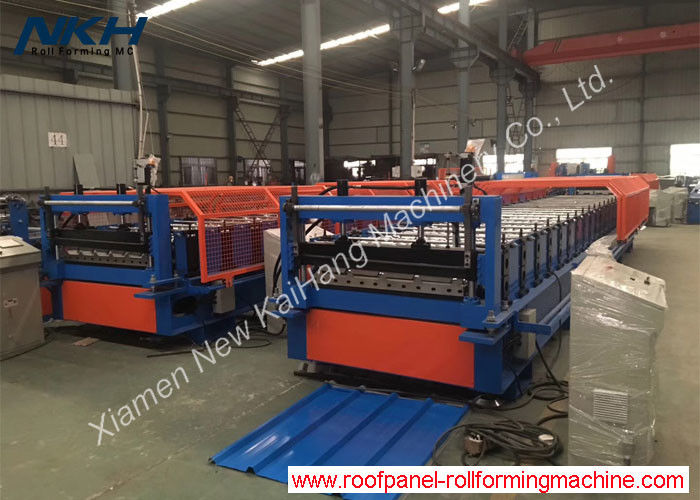

Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL 0Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL 1
