Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process
Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process

Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process

Product Details:
Place of Origin: China
Brand Name: NKH ROLL FORMING MC
Model Number: YX25-190-760
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: nude cargo for roll former, cartons for PLC, one machine/40,20 ft
Delivery Time: 45 working days
Supply Ability: 5 sets/months
Contact Now

Detail Information
Highlight:

sandwich panel making machine

,

pu sandwich panel machine

Product Description

Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process

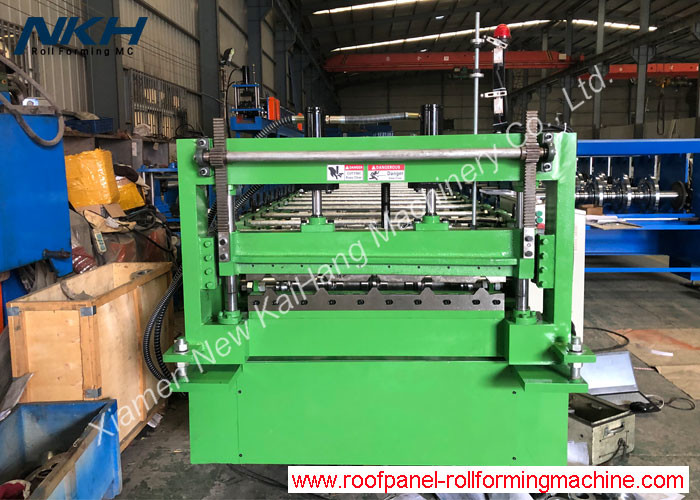

Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process 0

The roll forming machine details:



coil width 914mm
efficiency width 760mm
Material Thickness 0.2—0.45mm
Rolling Speed 25m/min
Roller Stations 18 stations
Roller material 45# steel, coated with chrome
Maim Motor Power 5.5kw
Hydraulic cutting Power 4kw
Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +/-2mm
Electric Source

415V, 50HZ,3 phases

Also can satisfy customer’s require
Control System PLC /touch screen
Way Of Drive 1.2 inches single chain



3. Features of the roll forming machine production line



decoiler-feeding table-roll forming machine- cutting part-run out rack

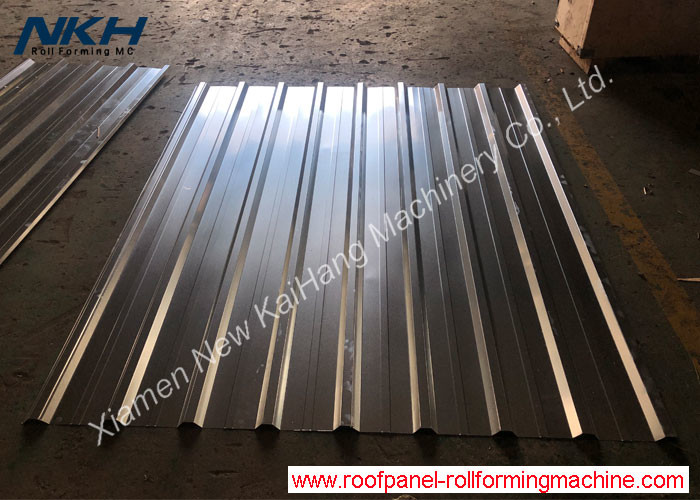

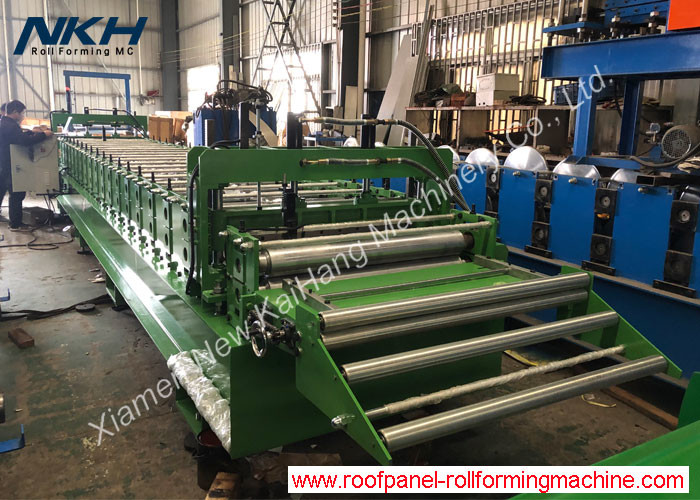

Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process 1Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process 2Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process 3
