Taiwan type high rib panel in roll former for strong typhoon,Roll Forming Machine For Solar Structure

Product Details:
Brand Name: NKH ROLL FORMING MC
Model Number: YX89-291-765
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude cargo, wrapping film wrap
Delivery Time: 10 working days
Supply Ability: 20 sets/month

Detail Information

High Light:

hydraulic press bending machine

,

hydraulic plate bending machine

Product Description

Taiwan type high rib panel in roll former for strong typhoon,Roll Forming Machine For Solar Structure



1.Description of solar panel support C chaneel roll forming machine



Solar Strut channel has been using for many years while installing solar power.

The biggest advantage of solar strut channel is that it helps in the construction and easily connects the length together and other items, by using different strut fasteners.

Strut channel can get jointed easily and quickly with minimal tools and labor. So in returns reduces the overall costs of the application. A strut channel installation can be easily modified or added to anywhere if needed.



Component and Function:



Article No. Item Name Specification
1 Width of feeding material 1220 mm coil sheet
2 Thickness of feeding material max 1.2mm coil sheet
3 Roller station 28 stations
4 Shaft Diameter 95 mm
5 Productivity 25 m/min
6 Rollers' material Bearing steel
7 Shaft material 45# steel
8 Weight 10 ton
9 length 14 m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 10 tons
13 Motor 22 kw
14 Driving way Chain transmission
15 Chain size 1.5-2 inch
16 Cutting system Hydraulic cutter




Roll Forming Machine Material of main equipment:



1) Roller material: high grade no. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at diameter 95mm
3) Cutter blade: Cr12 mould steel with quenched treatment
4) Electric elements: control system with PLC model SIEMENS SMART 2000, Low voltage schneider brand elements





Machine Pictures:

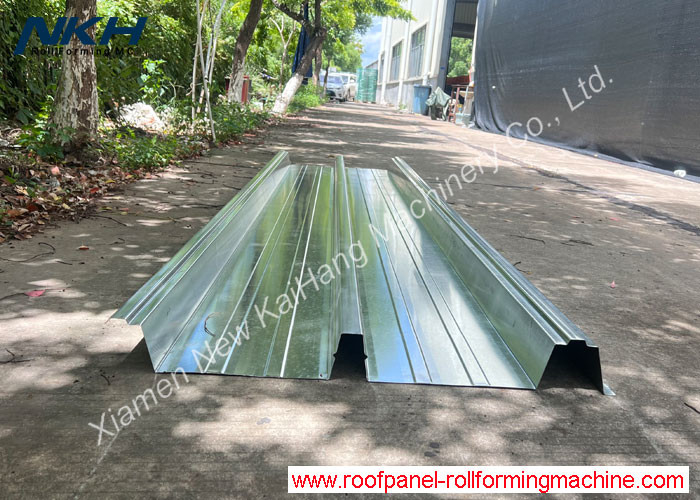

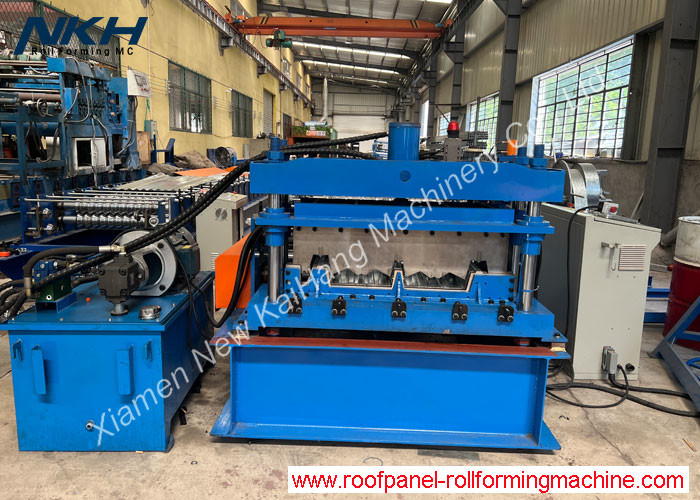

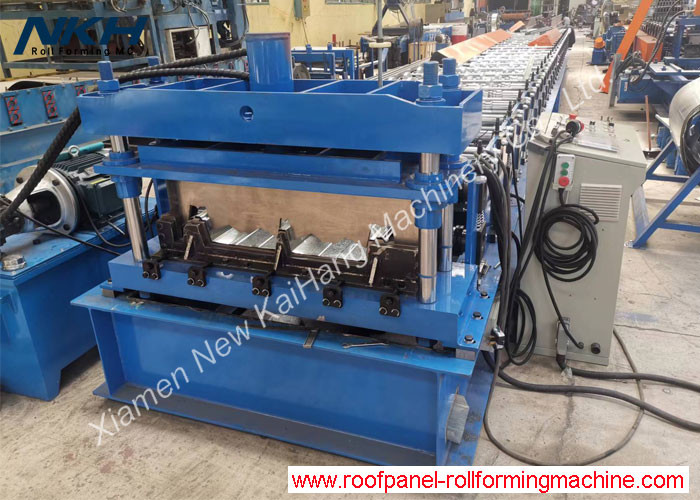

Taiwan type high rib panel in roll former for strong typhoon,Roll Forming Machine For Solar Structure 0Taiwan type high rib panel in roll former for strong typhoon,Roll Forming Machine For Solar Structure 1Taiwan type high rib panel in roll former for strong typhoon,Roll Forming Machine For Solar Structure 2
