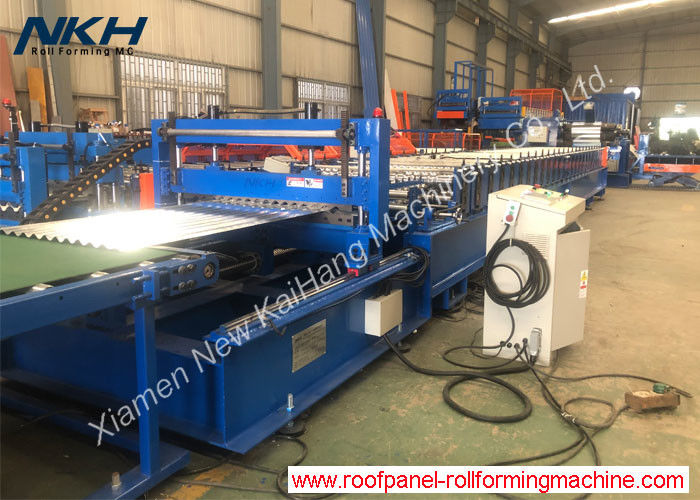

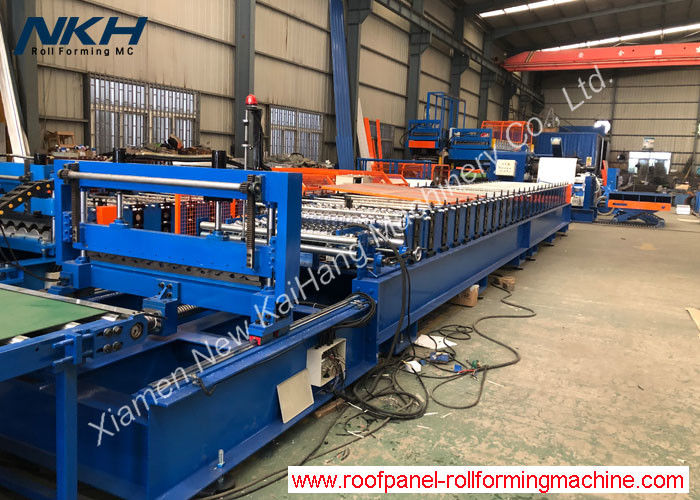

1000mm-1250mm Corrugated Panel Roll Forming Machine
| Brand Name: | NKH MACHINERY |
| Model Number: | YX17.5-1200 |
| MOQ: | 01 |
| Price: | Negotiation |
| Delivery Time: | 40 WORKING DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |
1250mm Corrugated Panel Roll Forming Machine
,fullyautomatic corrugated panel roll forming machine
,1250mm corrugated metal roofing machine
Full hard 1000mm-1250mm Corrugated Panel Roll Forming Machine Fully Automatic,Corrugated Sheet Roll Forming Machine

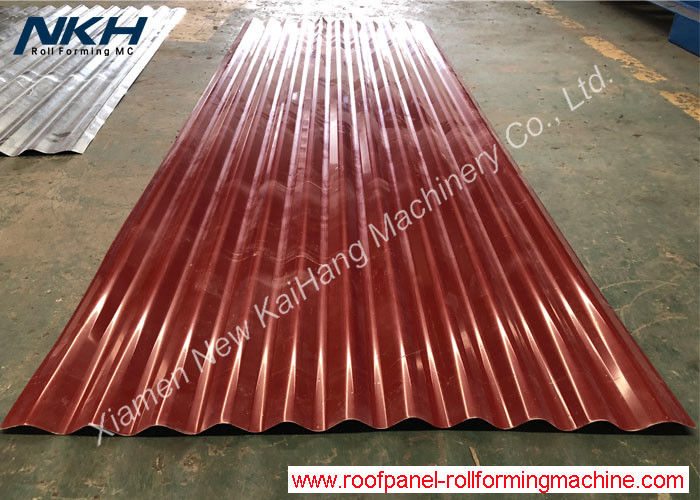

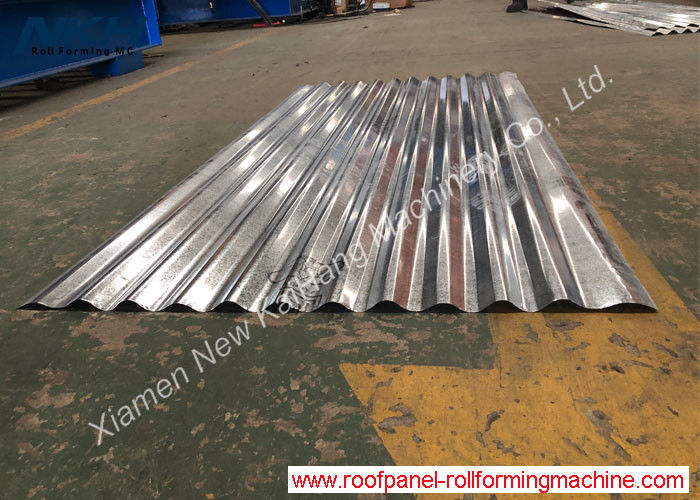

Corrugated Panel Roll Forming Machine is designed to make ibr and corrugated roof sheet.
Corrugated Panel Roll Forming Machine parameter
| Suitable material | Color steel sheet , galvanized steel sheet, |
| Main motor power | 11KW with Cycloidal reducer |
| Hydraulic station power | 5.5KW |
| Hydraulic oil | 36# |
| Thickness of material | 0.2mm~0.5mm |
| Diameter of principal axis | Φ95mm |
| Material expand width | 1000mm-1320mm |
| Electric tension | 415V 3phase 50HZ or as the customer's requirements |
| Material of roller | High grade 45# forged steel |
| Rolling galvanization thickness | 0.03mm |
| Processing speed | 25m/min |
| Processing precision within | 1.00mm |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Kind of drive | 0.6 inch chain link bearing model 6210 |
| Roller station | 24 Rollers |
Main Features
1. This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2. Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.
5. One year warranty.
6. we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7. One roll forming machine only can produce one profile.
