YX51-316-1000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming
| Brand Name: | NKH MACHINERY |
| Model Number: | YX51-316-1000 |
| MOQ: | 1 UNIT |
| Price: | negotiation |
| Delivery Time: | 90 WORKING DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |

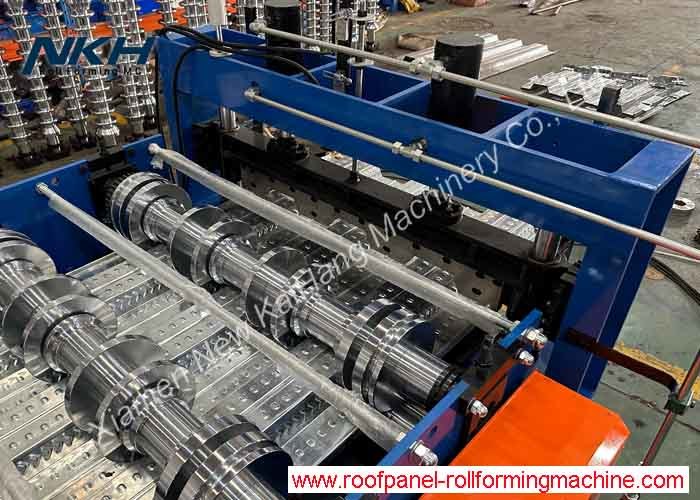

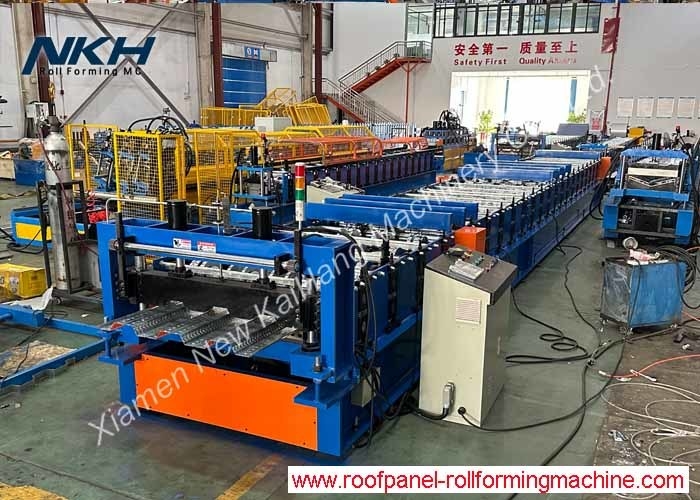

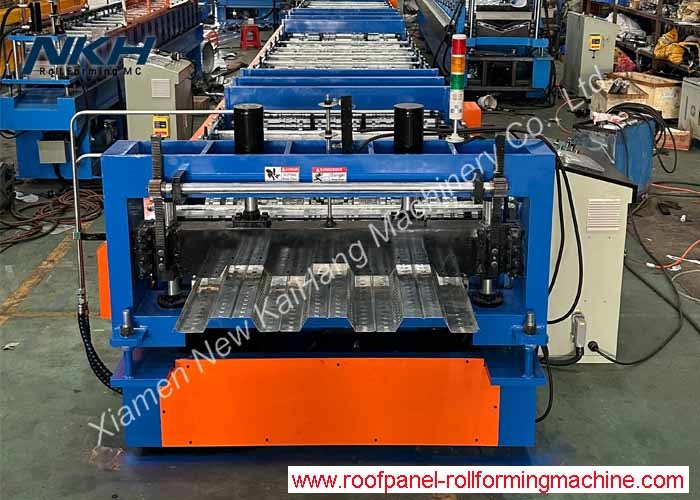

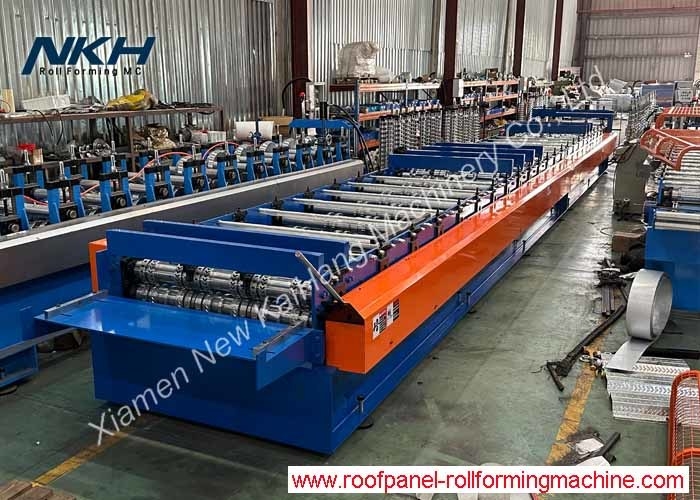

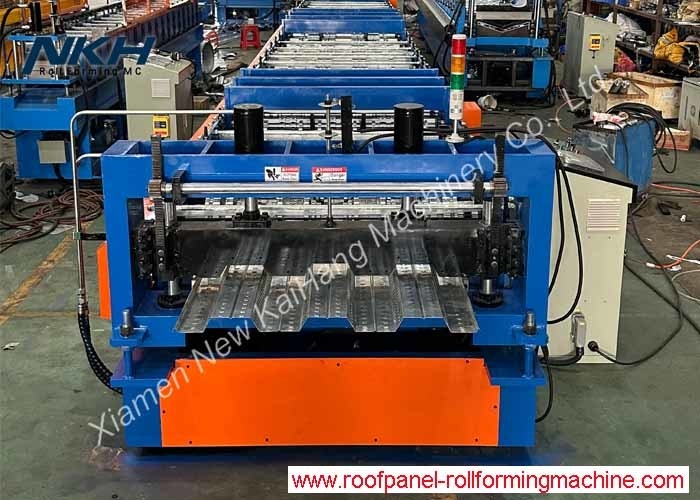

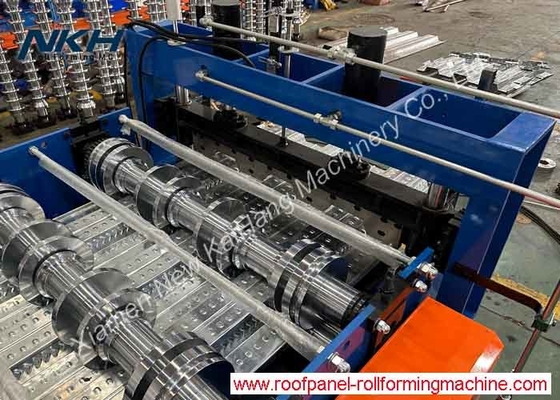

YX51-316-1000 Decking Roll Forming Machine
Description/Technical Parameter of Complete Line:
Quick Detail:
- Thickness : 0.7-0.9mm
- Material : Galvanized sheets, G350
- Material weight : 10tons
- Coil inner diameter : 510mm+/-+30mm
- Driven way: by driven motor
- Cutting way: by hydraulic group
- Cutting tolerance : ±2mm
Application:
Steel roof deck: The steel roof decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings;
Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.
Metal form deck: Metal form decks are produced and used extensively also in floor construction as a permanent steel base for poured reinforced concrete floor slabs.
Architectural deck: This kind of steel deck offers architects and engineers the ability to create amazing designing for striking and spacious interiors, as well as dramatic and high-performing exteriors.
Bridge deck: Where a bridge has main beams installed at suitable centers, steel decking may be placed across the beams without additional supports, suitable for new construction and bridge rehabilitation.
