845 Metal Roof Tile Roll Forming Machine with PLC Control
| Brand Name: | NKH MACHINERY |
| Model Number: | YX41-211-845 |
| MOQ: | 1 UNIT |
| Price: | negotiation |
| Delivery Time: | 90 WORKING DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
Metal Tile Forming Machine
Raw Material:
Pre-painted Coil Sheets
Coil Weight:
10Tons Or As Per Request
Roller Material:
45# Steel
Shaft Diameter:
75mm
Control System:
PLC Control System
Cutting Blade Material:
Cr12, Heat Treatment
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
5 UNITS/MONTH
Highlight:
PLC control metal roof tile machine
,845 roll forming roof tile machine
,metal roof tile forming equipment
Product Description
Metal Roof Tile Roll Forming Machine, Non-stop Pressing and Cutting
Application:

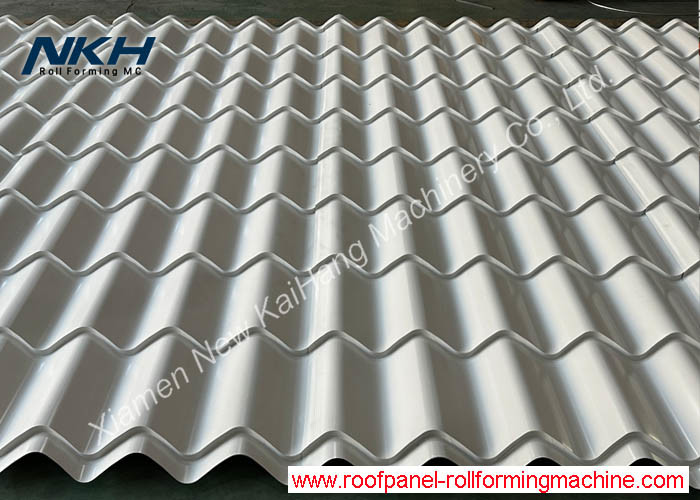

Metal step roof tiles produced by glazed tile roll forming machine from high quality pre-painted sheets most time apply as roofing on Villas or some residential buildings.
There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile !
Quick Detail:
- Thickness : 0.4mm-0.7mm
- Material : High quality pre-painted coil
- Input width : 1220mm
- Effective width: 845±4mm
- Material weight : 10tons as standard
- Driven way: Gear/Sprocket driving
Machine list:
- Hydraulic de-coiler or manual un-coiler rack
- Roll former
- Hydraulic stair drawing device, non-stop pressing
- Hydraulic cutting device, non-stop cutting
- Stacker
- PLC control systems

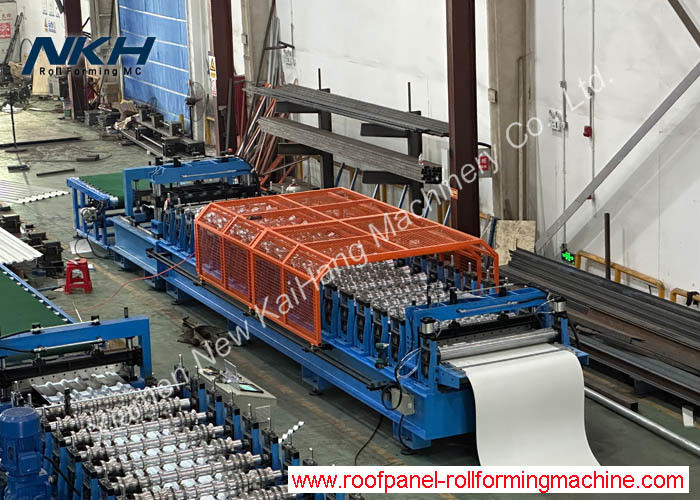

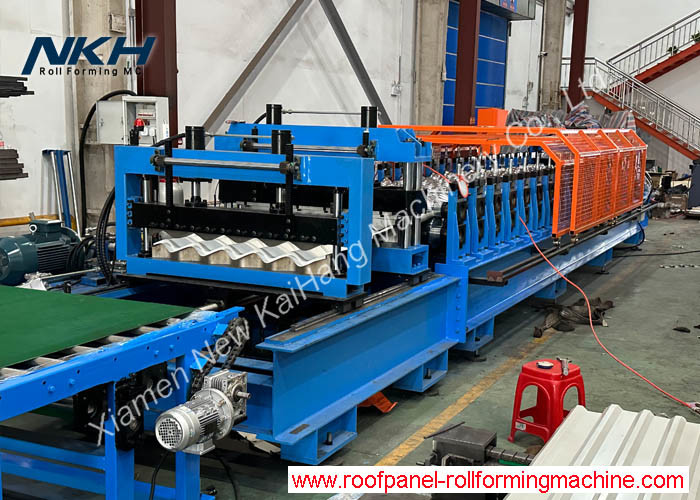

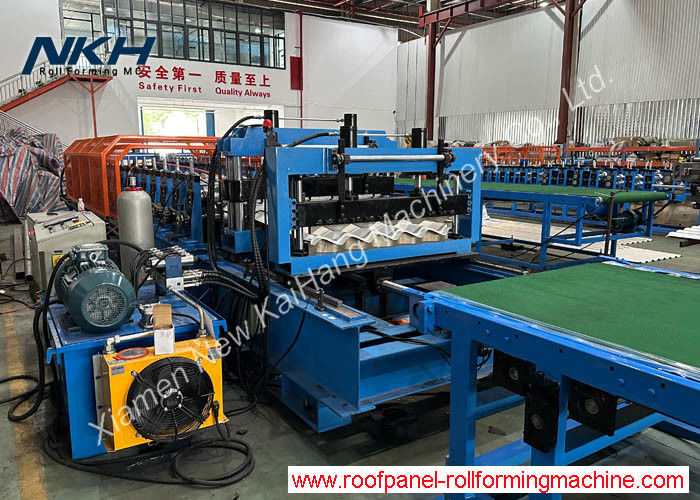

Drawings/Pictures of Complete Line:
video
