Downpipe Roll Forming Machine
Created with Pixso. Full Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty
Detail Information
Place of Origin:
CHINA
Certification:
CE/SONCAP/CSA
Name:
Roofing Sheet Roll Forming Machine
Weight:
5T Or As Per Request
Raw Material:
Pre-painted Coil Sheets, Soft Material
Shaft Diameter:
75mm
Control System:
PLC Control System
Cutting Blade Material:
Cr12, Heat Treatment
Roller Material:
45# Steel
Keyword:
Step Tile Roll Forming Machine
Packaging Details:
NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Supply Ability:
5 UNITS/MONTH
Highlight:

ppgl step tile roll forming machine

,

0.6mm step tile roll forming machine

,

ppgl tile roll forming machine

Product Description

Full Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty

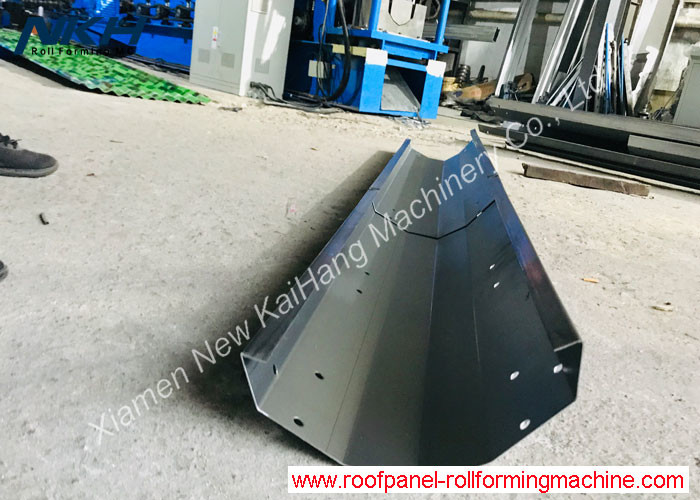

Full Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty 0

1. Product Application

This machine takes GI/PPGI as raw material, through a series steps and can produce the gutter sheets.

The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.


2. Working Flow:

Decoiler-------Feeding-------Roll forming-------Cutting------Finished product



3. Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



4. Technical parameters:

Raw material
material spec sheet, galvanized steel sheet, aluminum sheet
Input width TBC
thickness of coil sheet 0.5-0.7mm
Machine details
roller material high grade NO. 45 forged steel with hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 75mm or as your requirement
main frame 450 H steel
forming steps 18 rows
productivity 20-25 m/min
hydraulic station power 7.5KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr12 mould steel with quenched treatment

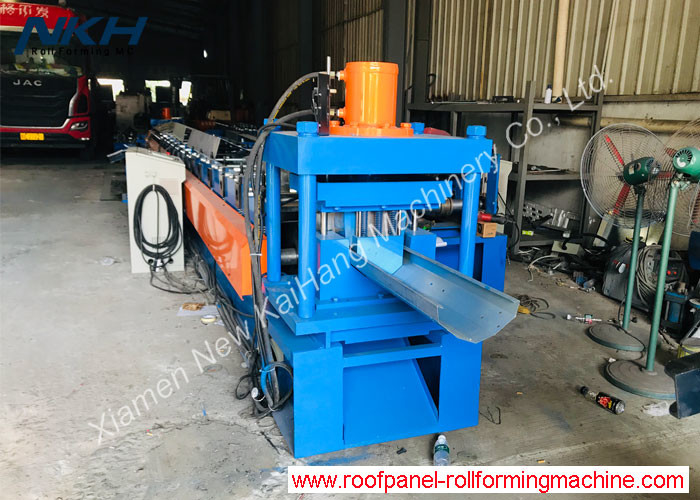

5. Machine picture

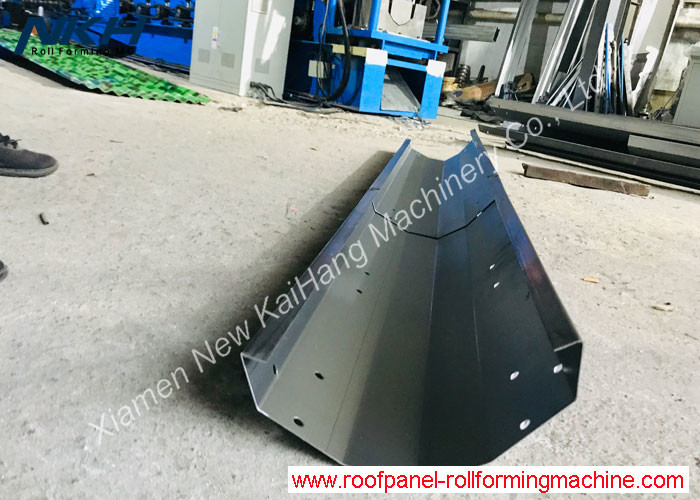

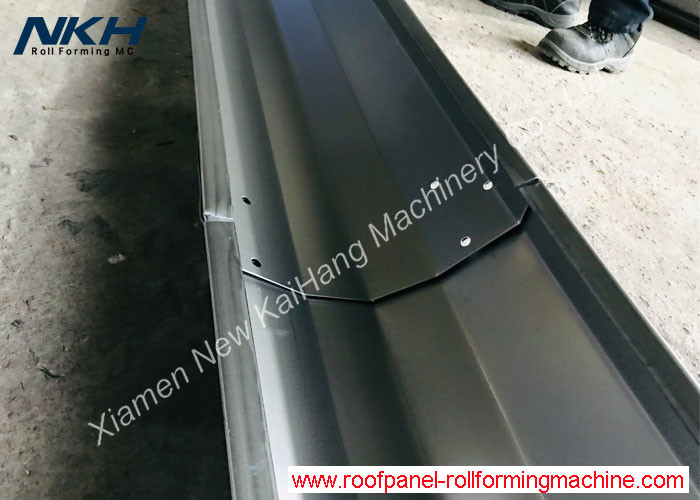

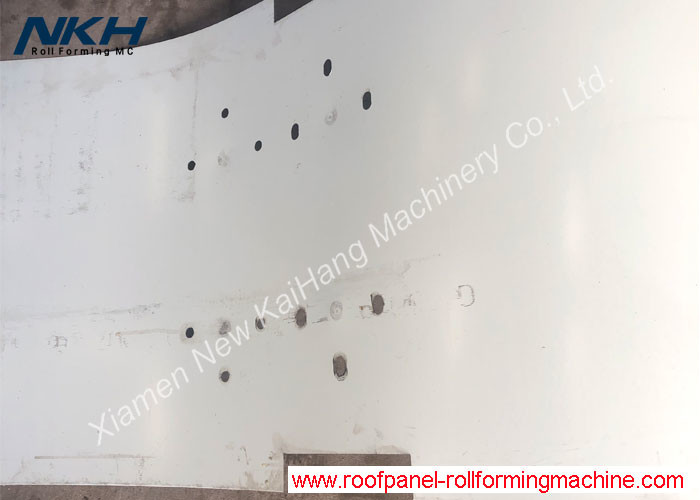

Full Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty 1Full Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty 2Full Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty 3
