Interchangeable C&Z Purlin Forming Machine Auto Exchange Quick Change

Product Description

C/ Z interchange purlin roll forming machine, auto exchange, quick change, interchangeable

Quick Detail:

1. Thickness : 1.5mm-3.0mm
2. Material : GI sheets, 245Mpa
3. Material weight : 5Mt
4. Coil inner diameter : 510mm
5. Driven way: by 15kw*2 driven motor
6. Cutting way: by stop to cut design
7. Cutting tolerance : ±1mm

Application:

Nowadays, there are c/z purlin roll forming machines which automatic change the sizes of C and Z steel purlins quickly (more at interchangeable c/z purlin rol forming macine).

Compared to traditional c/z purlin roll forming machines, an interchangeable machine can works much more efficient, since it takes only 10 minutes at most to produce z steel purlins of a different size. Generally, a Z steel section channel roll forming machine usually consists of a manual de-coiler, feeding guide with leveling device, hydraulic punching tools, roll forming part, hydraulic cutting, transmission system, a PLC control cabinet, a hydraulic oil pump and run-out tables.

Machine list:

1. Hydraulic De-coiler
2. Pre-leveling device
3. Hydraulic Pre-punching device

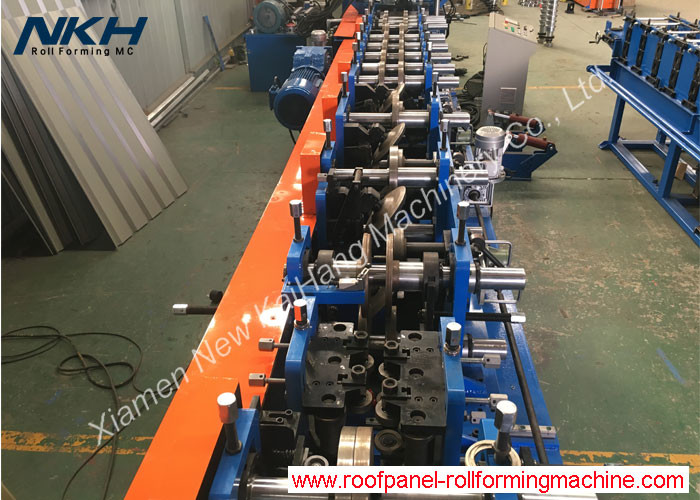

4. Roll forming machine with size change automatically
5. Hydraulic Post- cut device
6. Run out table
7. PLC control systems

Description/Technical Parameter details of complete line:

• 5TX600mm Hydraulic Un-coiler or manual de-coiler

Un-powered; Load capacity= MAX.5Ton

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil inner–diameter=510+/-30mm

Coil Width= MAX.600mm

Mandrel rotation: Draft type

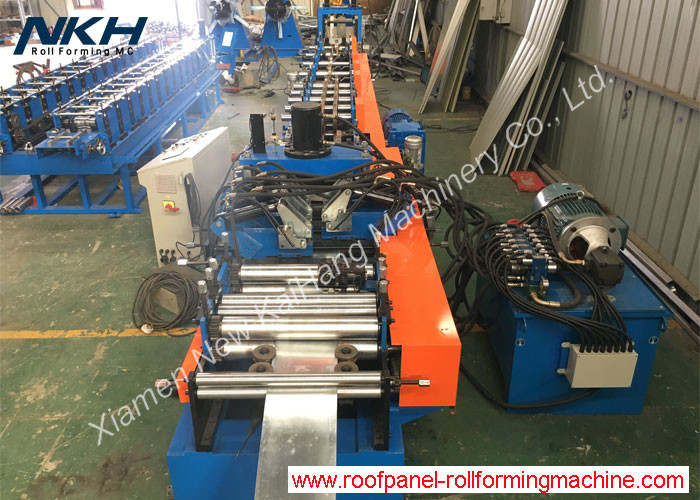

• Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

• Hydraulic Pre-punching/Pre-cutting device

Share in the same hydraulic group with post cut

Pre-shearing device to cut the first/end of the piece sheets of the coil

To punch below holes

Single slotted or round holes on web

Double slotted or round holes on web

Single slotted or round holes on flange each side

• Roll forming machine details as below table :

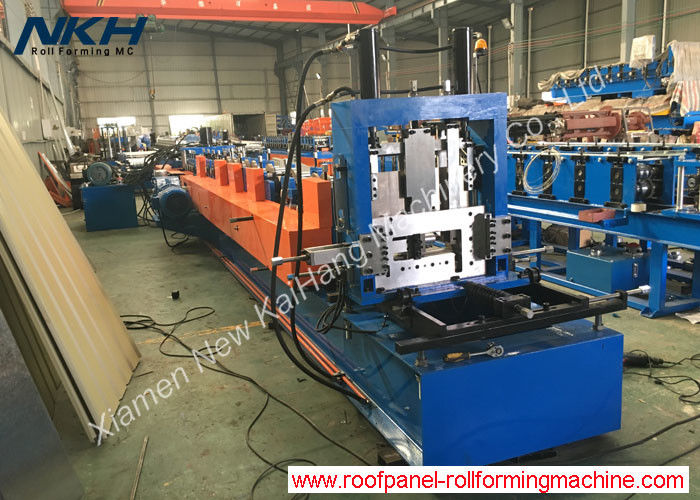

• Hydraulic Post-cut device

Hydraulic group: 11KW

Stop to cut design

There is waste after cut-off

All the sizes share in the same hydraulic group

Cutting material: Cr12, heat treatment

• PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

• Product Rack 4 meter long ,rolled type

Profile Drawing/Layout/Equipment reference pictures:
