U Shaped Seamless Gutter Machine , Gutter Roll Forming Machine For Making Steel Rainwater Gutter

This gutter roll forming machine line consists of Decoiler, Feeding guide, main roll forming machine, Hydraulic cutting device , Hydraulic Station, PLC computer control, Output table. They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.

A). Main Specification of Seamless Gutter Forming Machine

• Material thickness: 0.4-0.8mm
• Decoiler: Manaul or hydraulic decoiler
• Weight capacity of decoiler: 3 Ton
• Forming Station: 16
• Main motor power: 7.5KW
• Hydraulic power: 3.0KW
• Forming Speed: 25m/min
• Cutting blade material: Cr12 mould steel with quenched treatment.
• Cutting: Hydraulic cutting
• Drive: Chain transmission
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: SIEMENS Brand
• Encoder: OMRON Brand
• Transducer: SCHNEIDER/SHIHLIN Brand
• They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
• Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.

B). Main Components of Seamless Gutter Forming Machine

1. Decoiler ---------------------------------------------- 1 Unit
2. Feeding section ------------------------------------- 1 Unit
3. Main roll forming machine ------------------------ 1 Unit
4. Hydraulic cutting device -------------------------- 1 Unit
5. Hydraulic Station ----------------------------------- 1 Unit
6. PLC computer control ----------------------------- 1 Unit
7. Output table ----------------------------------------- 1 Unit

C). Working Flow of Seamless Gutter Forming Machine
Decoiler--> Coil sheet guiding and feeding --> Roll forming machine --> Cut to length --> Out-put Table

D). Application

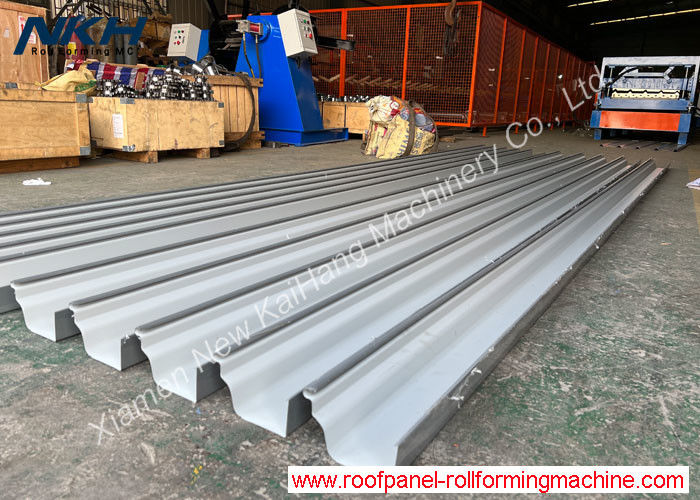

Rainwater gutter, k gutter, half round gutter, box gutter

They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.


E). Competitive Advantages

1.Durable and widely used products
2.Simple to operate when assemble
3.Easy to handle the products
4.Direct manufacturer, provide with high quality and best price.
5.Provide sample in free.
6.Cutting service.
7.Products and design solution supplied fast and freely
8.Best design oriented for your special requirements
9.Lifelong technical support
10.Professional team support
11.Standard Design

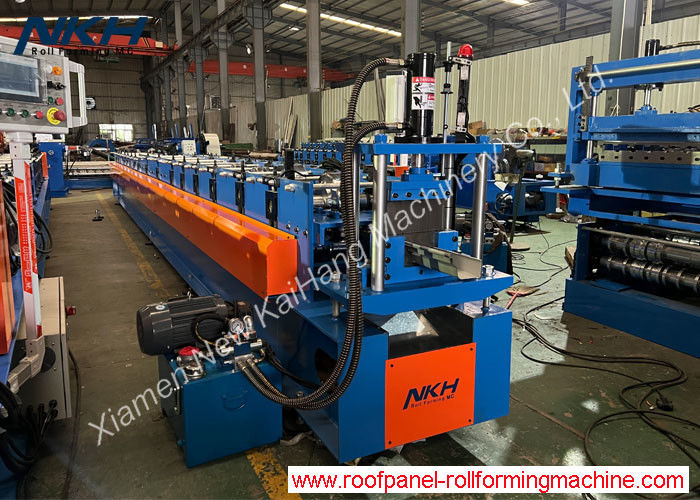

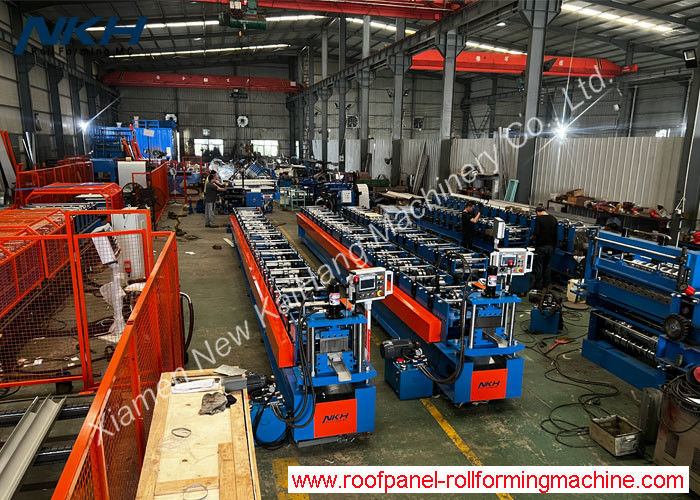

F). Machine Pictures
