GI Sheets G350 Purlin Roll Forming Machine Driven Motor
GI Sheets G350 Purlin Roll Forming Machine Driven Motor

GI Sheets G350 Purlin Roll Forming Machine Driven Motor

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: C75
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 05 UNITS/MONTH
Contact Now

Detail Information
Name: Purlin Roll Forming Machine Raw Material: GI Sheets, G350
Shaft Diameter: 75mm Cutting Blade Material: Cr12, Heat Treatment
Coil Weight: 5T Or As Request Warranty: 12 Months
High Light:

G350 Purlin Roll Forming Machine

,

GI Sheets Purlin Roll Forming Machine

,

G350 cz purlin machine

Product Description

GI Sheets G350 Purlin Roll Forming Machine Driven Motor​



Purlin Roll Forming Machine Quick Detail:



1. Produce different purlin size without changing rollers or sfacers
2. Pre-cutting design,no need changing cutter for different size
3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range),help to save material
5. Optional punch hole at any positon of purlin web


Purlin Roll Forming Machine Application:



It is used to colume as C75, C100

  1. Hydraulic De-coiler or Manual Un-coiler rack
  2. Roll forming machine
  3. Hydraulic Post-punch & Post- cut device
  4. Run out table
  5. PLC control systems

Description/Technical Parameter details of complete line:

  • 1.5TX300mm Driven Un-coiler

        You can adopt to :

        Manual de-coiler

         Driven de-coiler

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 1.5-3.0mm
Carriage Frame design wall-plate-frame-type
Rolling mills forming stages 14 stages
Material of forming roller Cr12, heat treatment
Shafts Diameter Φ75mm
Main motor power 7.5Kw
Production speed 18m/min
Hydraulic group power 5.5Kw
Material of cutting blade Cr12, heat treatment
Electric Voltage Standard 415V/50Hz/3PH or as request
Major Color of Machine Painted RAL 5015(Blue) or as request
  • PLC Control System

        Control the quantity & cutting length automatically

        Combined with: Siemens brand PLC and Touch Screen

        Schneider brand Inverter, Omron encoder, etc

        Cut-to-length tolerance≤±1mm

        Control voltage 24V

  • Product Rack 4 meter long ,rolled type

Profile Drawing/Layout/Equipment reference pictures:

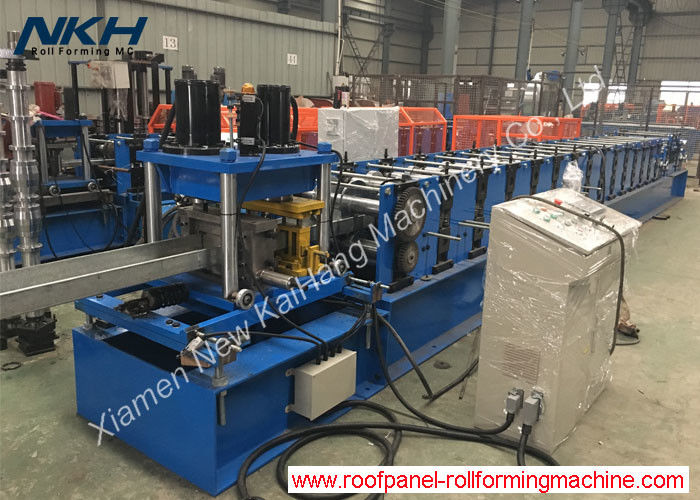

GI Sheets G350 Purlin Roll Forming Machine Driven Motor 0

GI Sheets G350 Purlin Roll Forming Machine Driven Motor 1
