Aluminum / Steel Downpipe Roll Forming Machine 0.4-0.6mm Thickness With PLC Control System

Product Description

Aluminum/ steel pipe roll forming machine, rainspout steel rolling machine, 0.4-0.6mm

Quick Detail:

1. Thickness : 0.4-0.6mm

2. Material : Galvanized Sheets

3. Input width : 345mm

4. Material weight : 3MT

5. Coil inner diameter :470 mm

6. Driven way: by driven motor

7. Cutting way: no waste cut

8. Cutting tolerance : ±1mm

Application:

Right at this moment there are two kinds of downspout roll forming machines in the market for the manufacturing of square and round rainspouts: Stationary downpipe roll forming machine and Portable downpipe roll forming machine.

Stationary downpipe roll forming machine or downspout roll forming machine which is strong and suitable for massive production of steel pipes; while a portable downpipe roll forming machine has been designed for onsite production because it’s light weight and usually mounted on a trailer, but it’s not as a good choice as a stationary machine as long as massive production for downspouts or downpipes is concerned.

Machine list:

1. 3T*600mm hydraulic un-coiler or manual un-coiler

2. Roll former

3. Hydraulic cutting device

4. Run out table

5. PLC control systems

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic Un-Coiler

              Hydraulic system for expansion coil-inner-hole with 4 palms

              Link-connect expanding system

              Pump power=1.5KW

              Load capacity=3 Ton; Coil Inner – diameter =451-530 mm

              Coil outer-diameter=Max. 1500 mm

              Coiler Width=Max. 600 mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 4 meter long

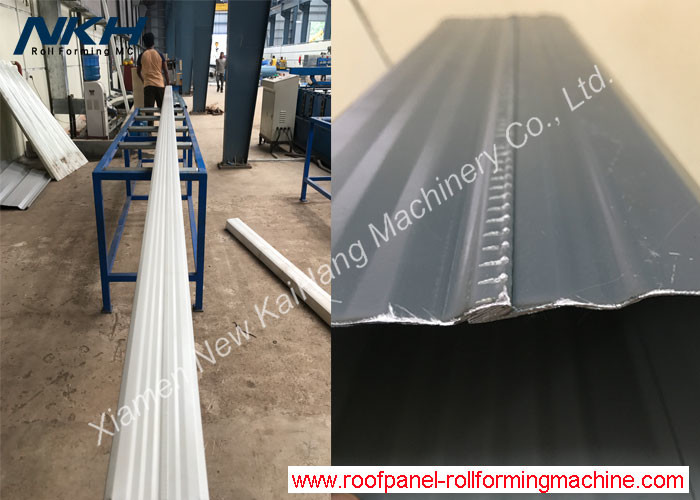

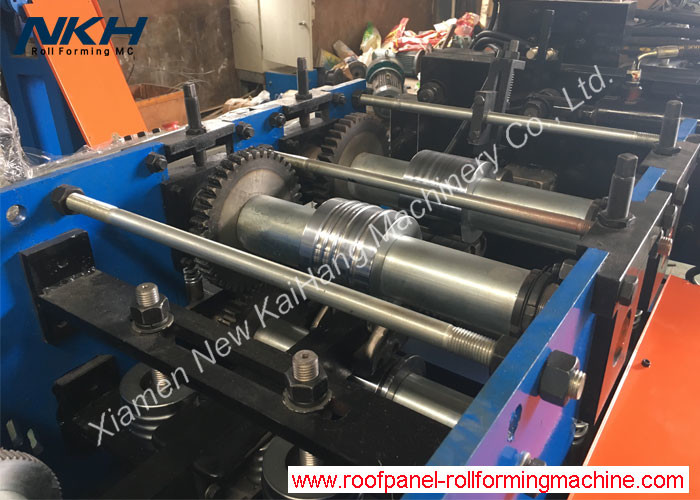

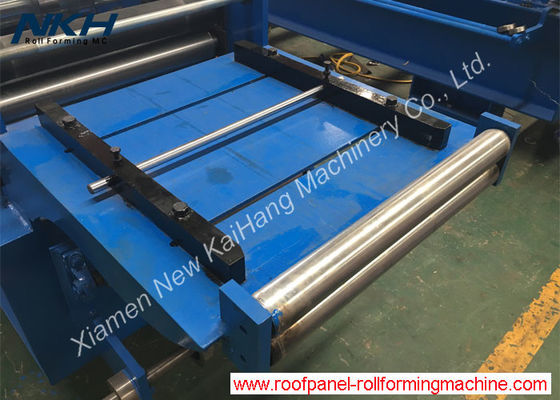

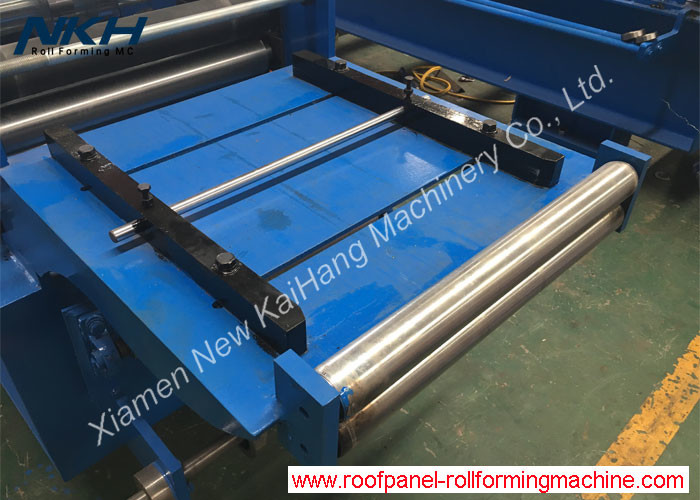

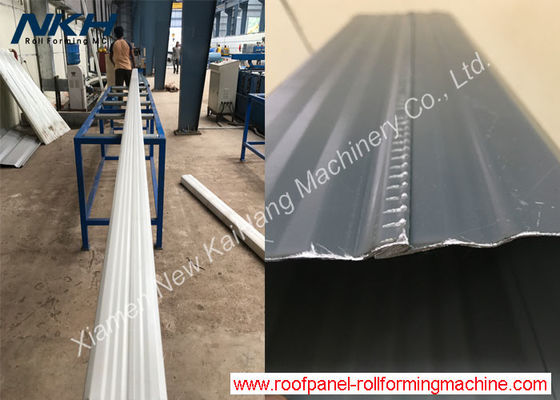

Profile Drawing/Layout/Equipment reference pictures:
