Smart Design Downpipe Forming Machine , Metal Sheet Making Machine For Duct

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX25.3*20
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Downspout Roll Forming Machine Coil Weight: 1.5T Or As Per Request
Roller Material: 45# Steel, Heat Treatment, Hard Chrome Coated Raw Material: GI Sheets, G350-550
Cutting Blade Material: Cr12, Heat Treatment Warranty: 12months
High Light:

downspout roll forming machine

,

steel sheet roll forming machine

Product Description

Roll forming machine for duct, smart design, 0.3mm thick, metal sheets making machine



Quick Detail:

  1. Thickness : 0.6-0.8mm
  2. Material : Galvanized steel
  3. Material weight: 1.5MT cap.
  4. Driven way: by 4Kw driven motor
  5. Cutting tolerance : ±1mm

Machine list:

  1. 1.5MT*300mm manual un-coiler
  2. Roll forming machine
  3. Electric saw cut
  4. Run out table
  5. PLC control system

Description/Technical Parameter details of complete line:

  • 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material galvanized steel sheet
Thickness 0.6mm-0.8mm
Carriage Frame design Wall-plate-frame-design

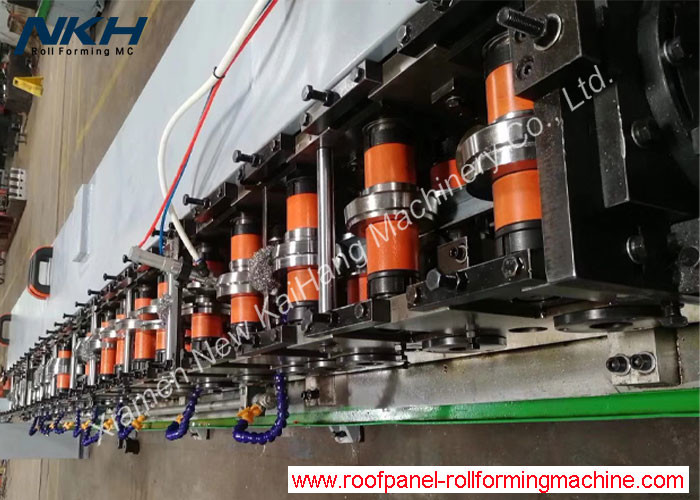

Rolling mills forming stages 16 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ65mm
Main motor power 4Kw with reducer
Line speed of roll former 15mtr per min
Electric Voltage Standard 415V/50Hz/3PH or requirements
Major Color of Machine Painted RAL 5015(Blue) or customized

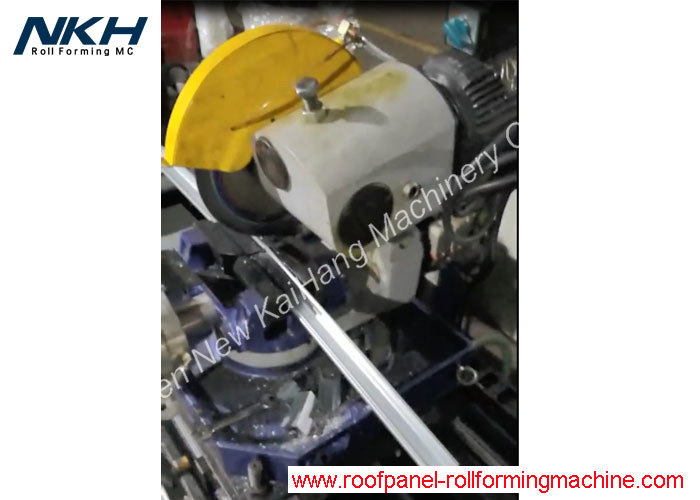

  • Electric saw cutting device

To get the perfect outcome, saw cut adapted

Burrs occur when cut fast

  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

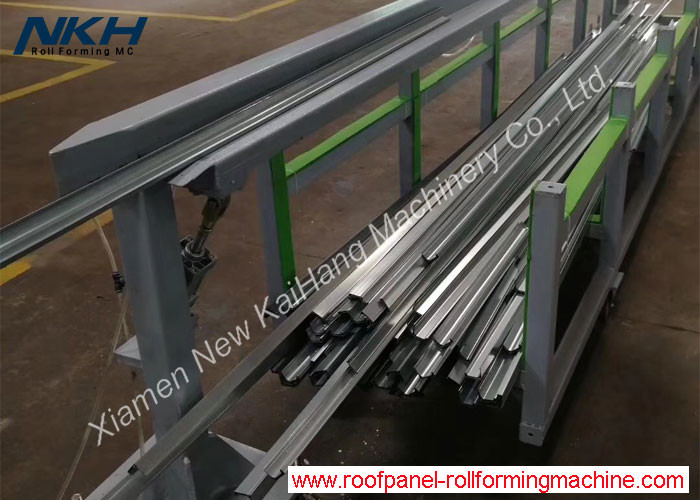

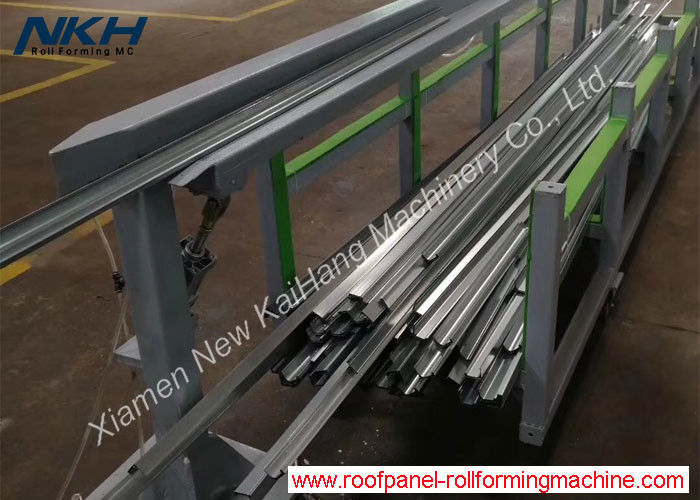

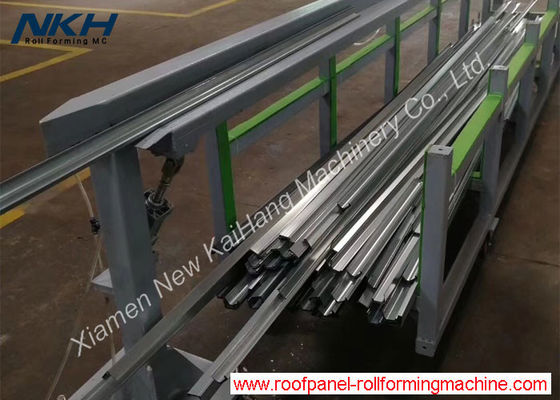

  • Product Rack 4 meter length rolled type

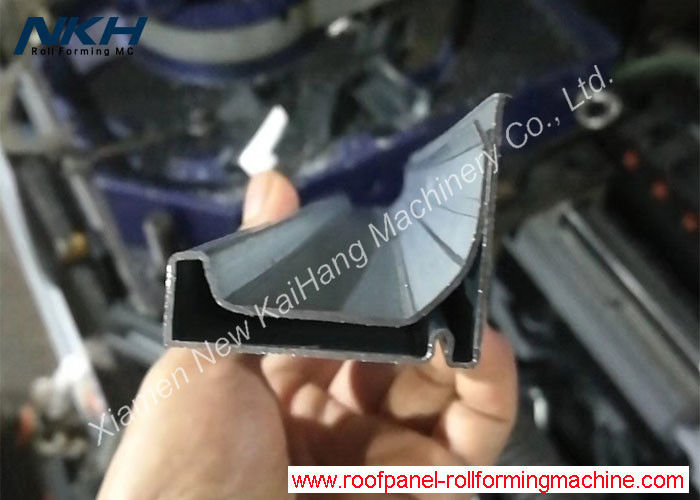

Profile Drawing/Layout/Equipment reference pictures:
