Standard Standing Seam Roll Forming Machine BEMO Roof Panel Flex Lok Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX65-430
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Standing Seam Panel Machine Raw Material: GI/Galaluminium Sheets
Shaft Diameter: 75mm Cutting Blade Material: Cr12, Heat Treatment
Warranty: 12months Roller Material: 45# Steel
High Light:

standing seam metal roof machine

,

standing seam panel machine

Product Description

Flex lok making machine, standing seam roll former, BEMO roof panel, aluminum panel



Brief Introduction standing seam roof sheet roll forming machine:

There are standard standing seam roof panels such as 50-333, 50-429, 65-305, 65-333, 65-400, 65-459 and 65-500, and these profiles can be straight sheet, or tapered sheets. Like other concealed fixing standing seam roofing sheet roll forming machine, standing seam sheet roll forming machine can also handle with different widths material and manufacture different standing seam sheets on the same machine, like one machine can make both 65-400 and 65-450 type roof panels which joint with each other through clips too. Nowadays, Chinese manufactures develop a new type 2-in-1 roll forming machine which can make both straight sheet and tapered roof sheets (the production of tapered roof panels is semi-automatic).

Quick Detail:

  1. Thickness : 0.4-0.8mm
  2. Material : aluminum, steel, copper, stainless steel and titanium zinc
  3. Input width : 478/478/608mm
  4. Effective width: 300mm/400mm/430mm
  5. Material weight : 3MT
  6. Coil inner diameter : 508mm
  7. Driven way: by driven motor
  8. Cutting way: by hydraulic power pack
  9. Cutting tolerance : ±1mm

Machine list:

  1. 3T*600mm hydraulic un-coiler
  2. Roll forming machine
  3. Hydraulic cutting device
  4. Run out table
  5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

  • 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Pump power=1.5KW

Link-connect expanding system

Load capacity=3Ton

Coiler Width=Max. 600mm

Coil Inner – diameter =451-530mm

Coil outer-diameter=Max. 1500mm

  • Polythene film on device before feed in
  • Entry Roller & Manual Pre-shearing device (Un-powered)

To cut off the end of the final piece of sheet only

Working thickness: max.0.8mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material PPGI/PPGL/GI/ALU-ZINC sheets
Thickness 0.6-1.0mm
Coil input width Approx. 610mm
Carriage Frame design Wall-plate-frame-design with18mm wall thickness
Roll forming stages 15+3 stages including 3 stages for middle embossing
Roller material 45# steel, CNC lathes, Hard chrome coated
Shafts Diameter Φ75mm
Main motor power 5.5Kw/7.5Kw with reducer
Line speed of roll former 15m/min
Hydraulic group power 3.0 Kw
Cutting way Hydraulic cutting with waste after cut-off
Electric Voltage Standard 380V/50Hz/3Ph or as requirements
Machine Color Painted RAL 5015(Blue) or as requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, 3 units

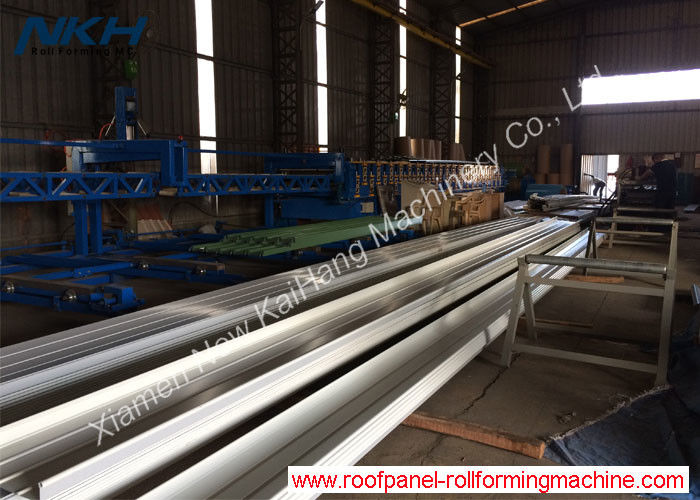

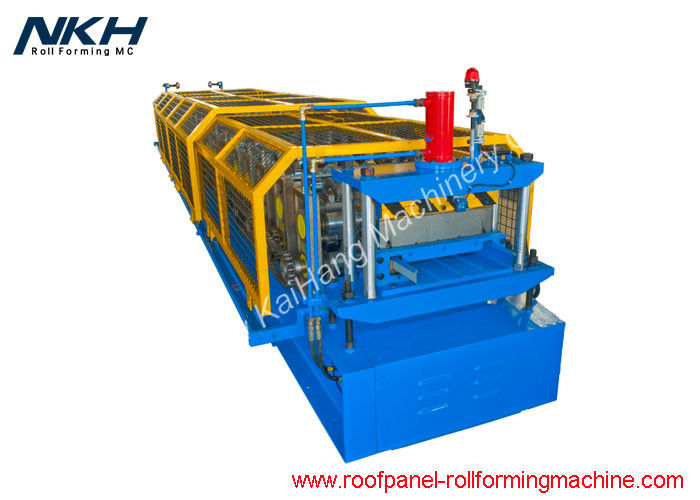

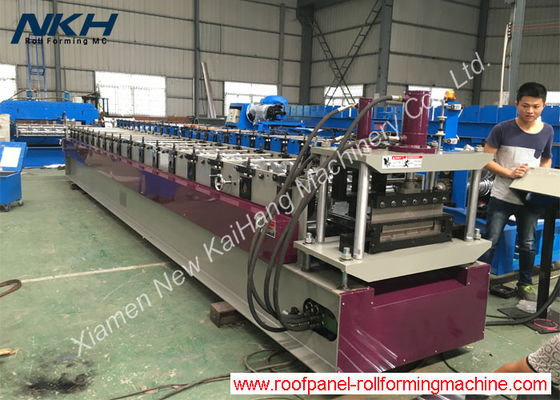

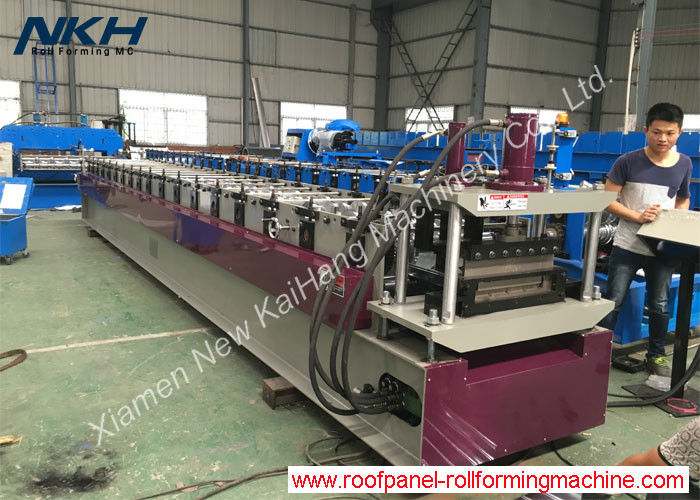

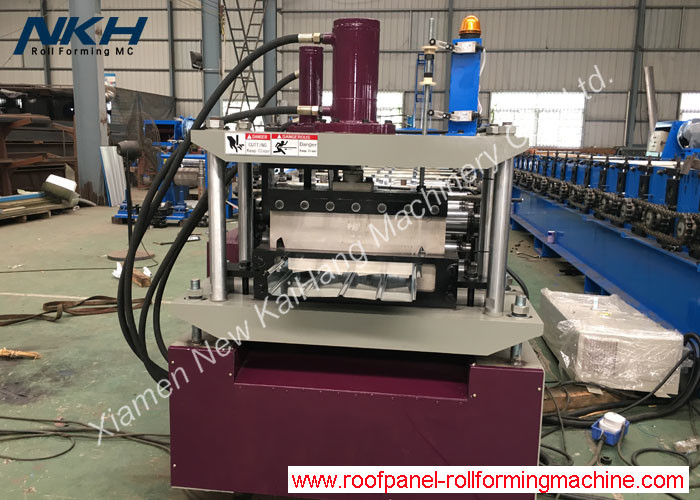

Profile Drawing/Layout/Equipment reference pictures:



Standard Standing Seam Roll Forming Machine BEMO Roof Panel Flex Lok Making Machine 0Standard Standing Seam Roll Forming Machine BEMO Roof Panel Flex Lok Making Machine 1
