Klik Roofing Standing Seam Roll Forming Machine With Fasten Clip 12 Months Warranty

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX44.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Coil Weight: 3T Or As Request Raw Material: GI/Galaluminium Sheets
Cutting Blade Material: Cr12, Heat Treatment Warranty: 12months
Roller Material: 45# Steel Shaft Diameter: 75mm
High Light:

standing seam panel machine

,

standing seam roll former

Product Description

Klik roofing standing seam roll forming machine with fasten clip

Quick Detail:

  1. Thickness : 0.4-0.8mm
  2. Material : GI/Alu-zinc/ Aluminum/PPGL
  3. Input width : 458/559/610mm
  4. Effective width: 304/406/457mm
  5. Material weight : 3MT
  6. Coil inner diameter : 508mm
  7. Driven way: by 7.5Kw driven motor
  8. Cutting way: by 4.0Kw hydraulic cutting device
  9. Cutting tolerance : ±1mm

Application:

Compared to a regular roof panel roll forming machine, a standing seam roll forming machine has smaller sizes in body but more sophisticated rolling tools.

Standing Seam Metal Roofing is a fully interlocking roof system. Its unique design mechanical-lock design forms a weather-tight unit, and unlike some other types of panel metal roofs, no rivets or screws are exposed on the surface of the panels. It may be installed on new construction or applied over existing roofs. All trims and caps are designed to ensure an integrated weather-proof roof.



Machine list:

  1. 3T*600mm hydraulic un-coiler
  2. Polythene film device as request
  3. Roll former
  4. Hydraulic cutting device
  5. Run out table
  6. PLC control systems

Description/Technical Parameter details of complete line:

  • 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Link-connect expanding system

Pump power=1.5KW

Frequency Inverter to regulate turning speed: Motor: 2.2KW

Load capacity=3 Ton;

Coil Inner – diameter =451-530 mm

Coil outer-diameter=Max. 1500 mm

Coiler Width=Max. 600 mm

Driving motor to turn the coil

  • Polythene film on device before feed in
  • Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control,

To cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

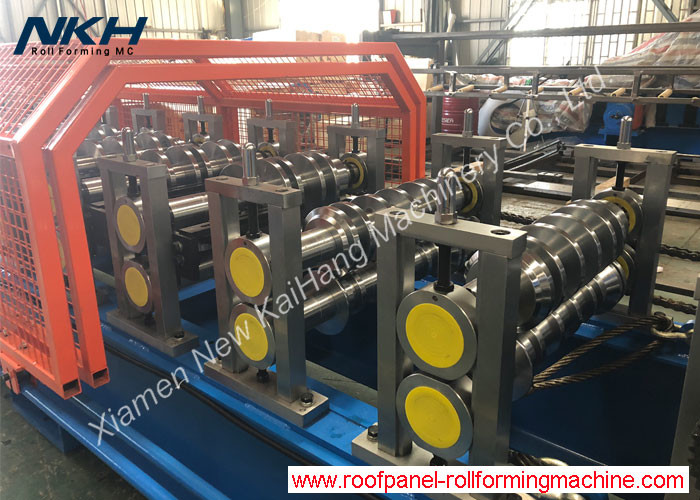

  • Roll forming machine with cutting details as below table :
Suitable roll forming material PPGI/PPGL/GI/ALU-ZINC sheets
Thickness 0.4mm-0.8mm
Coil input width 458/559/610mm
Carriage Frame design Wall-plate-frame-design with 18mm wall thickness
Rolling mills forming stages 18 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 7.5Kw with reducer
Rolling speed of roll former 15-20m/min
Hydraulic group power 4.0 Kw
Cutting way Hydraulic cutting with waste after cut-off
Electric Voltage Standard 380V/50Hz/3PH or as requirements
Machine Color Painted RAL 5015(Blue) or as requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack 4 meter long, rolled type

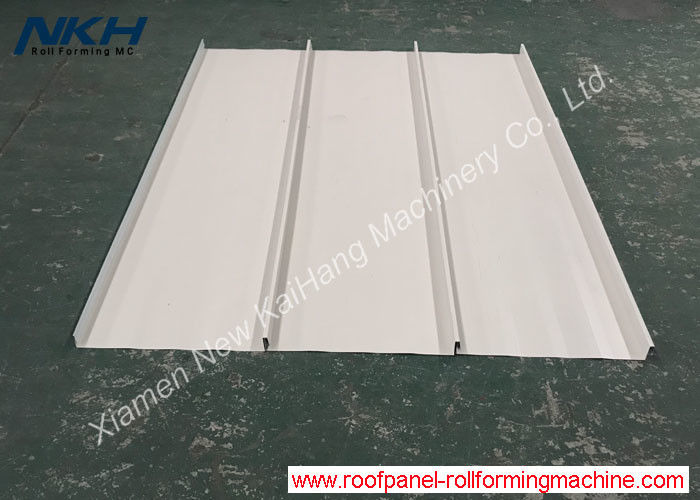

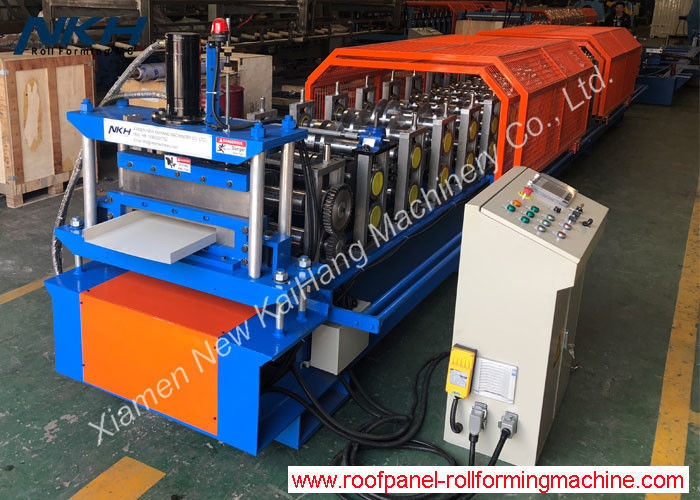

Profile Drawing/Layout/Equipment reference pictures:
