4 Kw Sandwich Panel Roll Forming Machine PU Rolling Shutter Slats Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX20-92.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 UNITS/MONTH

Detail Information

Name: Sandwich Panel Roll Forming Machine Function: Work With PU Line
Roller Material: 45#, CNC, Heat Treatment, Hard Chrome Coated Raw Material: Pre-painted Sheets, G350-550
Shaft Diameter: 65mm Control System: Continious PU Line Control System
Power(w): 4 Kw
High Light:

pu sandwich panel machine

,

continuous sandwich panel production line

Product Description

Rolling shutter slat roll former for PU insulated sandwich production line

Quick Detail:

  1. Thickness : 0. 4-0.6mm
  2. Material : Galvanized steel
  3. Input width : as per request
  4. Material weight: 1.5tons
  5. Driven way: by 4Kw driven motor

Machine list:

  1. 1.5MT*300mm driven un-coiler
  2. Roll forming machine

General instruction:

PU rolling shutter slat production line had been originally innovated to produce roller shutter slats (insulated with PU or polyurethane) used as roller shutter doors or windows blinds for European markets.

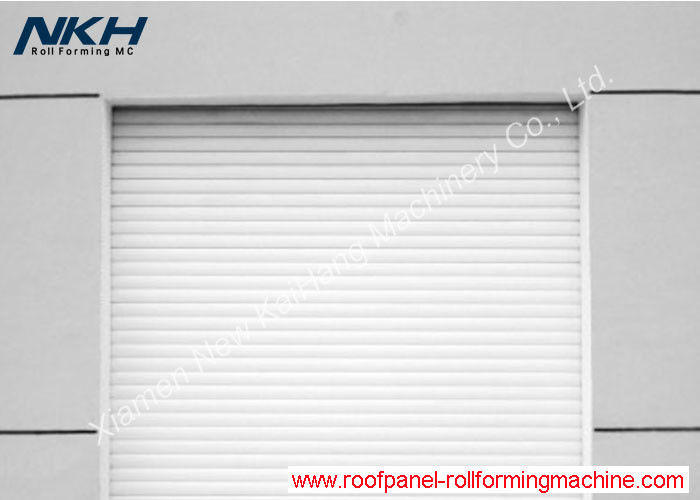

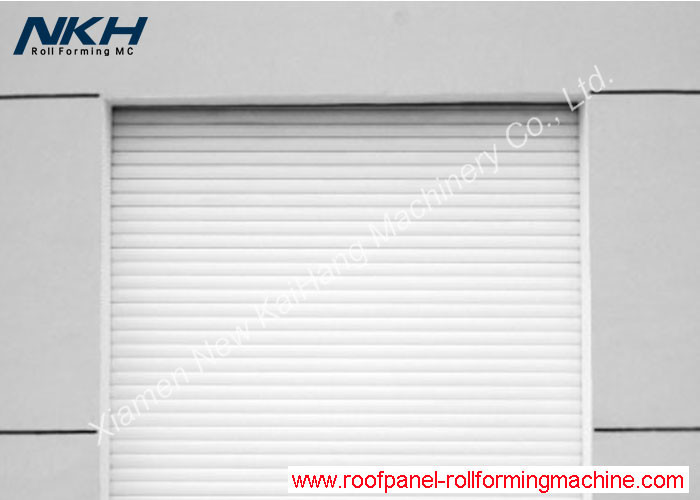

A roller shutter, roller door or sectional overhead door is a type of door or window shutter consisting of many horizontal slats (or sometimes bars or web systems) hinged together. The door is raised to open it and lowered to close it. On large doors, the action may be motorized. It provides protection against wind and rain. In shutter form, it is used in front of a window and protects the window from vandalism and burglary attempts.

So, as a roll forming supplier, normally, we only provide roll former to the buyer for continuous PU production lines

Description/Technical Parameter details of complete line:

  • 1.5TX300mm Driven Un-Coiler

                   Link-connect expanding system

                   Coil Width= Max.300mm

                   Load capacity= Max.1.5Ton

                   Coil inner–diameter=420-550mm

                   Outside-diameter: Max. 1600mm

                   Retarding Motor to turn the coil, Motor: 1.5KW, frequency speed control

  • Roll forming machine with cutting details as below table :
Suitable roll forming material galvanized steel sheet
Thickness 0.4mm-0.6mm
Carriage Frame design Wall-plate-frame-design
Roll forming stages 14 stages
Material of forming roller 45#, heat treatment, hard chrome coated
Shafts Diameter Φ65mm
Main motor power 4Kw with reducer
Line speed of roll former 15mtr per min
Electric Voltage Standard 415V/50Hz/3PH or requirements
Major Color of Machine Painted RAL 5015(Blue) or customized

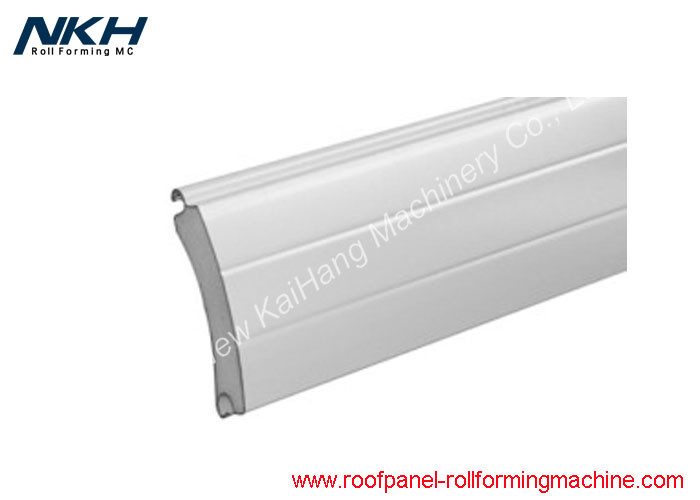

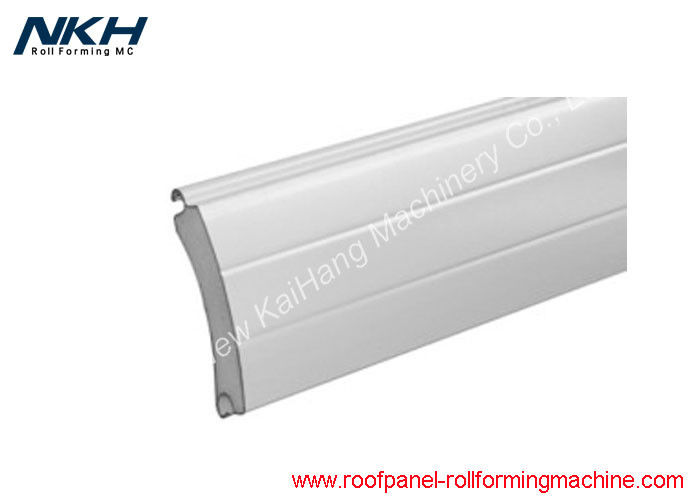

Profile Drawing/Layout/Equipment reference pictures: 4 Kw Sandwich Panel Roll Forming Machine PU Rolling Shutter Slats Roll Forming Machine 04 Kw Sandwich Panel Roll Forming Machine PU Rolling Shutter Slats Roll Forming Machine 1
