Professional Hydraulic Plate Bending Machine 4 Meter Long CNC Folding / Slitting Machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: 4meter
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 UNITS/MONTH

Detail Information

Name: CNC Hydraulic Press Brake Manufacturer Raw Material: GI/PPGL/PPGI, G245-550
Width: 1250mm Control System: PLC Control System
Hydraulic Group: 7.5Kw Thickness: 0.4mm-1.0mm
High Light:

cnc hydraulic press brake manufacturer

,

hydraulic plate bending machine

Product Description

4 meter long CNC folding/ bending/ slitting machine,hydraulic plate bending machine



Application:

Roll forming machines are one of the most equipment applied in metal fabrication industry; however, metal sheet bending and cutting machine cannot be replaced for making some kinds of products.

Metal sheet bending machine (known as metal sheet folding machine as well) and metal sheet cutting machine (named as metal sheet shearing machine also) are working under hydraulic power driving but controlled manually, mostly by foot control.

Quick Detail:

  1. Thickness : 0.4-1.0mm
  2. Material : PPGI/GI/stainless steel/copper alloy, 245-550Mpa
  3. Driven motor : by Servo motor for high precision
  4. Bending : by hydraulic group
  5. Control way: NC

Description/Technical Parameter details of complete line:

  • The bending/folding machine details as below table :
Servo motor 0.82Kw servo motor
Feeding width 1000mm
Working length 4000mm
Pressure clamp 5 units
Weight 3000kgs
Pressing power 7.5Kw
Bending range 0-120 degree
Depth of throat 1000mm
Hinge 5 groups
Slitting material Cr12Mov, heat treatment
Total power 7.5KW+1.1KW+0.82KW
Electric Voltage Standard 380V/50Hz/3PH or as the customer's requirements
Major Color of Machine Painted RAL 5015(Blue) or as per customer’s requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

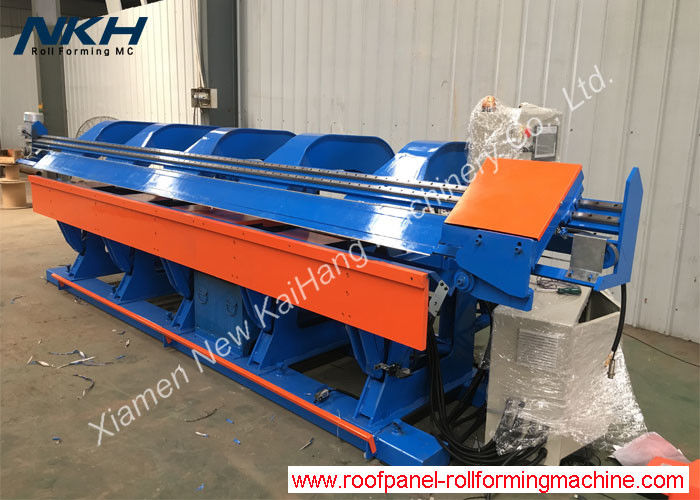

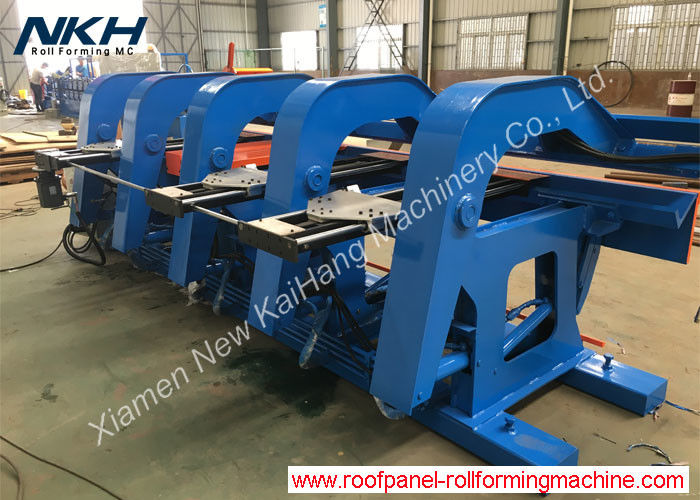

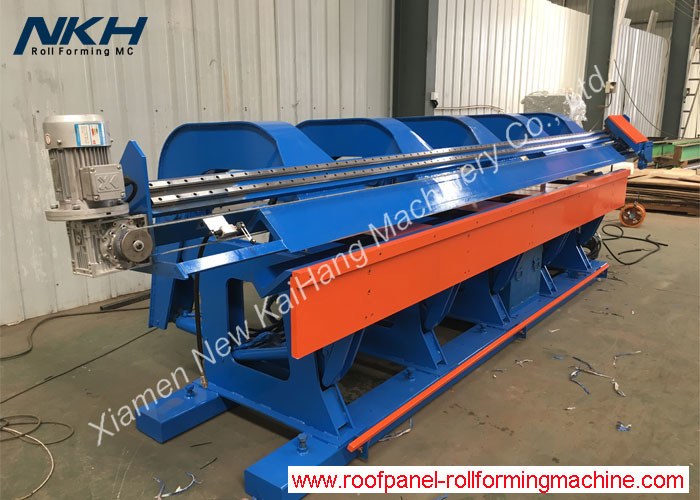

Profile Drawing/Layout/Equipment reference pictures:

Professional Hydraulic Plate Bending Machine 4 Meter Long CNC Folding / Slitting Machine 0
