Custom NC Press Brake Machine 160T×3200mm 2.0mm Metal Sheets CE Approved

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: 160T×3200
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 UNITS/MONTH

Detail Information

Raw Material: GI/PPGL/PPGI, G245-550 Pressure: 160T
Length: 3200mm Control System: PLC Control System
Servo Motor: Siemens Power: CNC
High Light:

hydraulic press bending machine

,

hydraulic plate bending machine

Product Description

100MT, Press brake, NC press brake, CNC press brake, 1.5mm thick





Features:

  1. Totally European design, streamlined looking, Monoblock, Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
  2. 200T/6000MM length type PRESS BRAKE is Equipped with the Estun user-friendly user interface, the E21 provides all main press brake functionality.
  3. Automatic tonnage and stroke adjustment for bending angles. Perfect bending results with easy angle input and operation of machine.
  4. All tubes are connected by tube inserting to avoid oil lost and burst by welding tubes.

Machine list:

  1. Hydraulic system
  2. Electrical system
  3. Synchro control system
  4. Ram and dies
  5. Back-gauge
  6. E21 NC Controller

Description/Technical Parameter details of complete line:

  • The press brake machine details as below table :
NAME SPECIFICATION
Nominal Capacity 1600
Working table length 3200
Distance betw. Colunms 2450
Throat depth 320
Max. Strokes of Slide 180
Max. Opening Height between working table and slider 440
Main motor power 11Kw
Tooling for angle bending 90 degree/30 degree



Profile Drawing/Layout/Equipment reference pictures:

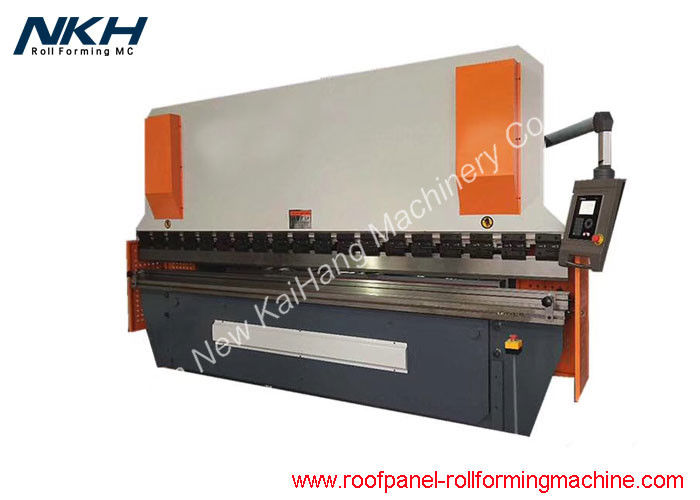

Custom NC Press Brake Machine 160T×3200mm 2.0mm Metal Sheets CE Approved 0
