High Performance Automatic Roll Forming Machine / Steel Roof Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX44-130-910
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 UNITS/MONTH

Detail Information

Name: CNC Roll Forming Machine Weight: 5T Or As Per Request
Control System: PLC Control System Roller Material: 45# Steel, CNC Lathes, Hard Chrome Coated
Raw Material: GI, Alu-zinc Sheets, 345Mpa As Normal Shaft Diameter: 95mm
Cutting Blade Material: Cr12, Heat Treatment
High Light:

metal deck roll forming machine

,

floor tiles making machine

Product Description

Metal steel floor deck roll forming machine, steel roof deck automatic roll forming machine



Application:

There are many standard metal deck or steel deck profiles that a steel deck roll forming machine is technically capable to produce, and these deck sheets are widely used in a variety of applications. Steel deck roll forming machines have been designed for the production of various types of metal decks which are usually applied for roofing and floor industries, and sometimes for bridge construction as well.

Quick Detail:

  1. Thickness : 0.8-1.2mm or 0.8-1.5mm
  2. Material : Galvanized sheets normally, G350-550
  3. Input width : 1220mm
  4. Effective width: 910mm
  5. Material weight : 5tons, 6tons, 7tons, 8 tons, 10tons
  6. Coil inner diameter : 510mm+/-+30mm
  7. Driven way: by driven motor
  8. Cutting way: by hydraulic group
  9. Cutting tolerance : ±1mm

Machine list:

  1. 5Tons Hydraulic De-coiler
  2. Roll forming machine
  3. Hydraulic cutting device
  4. Run out table or automatic stacking device
  5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler with/without coil car

Hydraulic system expand coil inner hole, Pump motor: 3KW

Frequency Inverter to regulate turning speed, Motor: 3KW

Inverter brand: TAIWAN Delta brand

Coil Inner-diameter=510+/-30mm

Coil width = Max.1250mm

Taper wedge expand type

Load capacity = Max. 5Tons

Snubber arms on top by pneumatic or hydraulic as per order

The coil car included or exclude as per order

  • Roll forming machine with cutting details as below table :
Suitable roll forming material GI/Alu-Zinc sheets
Thickness 0.8mm-1.2mm/1.5mm
Coil input width 1220mm
Carriage Frame design

Wall-plate-frame-design

Wall plate thickness 18mm

Roll forming stations 28 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ95mm
Main motor power 15Kw*2 with reducer or higher
Roll forming speed 15 m/min as standard design
Hydraulic group power 5.5 Kw
Material of cutting blade Cr12, hear treatment
Cutting design After cut-off, there is waste
Electric Voltage Standard 415V/50Hz/3PH or as per request
Major Color of Machine Painted RAL 5015(Blue) or as requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, 3 units

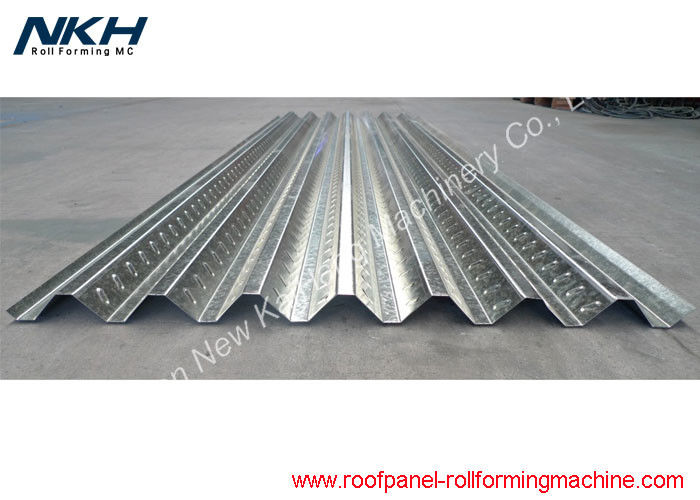

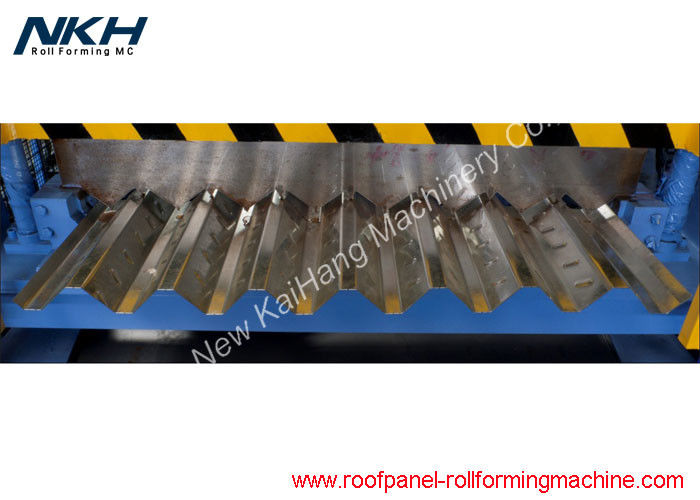

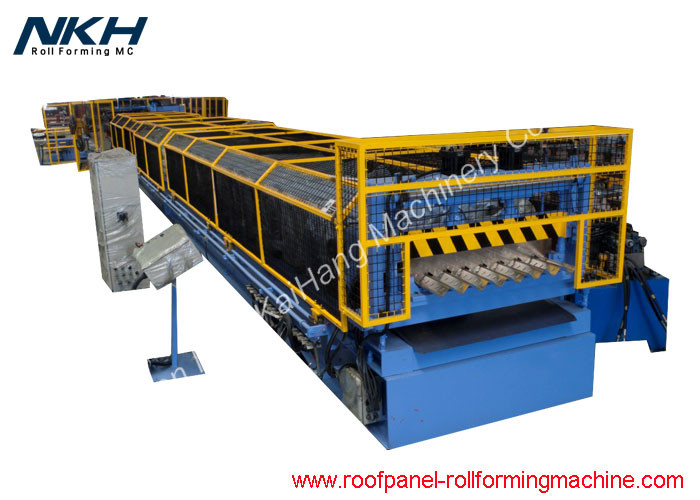

Profile Drawing/Layout/Equipment reference pictures:
