U Shape Shelf G350 Upright Roll Forming Machine 75mm Shaft​



Upright Roll Forming Machine Quick Detail:

  1. Thickness : 1.0-2.0mm
  2. Material : GI/G350
  3. Driven way: by driven motor
  4. Cutting way: by hydraulic power pack
  5. Cutting tolerance : ±1mm

Upright Roll Forming Machine  Application:



Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company



Upright Roll Forming Machine list:

  1. Un-coiler with pre-leveling(2 in 1)
  2. Professional lubrication device
  3. Auto servo feed in device
  4. Presser
  5. Punching tools
  6. Roll former
  7. hydraulic cutting device
  8. no power Rack
  9. PLC control systems

Description/Technical Parameter details of complete line:

  • 2 Tons Hydraulic Un-coiler with pre-leveling device

Hydraulic system to expand coil inner hole, four palms

Motorized driving coil rotation, auto stop/start control, 2.2KW

Load capacity=2Ton

Coil width: 200mm

Coil Inner-diameter: Φ510±30mm

  • Professional Lubrication device

Equipped between the roller feeder and the press

Lubrication for punching tools and the roll former

  • Auto Feed in Device

Strip width: Max. 200, thickness: 1.5-2.0mm

Servo motor: YASKAWA, 1.3KW

  • Presser

Capacity: 80 tons

Chinese Brand: YANGLI

Items Specification unit Parameters
1 Nominal Capacity Kn 800
2 Nominal stroke mm 5
3 Slide stroke mm 140
4 SPM(Variable Option) Min-1 50-70
5 Max. Die height mm 320
6 Die height adjustment mm 80
7 Between slide center and frame mm 300
8 Bloster(FB×LR) mm 580×1000
9 Bolster thickness mm 120
10

Bed opening

(FB×LR)

 mm 390×520
11 Slide area(FB×LR) mm 420×560
12 Shank hole(Dia.×depth) mm 50×80
13 Between columns mm 640
14 Motor Power Kw 7.5
  • Roll Forming machine

Wall plate frame design, thickness of wall plate is 18mm

18 stages to form

Rollers manufactured from Cr12, heat treatment

Shafts Diameter=ф75mm

Main motor =11KW

  • Hydraulic cutting device

Stop to cut

After cut off, there are 8mm material waste

  • PLC Control System

Siemens brand PLC and touch screen, Schneider brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Run-out Rack

3 meters Length

No power

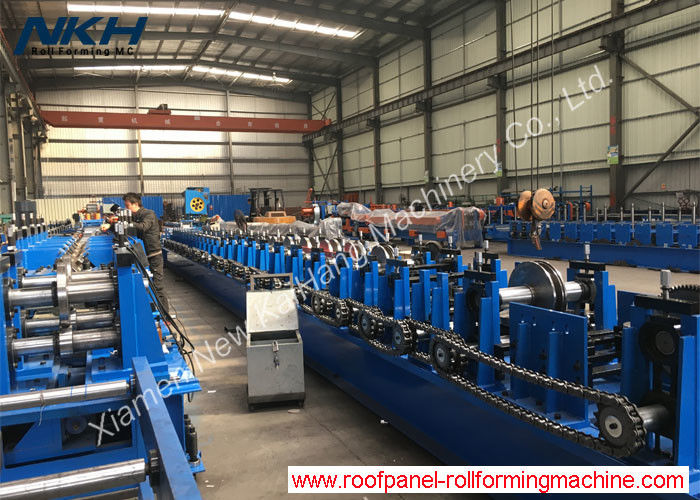

Profile Drawing/Layout/Equipment reference pictures:
