High Efficiency Steel Sheet Forming Machine , Corrugated Sheet Making Machine
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NKH MACHINERY |
| Certification: | CE/SONCAP |
| Model Number: | YX18-76-760 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 01 |
| Price: | Negotiation |
| Packaging Details: | NUDE CARGOES |
| Delivery Time: | 50 workding days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 05 units/month |
|
Detail Information |
|||
| Name: | Corrugated Metal Roofing Machine | Weight: | 5T Or As Request |
|---|---|---|---|
| Raw Material: | Pre-Painted Sheets | Shaft Material: | 45#, High Precision |
| Control System: | PLC Control System | Roller Material: | 45# Steel |

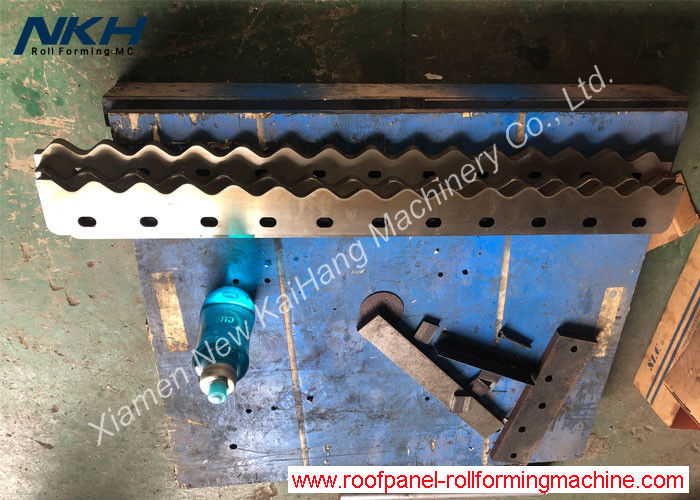

| Cutting Blade Material: | Cr12, Heat Treatment | Usage: | Steel Construction |
| High Light: | Prepainted Roof Panel Roll Forming Machine,Roof Panel Roll Forming Machine,Roof Panel Roll Former |
||
Product Description
15-20m/min Roof Panel Roll Forming Machine Pre-Painted Sheets , 760 Corrugated Panel, 550Mpa, 0.2mm
Product parameter
| 1 | Style | used metal roof panel roll forming machine |
| 2 | Machine dimension (mm) | 9500*1500*1200 |
| 3 | Total wight (Kg) | 7500 |

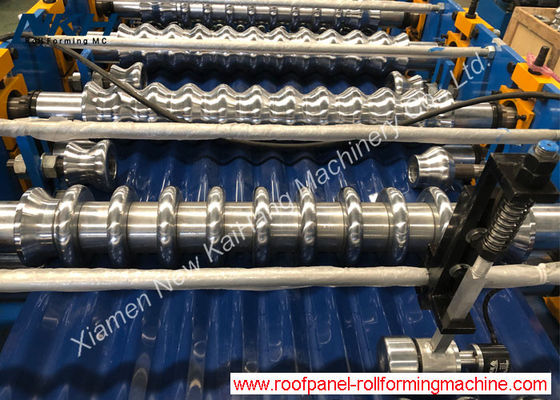

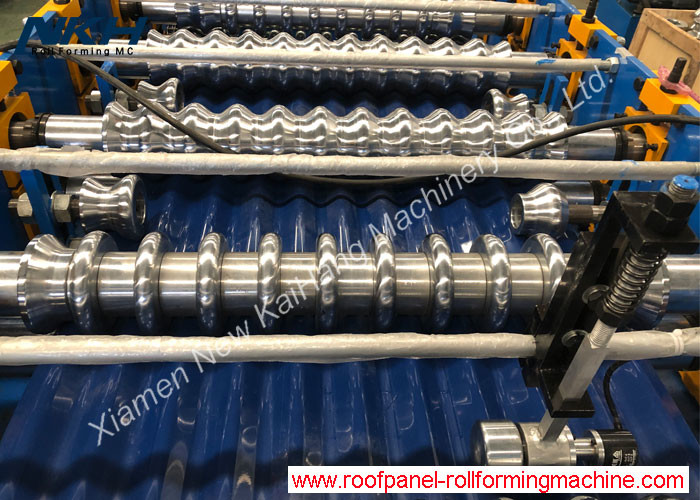

| 4 | Forming steps | 18 rows |
| 5 | Forming speed (m/min) | 15-20 |
| 6 | Hydraulic station power(Kw) | 4 |
| 7 | Diameter of shaft (mm) | 75 |
| 8 | Hydraulic pressure(MPa) | 12 |
| 9 | Electric condition | 220V/3Phase/ 60HZ |
| 10 | Suitable to process | Color steel plate(G550) |
| 11 | Decoiler max capacity (Kgs) | 5000 |
| 12 | Control system | PLC |
| 13 | Raw material thickness (mm) | 0.2mm |
| 14 | Effective width(mm) | 750 |
| 15 | Material width(mm) | 1000 |
| 16 | Main application |
roof |
Main Features
Name:PLC
Siemens PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
Name: Pump
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:4kw
Hydraulic oil :40#
Equipment components:

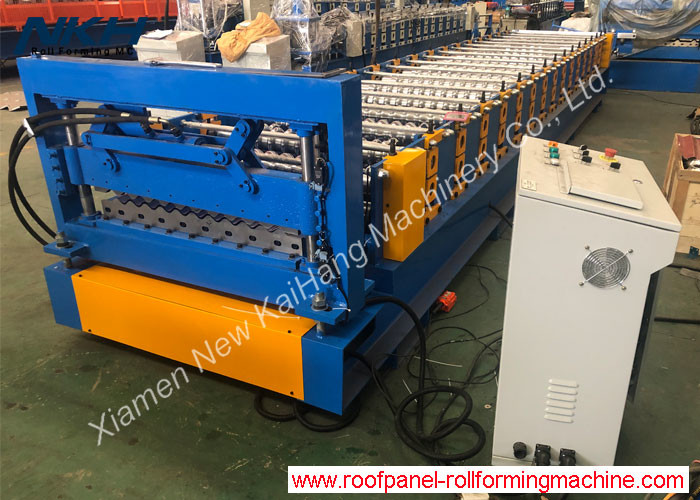

Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting.
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
