CSA Angle Cut 0.4mm Roof Panel Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX28-205-820
Payment & Shipping Terms:
Minimum Order Quantity: 01
Price: Negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Corrugated Metal Roofing Machine Weight: 5T Or As Request
Raw Material: Pre-Painted Sheets Shaft Material: 45#, High Precision
Control System: PLC Control System Roller Material: 45# Steel
Cutting Blade Material: Cr12, Heat Treatment Usage: Steel Construction
High Light:

0.4mm Roof Panel Roll Forming Machine

,

CSA Roof Panel Roll Forming Machine

,

Roof Panel Roll Forming Machine

Product Description

245-550Mpa High Precision Roof Panel Roll Forming Machine Steel Construction





Product parameter



Suitable material Color steel sheet , galvanized steel sheet,
Main motor power 7.5KW with Cycloidal reducer
Hydraulic station power 4KW
Hydraulic oil 36#
Thickness of material 0.4mm~0.8mm
Diameter of principal axis Φ70mm
Material expand width 1000mm-1250mm
Electric tension 380V 3phase 50HZ or as the customer's requirements
Material of roller High grade 45# forged steel
Rolling galvanization thickness 0.03mm
Processing speed 25m/min
Processing precision within 1.00mm
Material of cutting blade Cr12 mould steel with quenched treatment
Kind of drive 0.6 inch chain link bearing model 6210
Roller station 18 Rollers





Material:

1) Suitable Coil Thickness: 0.4-0.8 mm

2) Suitable Raw Material: Galvanized steel sheet

2. The equipment including

5T hydraulic decoiler with coil car 1 set

Electric tape angle cutting  machine 1 set

Main forming machine 1set

Cutting machine 1 set

Electrical control box 1 set



Main Features



1. This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2. Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

3. Fully Automatic Control System with PLC.

4. Easy operation: Key in the length and quantity on the control panel.

5. One year warranty.

6. we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

7. One roll forming machine only can produce one profile.

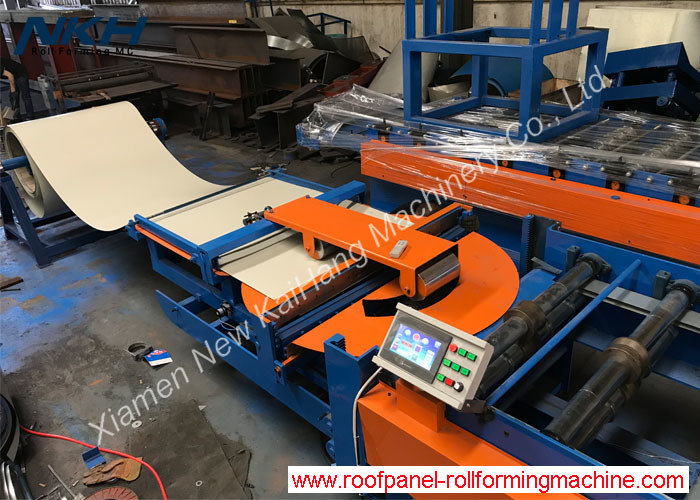

CSA Angle Cut 0.4mm Roof Panel Roll Forming Machine 0

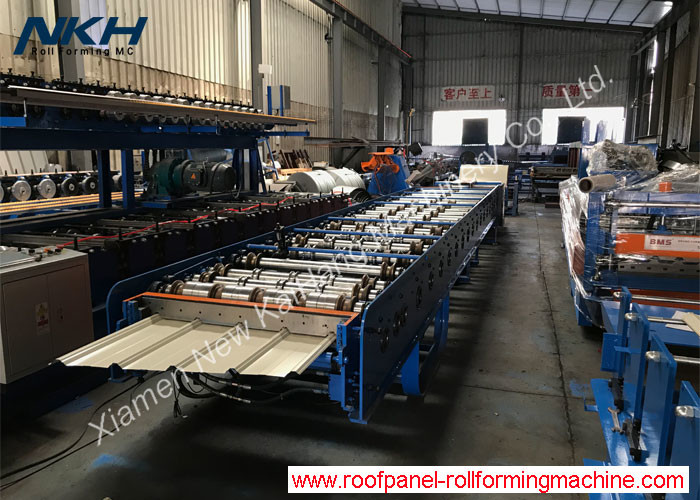

CSA Angle Cut 0.4mm Roof Panel Roll Forming Machine 1
