High Precision Hydraulic Press Bending Machine , Hydraulic Slitting Folder

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: 6meter
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 UNITS/MONTH

Detail Information

Name: Cnc Hydraulic Press Brake Bending Machine Raw Material: GI/PPGL/PPGI, G245-550
Thickness: 0.4mm-1.0mm Width: 1250mm
Servo Motor: Siemens Hydraulic Group: 7.5Kw
High Light:

cnc hydraulic press brake manufacturer

,

hydraulic press bending machine

Product Description

High precision hydraulic slitting folder for 6 meter long metal sheets, hydraulic press bending machine



Application:

Cold roll forming machines are the best choice for the continuous and automatic production of cold formed metal products, and people always support for hydraulic bending machine when they have needs for producing a few pieces of simple bending products, like small hat channels, a ridge cap, c/z/u channels etc, and when they don’t have the correct sizes of steel strips (steel strip widths or lengths), hydraulic cutting machine is what they can use.

Quick Detail:

  1. Thickness : 0.4-1.0mm
  2. Material : PPGI/GI/stainless steel/copper alloy, 245-550Mpa
  3. Driven motor : by Servo motor for high precision
  4. Bending : by hydraulic group
  5. Control way: NC

Description/Technical Parameter details of complete line:

  • The bending/folding machine details as below table :
Servo motor 0.82Kw servo motor
Feeding width 1000mm
Working length 6000mm
Pressure clamp 7 units
Weight 4500kgs
Pressing power 7.5Kw
Bending range 0-120 degree
Depth of throat 1000mm
Hinge 7 groups
Slitting material Cr12Mov, heat treatment
Total power 7.5KW+1.1KW+0.82KW
Electric Voltage Standard 380V/50Hz/3PH or as the customer's requirements
Major Color of Machine Painted RAL 5015(Blue) or as per customer’s requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

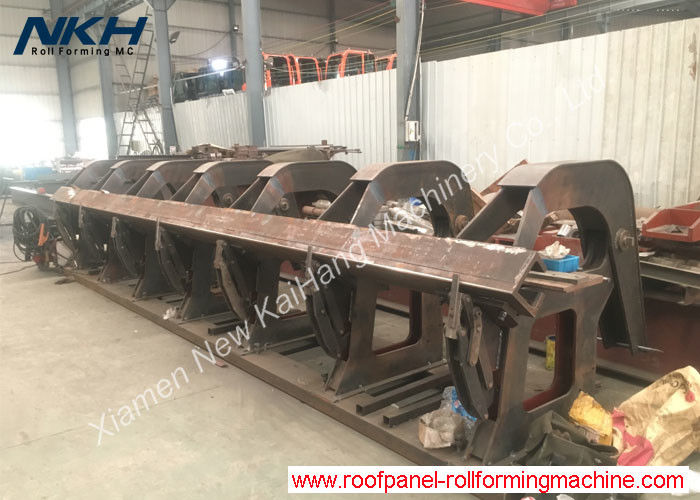

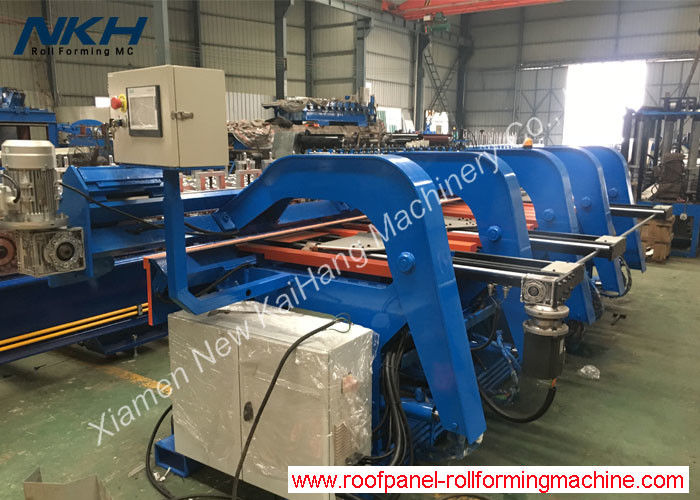

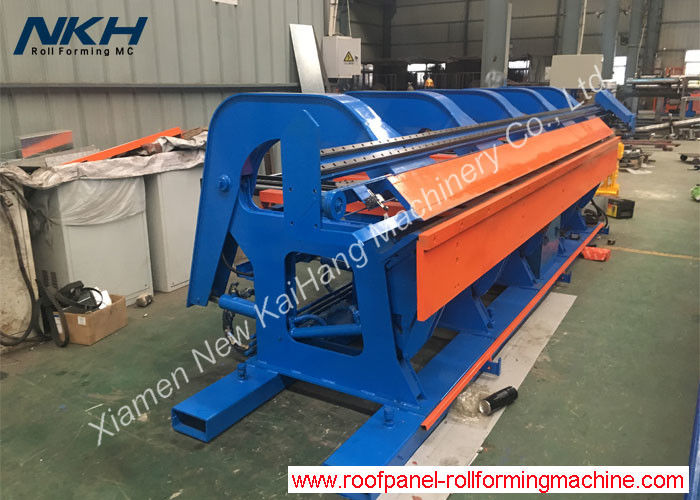

Profile Drawing/Layout/Equipment reference pictures:

High Precision Hydraulic Press Bending Machine , Hydraulic Slitting Folder 0
