Roller Shutter Door Panel Roll Forming Machine ,Steel Door Frame Manufacturing Machines

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: YX117
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH

Detail Information

Name: Rolling Door Roll Forming Machine Raw Material: GI Sheets, G350-550
Shaft Diameter: 75mm Warranty: 12months
Roller Material: 45# Steel Cutting Blade Material: Cr12, Heat Treatment
High Light:

door frame making machine

,

door panel roll forming machine

Product Description

Roller shutter door panel roll forming machine, metal door frame sheets machine

Quick Detail:

  1. Thickness : 0.8-1.2mm
  2. Material : GI, 350Mpa
  3. Input width : 175mm
    1. Material weight: 1.5MT cap.
    2. Driven way: by 7.5Kw driven motor
    3. Cutting way: by hydraulic group
    4. Cutting tolerance : ±1mm

Features:

A steel rolling shutter door slat roll forming machine has been designed and built because of the needs for the production of steel roller shutter doors. The slats can be made out of galvanized steel strips, pre-painted steel strips and some occasions alloy aluminum strips as well. This roll forming machine is technically capable to produce roller shutter slats with any lengths available and effective widths customizable from metal with thickness 0.6-1.2mm (some customers request heavy duty rolling shutter slats up to 2mm thickness).

A steel rolling shutter slat roll forming machine has been designed to produce horizontal roller shutter door slats out of galvanized or pre-painted steel strips.

Machine list:

  1. 1.5MT*300mm manual un-coiler or driven de-coiler
  2. Roll former
  3. Hydraulic cutting device
  4. Run out rack
  5. PLC control system

Description/Technical Parameter details of complete line:

  • 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

Or Driven motor also can be included as request

  • Roll forming machine with cutting details as below table :
Suitable roll forming material galvanized steel sheet
Thickness 0.8-1.2mm
Strip width 175mm
Carriage Frame design Wall-plate-frame-design
Roll forming stages 14 stages
Roller material 45# steel, hard chrome coated
Shafts Diameter Φ75mm
Main motor power 7.5Kw with reducer
Line speed of roll former 15mtr per min
Hydraulic group power 3.0 Kw
Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or requirements
Major Color of Machine Painted RAL 5015(Blue) or customized
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack 4 meter length rolled type

Profile Drawing/Layout/Equipment reference pictures:

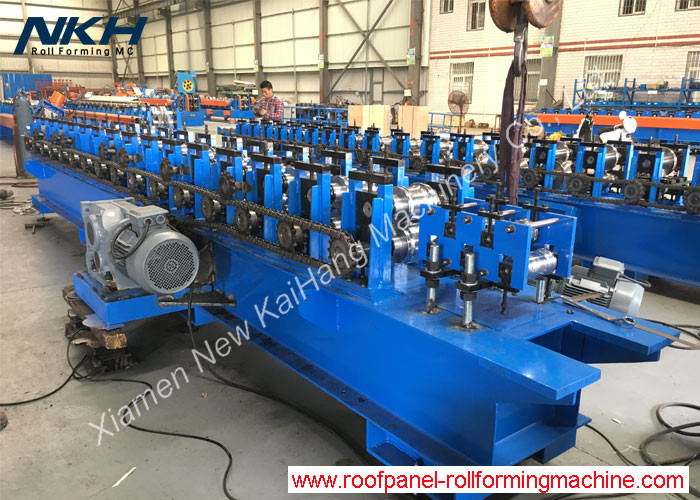

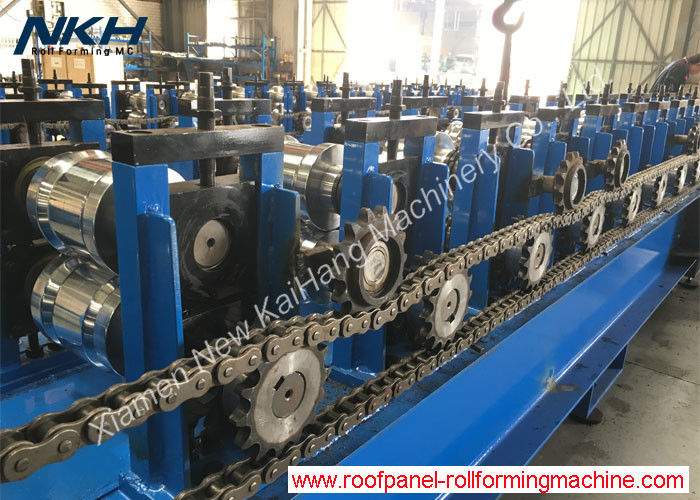

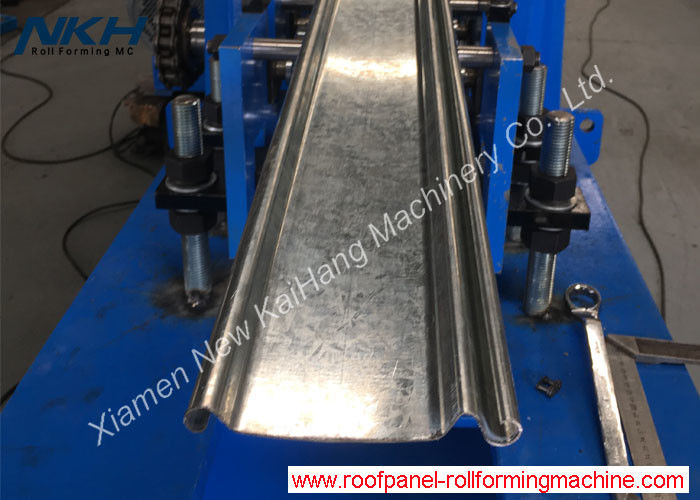

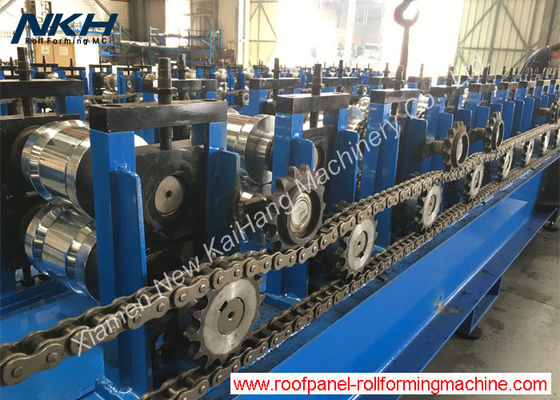

Roller Shutter Door Panel Roll Forming Machine ,Steel Door Frame Manufacturing Machines 0Roller Shutter Door Panel Roll Forming Machine ,Steel Door Frame Manufacturing Machines 1
